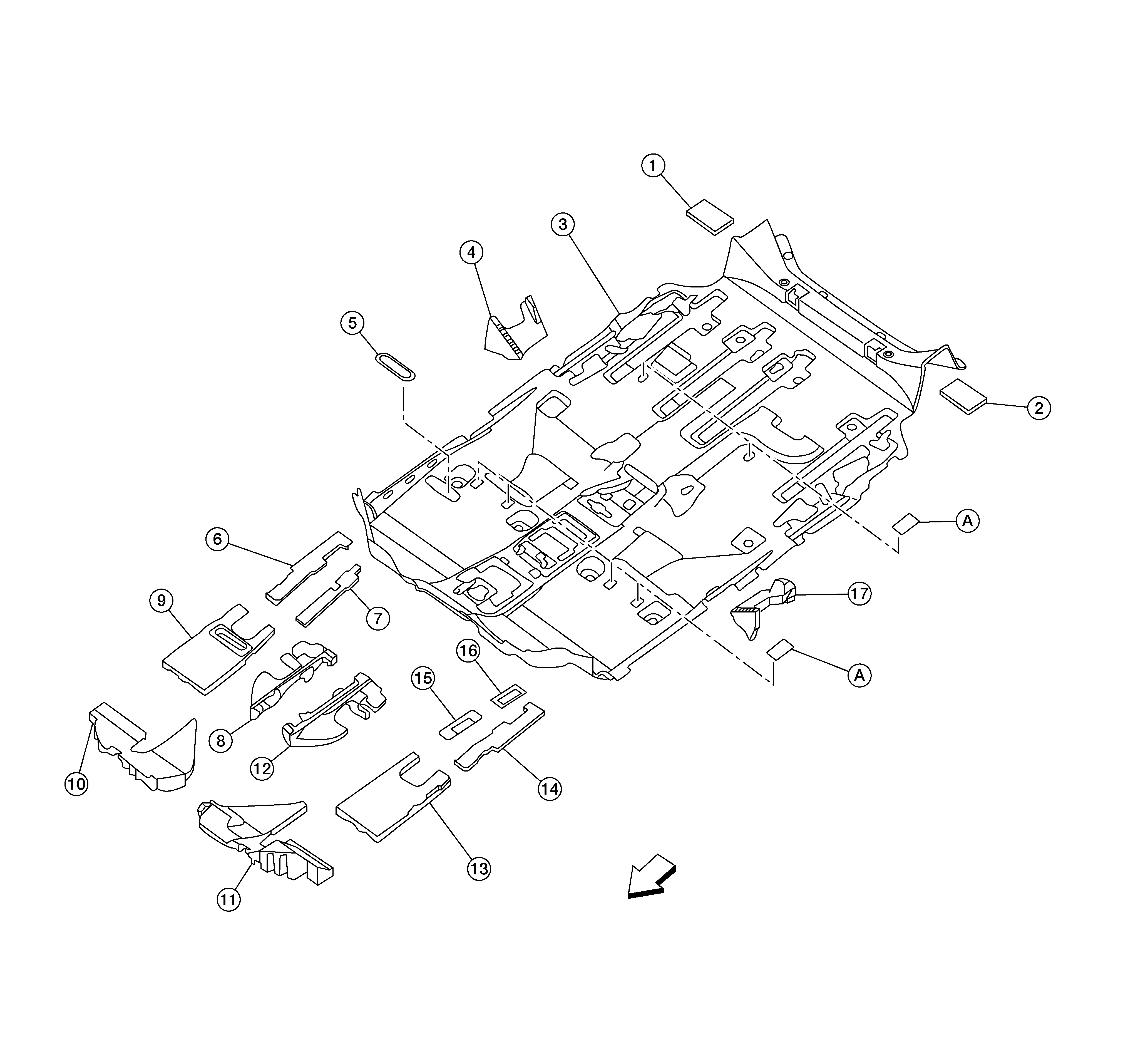

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Rear floor spacer (RH) |
2. |
Rear floor spacer (LH) |
3. |
Front floor trim |
|
4. |
Front floor insulator (RH) |
5. |
Front floor trim cover |
6. |
Front floor trim side spacer (RH) |
|
7. |
Front floor trim spacer 1 (RH) |
8. |
Front floor trim spacer front (RH) |
9. |
Floor side spacer (RH) |
|
10. |
Front floor pad assembly (RH) |
11. |
Front floor pad assembly (LH) |
12. |
Front floor trim spacer front (LH) |
|
13. |
Floor side spacer (LH) |
14. |
Front floor trim side spacer (LH) |
15. |
Front floor trim spacer 2 (LH) |
|
16. |
Front floor trim spacer 3 (LH) |
17. |
Front floor insulator (LH) |
A. |
Front floor trim bracket |
|
|
Front |
