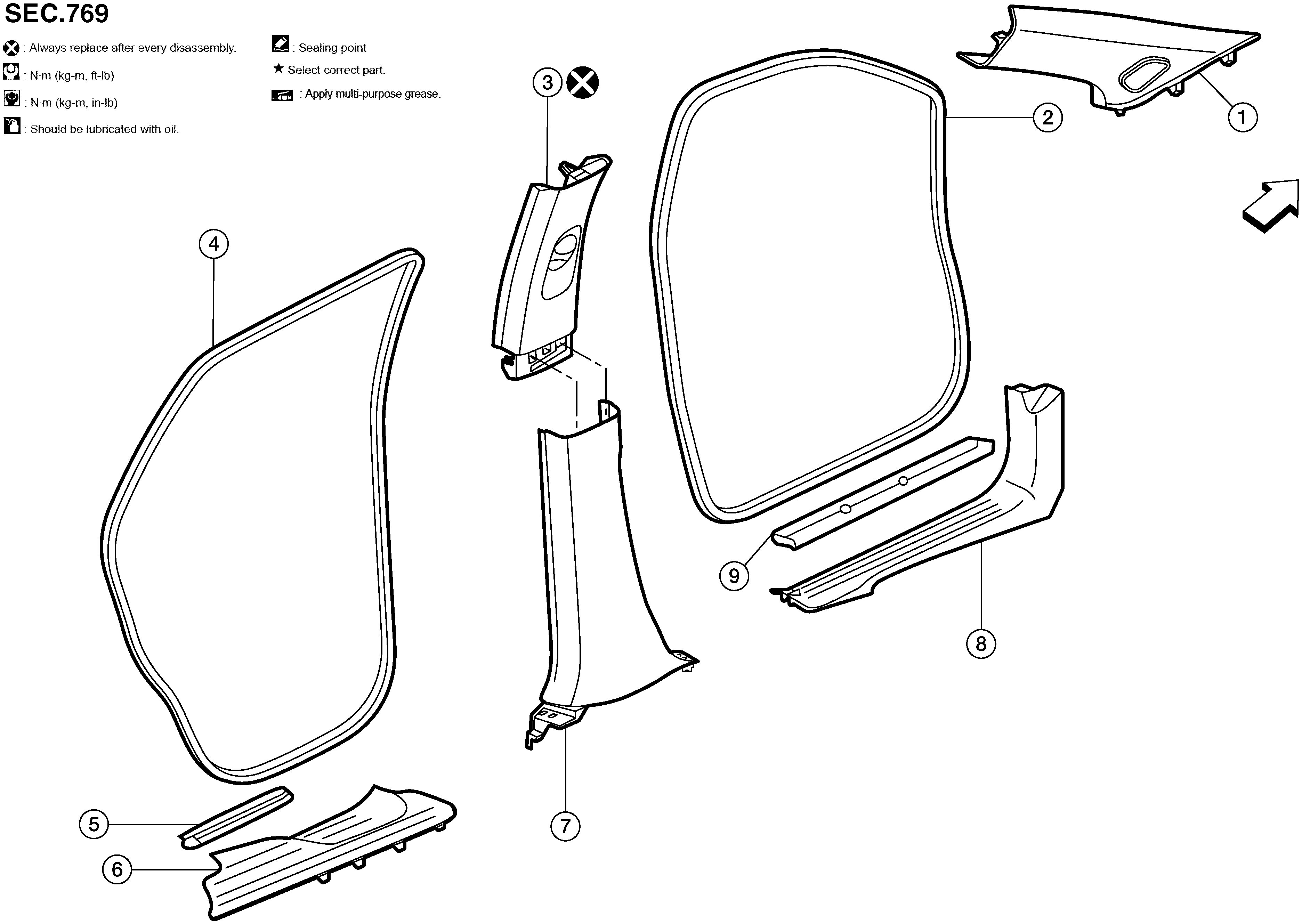

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front pillar finisher
|
2.
|
Front door welt
|
3.
|
Center pillar upper finisher
|
|
4.
|
Rear door welt
|
5.
|
Rear kicking plate outer
|
6.
|
Rear kicking plate inner
|
|
7.
|
Center pillar lower finisher
|
8.
|
Front kicking plate inner
|
9.
|
Front kicking plate outer
|
|
|
Front
|
