Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

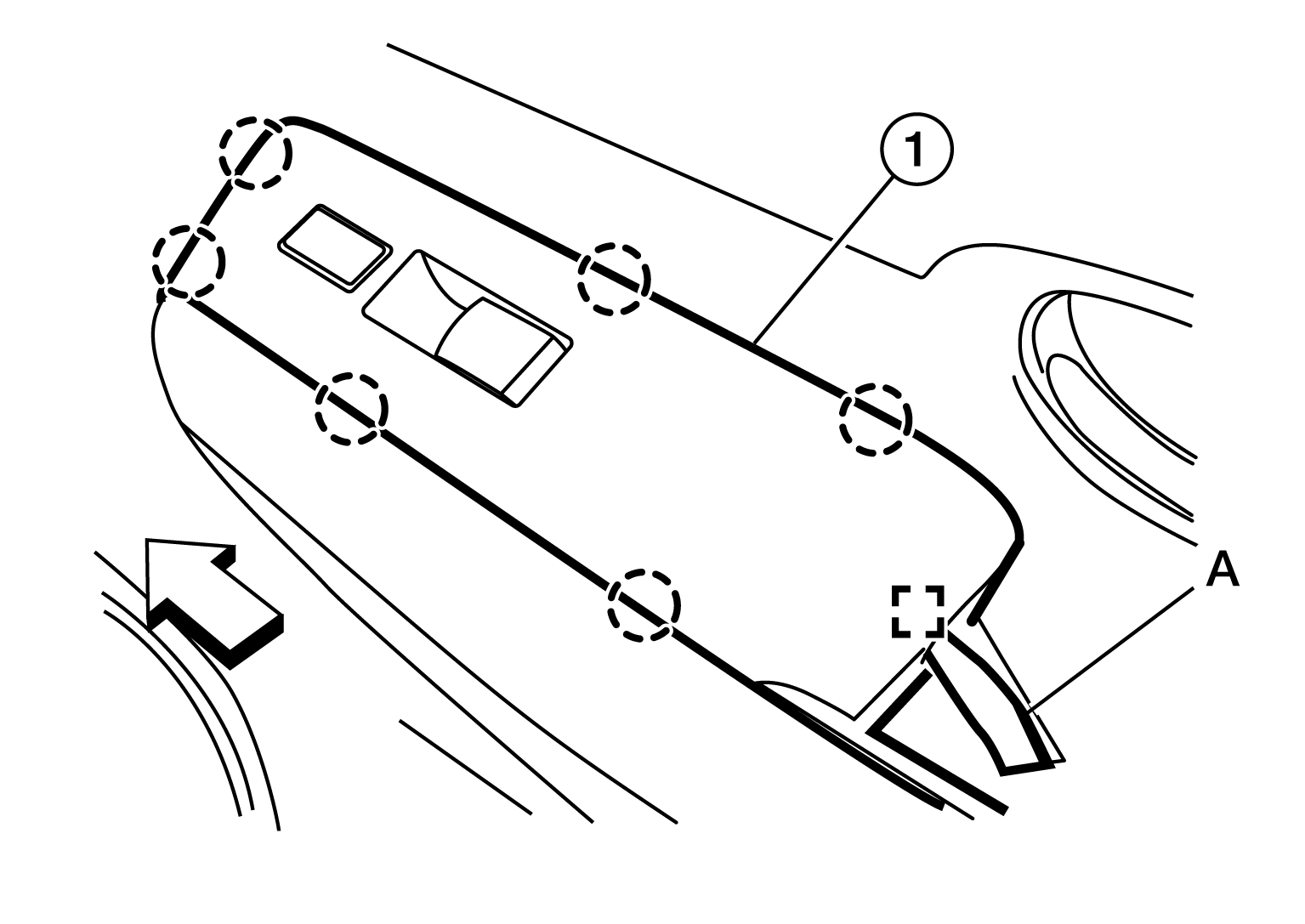

  1. Beginning at the rear edge, insert a suitable tool (A) and release the metal clip of the power window and door lock/unlock switch (RH) finisher (1).
    GNSALKIA2015Z-015Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl

    SYMBOL : Front

  2. Working forward, release the remaining pawls, then remove the power window and door lock/unlock switch (RH) finisher (1) and power window and door lock/unlock switch (RH) as an assembly from the front door finisher.
  3. Disconnect the harness connector from power window and door lock/unlock switch (RH).

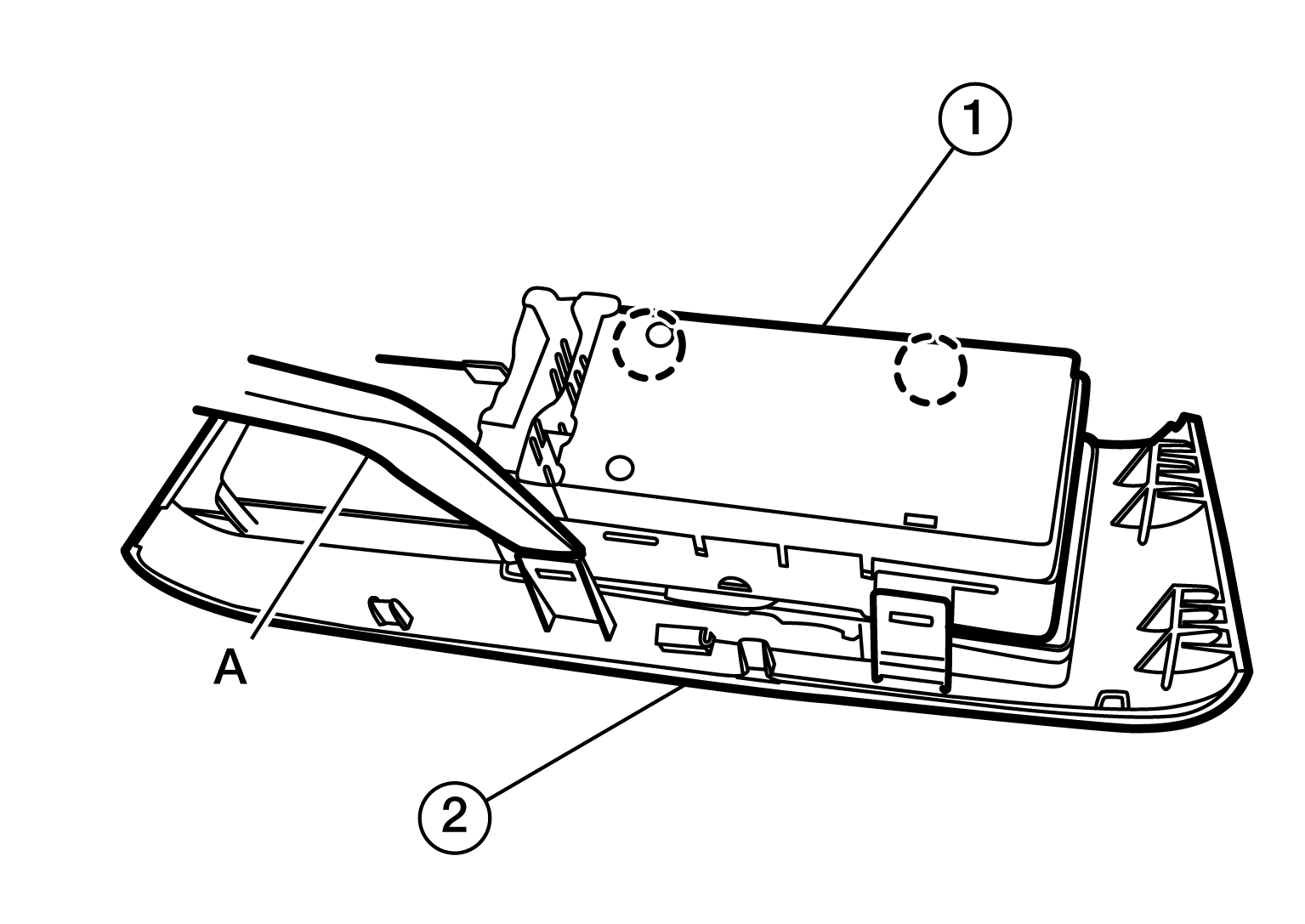

  4. Release the four pawls that retain the power window and door lock/unlock switch (RH) (1) to the power window and door lock/unlock switch (RH) finisher (2) and seperate them using a suitable tool (A).
    GNSDB115197Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
