Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

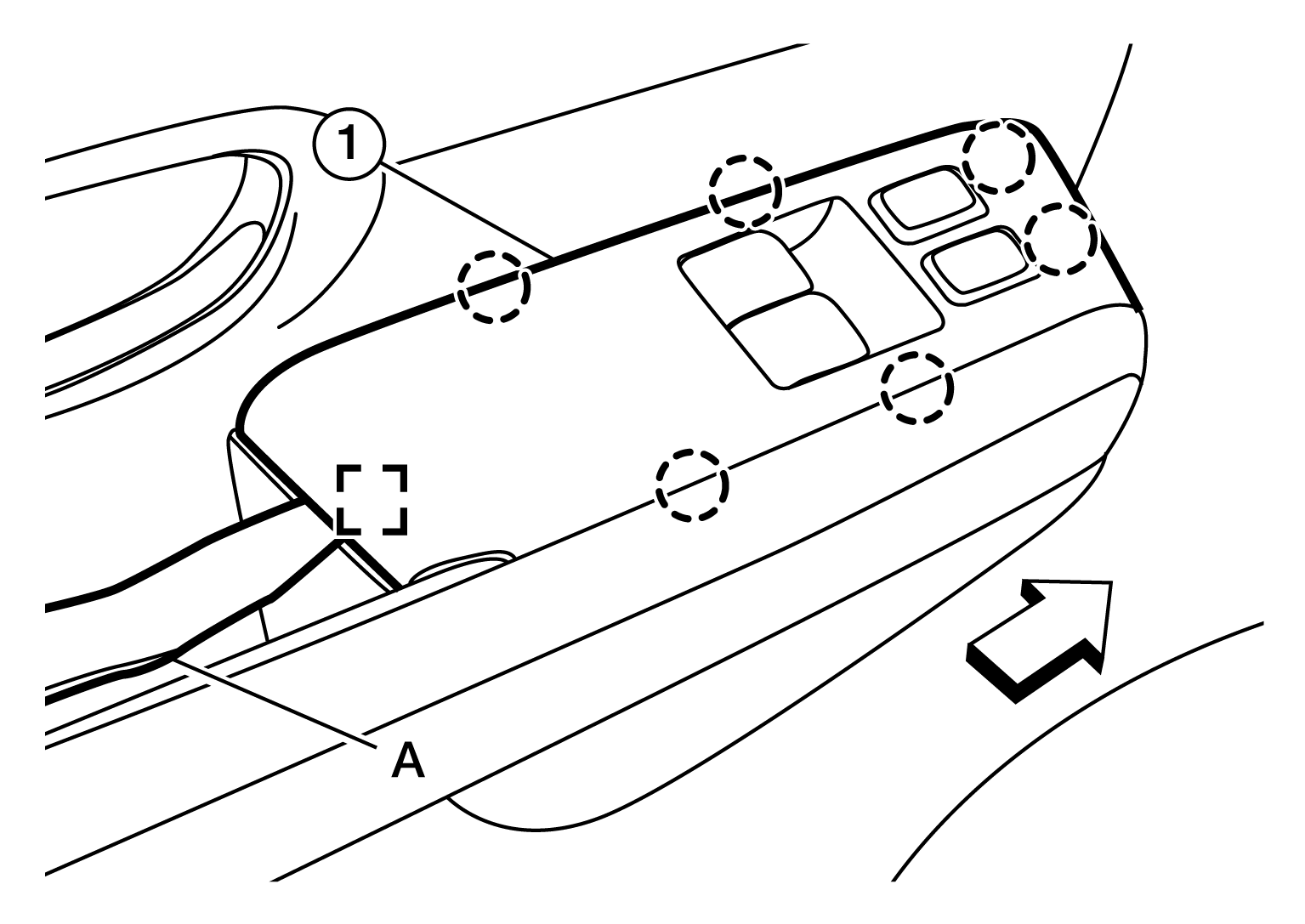

- Beginning at the rear edge, insert a suitable tool (A) and release the metal clip of the main power window and door lock/unlock switch finisher (1).
: Metal clip
: Pawl
: Front
- Working forward, release the remaining pawls, then remove the main power window and door lock/unlock switch finisher (1) and the main power window and door lock/unlock switch as an assembly from the front door finisher.
- Disconnect the harness connector from main power window and door lock/unlock switch.
- Release the four pawls that retain the main power window and door lock/unlock switch (1) to the main power window and door lock/unlock switch finisher (2) and separate them using a suitable tool (A).
