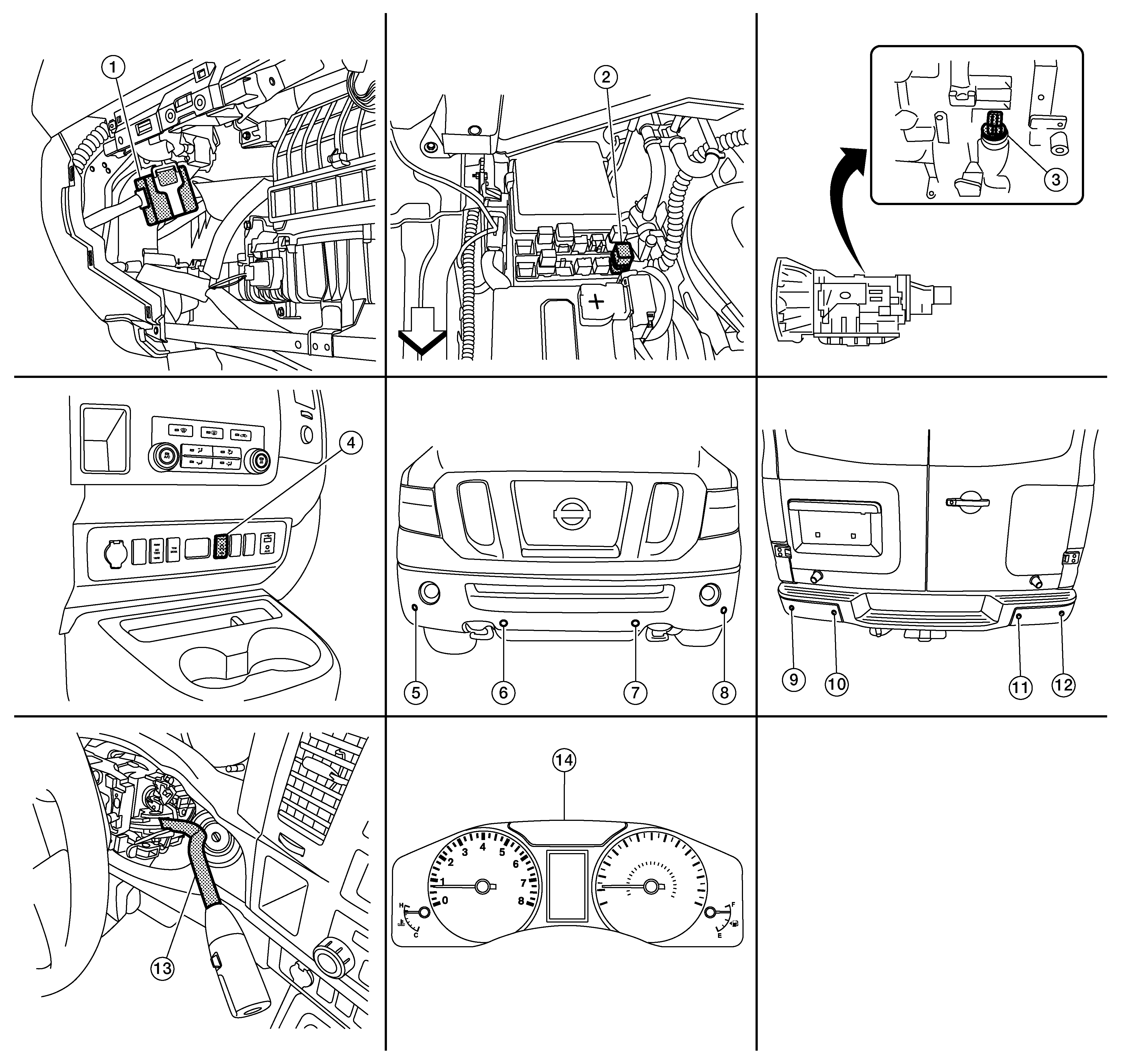

Component Parts Location
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Sonar control unit (View with glove box removed) |
2. |
Back-up lamp relay |
3. |
A/T assembly |
|||
|
4. |
Sonar system OFF switch (with sonar system OFF indicator) |
5. |
Front sonar sensor RH outer |
6. |
Front sonar sensor RH inner |
|||
|
7. |
Front sonar sensor LH inner |
8. |
Front sonar sensor LH outer |
9. |
Rear sonar sensor LH outer |
|||
|
10. |
Rear sonar sensor LH inner |
11. |
Rear sonar sensor RH inner |
12. |
Rear sonar sensor RH outer |
|||
|
13. |
A/T shift selector (View with steering column covers removed) |
14. |
Combination meter |
|
||||
