Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Beginning on the RH side of instrument panel switch carrier, release the metal clips and pawls using a suitable tool (A), then reposition the instrument panel switch carrier.
    GNSAWNIA3946Z-946Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Pawl

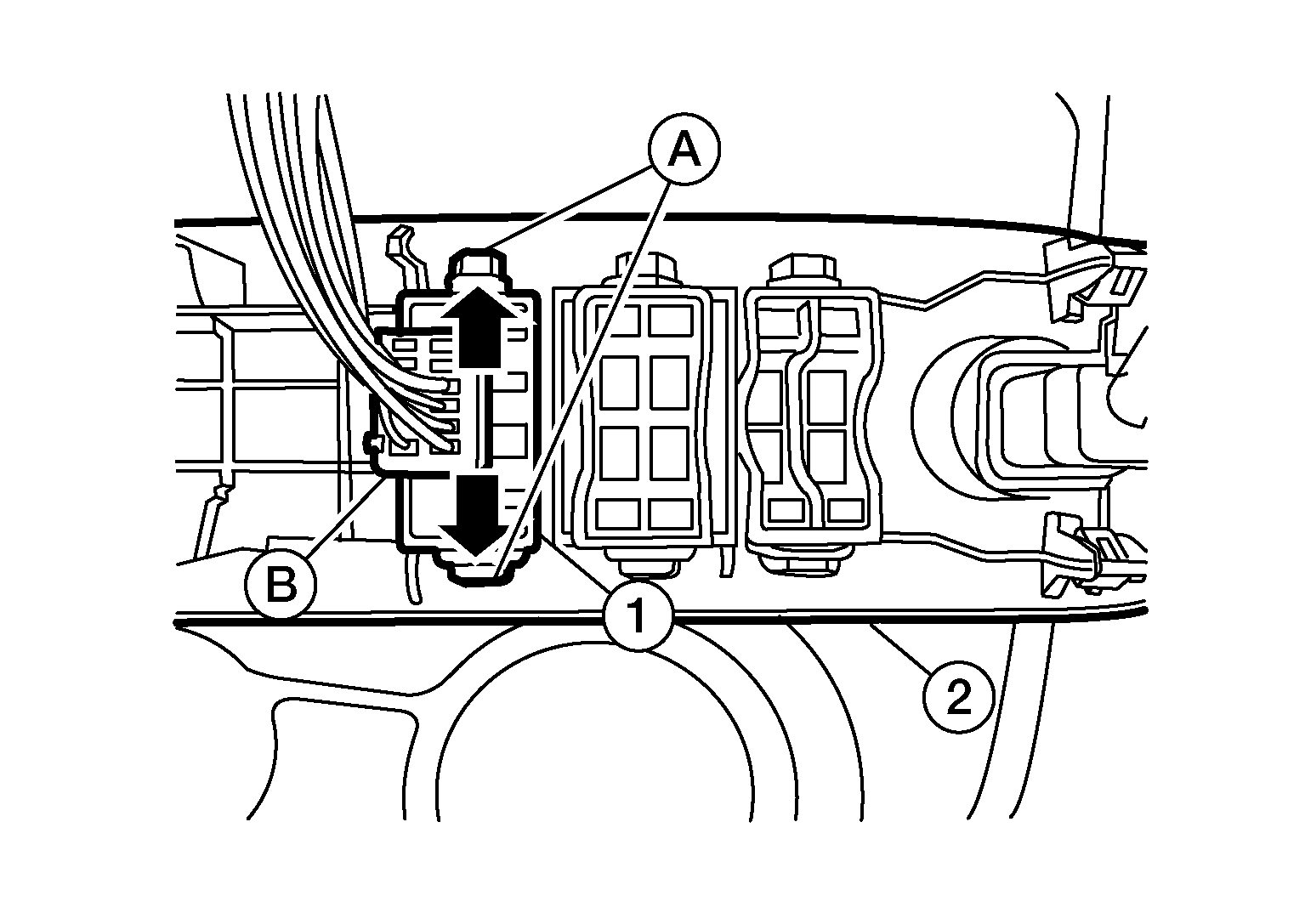

  2. Disconnect the harness connector (B) from sonar system OFF switch (1).
    GNSALNIA1285Z-285Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the sonar system OFF switch tabs (A) by pushing outward on the tabs, and remove the sonar system OFF switch (1) from the front of instrument panel switch carrier (2).
