Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument lower panel RH and glove box assembly. Refer to Removal and Installation .

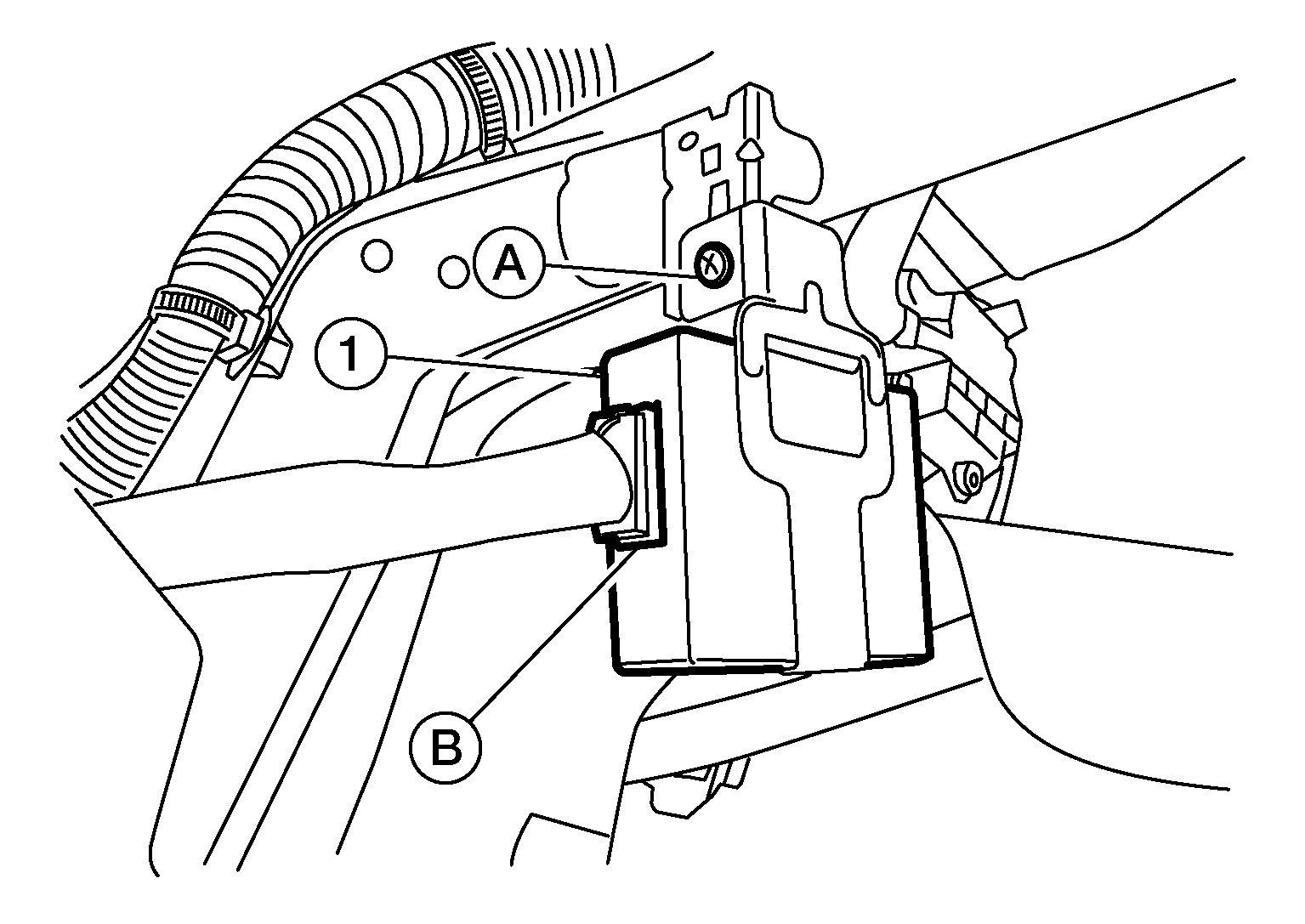

  2. Disconnect the harness connector (B) from sonar control unit (1).
    GNSALNIA1284Z-284Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the sonar control unit screw (A) and the sonar control unit (1).
