Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cowl top covers and cowl top extension brackets. Refer to Removal and Installation .
- Remove inside mirror (if equipped). Refer to Removal and Installation .
- Remove the front headlining. Refer to Front Headlining .

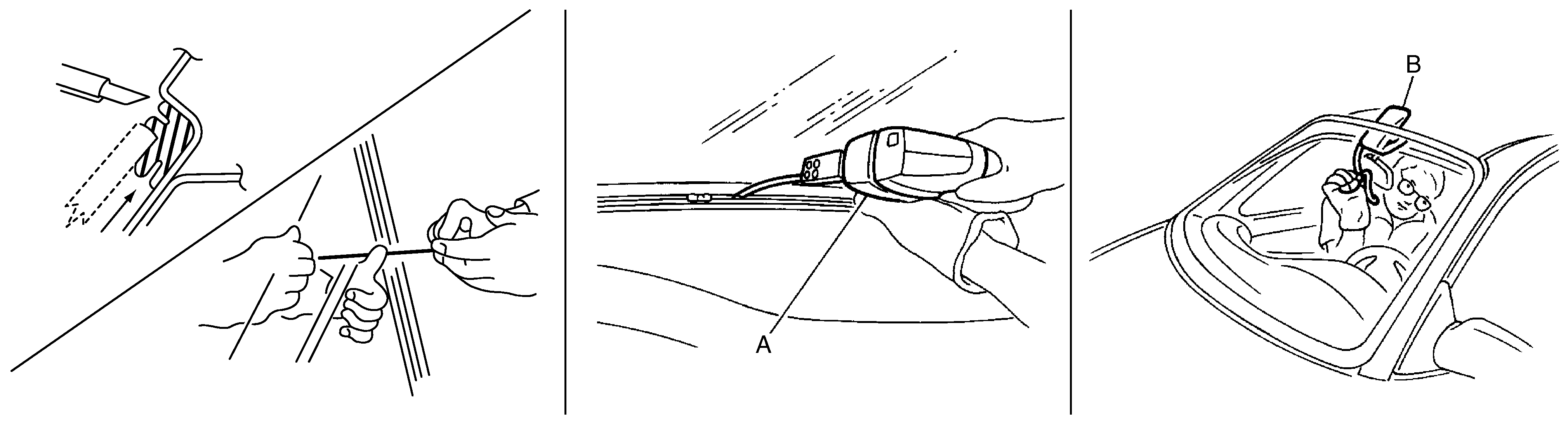

- Remove windshield glass using piano wire or power cutting tool (A) and an inflatable pump bag (B).
- Apply protective tape around the windshield glass to protect the painted surface from damage.
- If the windshield glass is to be reused, mark the body and the glass with mating marks.
WARNING: When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.CAUTION:- Be careful not to scratch the glass when removing.
- Do not set or stand glass on its edge, small chips may develop into cracks.
- Protect the painted surface around the windshield glass from damage.
