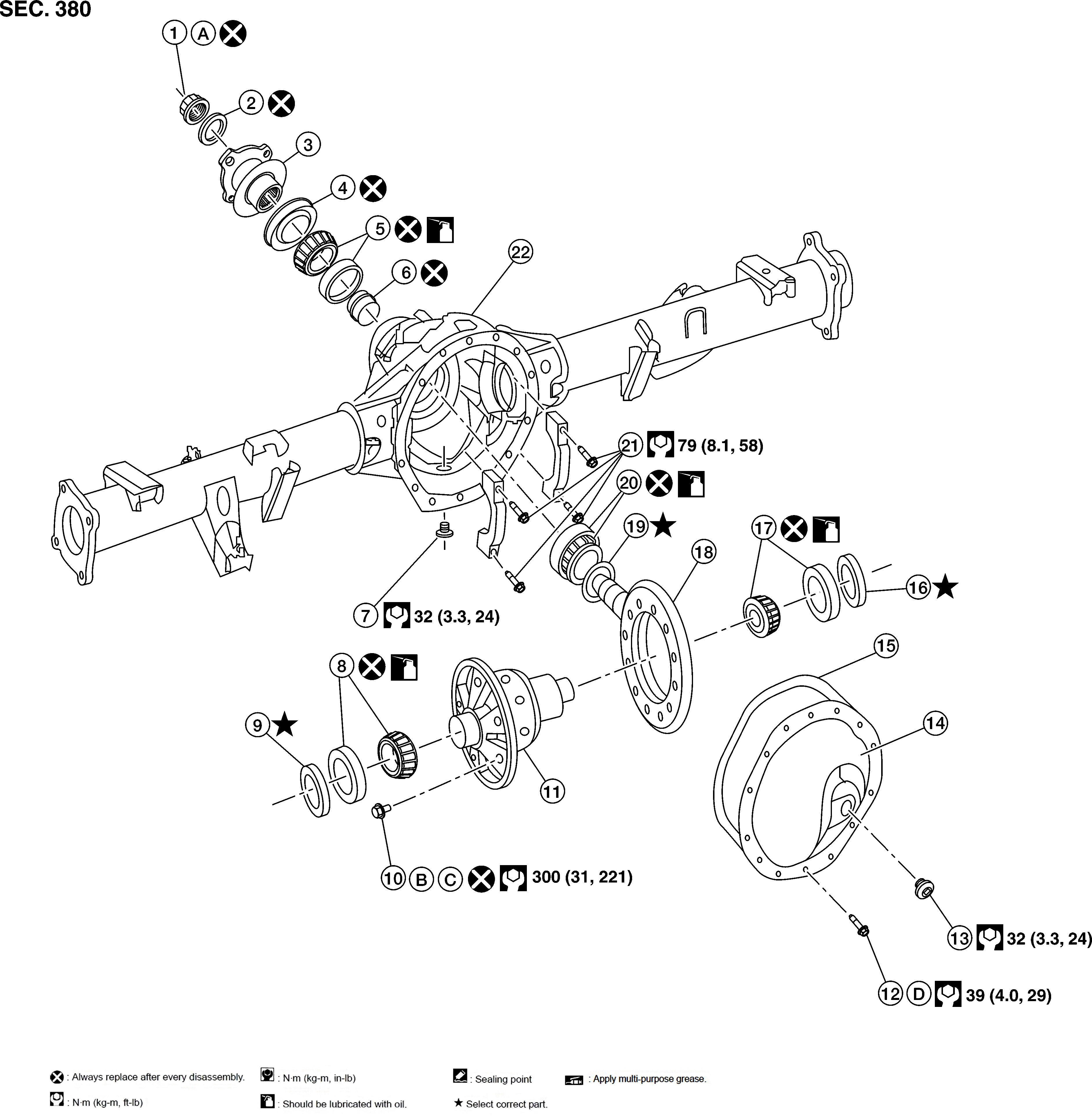

Disassembly and Assembly: Components
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Drive pinion lock nut |
2. |
Washer |
3. |
Companion flange |
|
4. |
Front oil seal |
5. |
Drive pinion front bearing |
6. |
Collapsible spacer |
|
7. |
Drain plug |
8. |
Side bearing (LH) |
9. |
Side bearing adjusting shim (LH) |
|
10. |
Drive gear bolt |
11. |
Differential case assembly |
12. |
Carrier cover bolt |
|
13. |
Filler plug |
14. |
Carrier cover |
15. |
carrier cover gasket |
|
16. |
Side bearing adjusting shim (RH) |
17. |
Side bearing (RH) |
18. |
Drive pinion and drive gear |
|
19. |
Drive pinion washer |
20. |
Drive pinion rear bearing |
21. |
Side bearing cap bolt |
|
22. |
Gear carrier |
A. |
Refer to Disassembly and Assembly . |
B. |
Refer to Disassembly and Assembly . |
|
C. |
Left hand threaded bolts |
D. |
Refer to Removal and Installation . |
