Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the differential gear oil. Refer to Changing Differential Gear Oil .

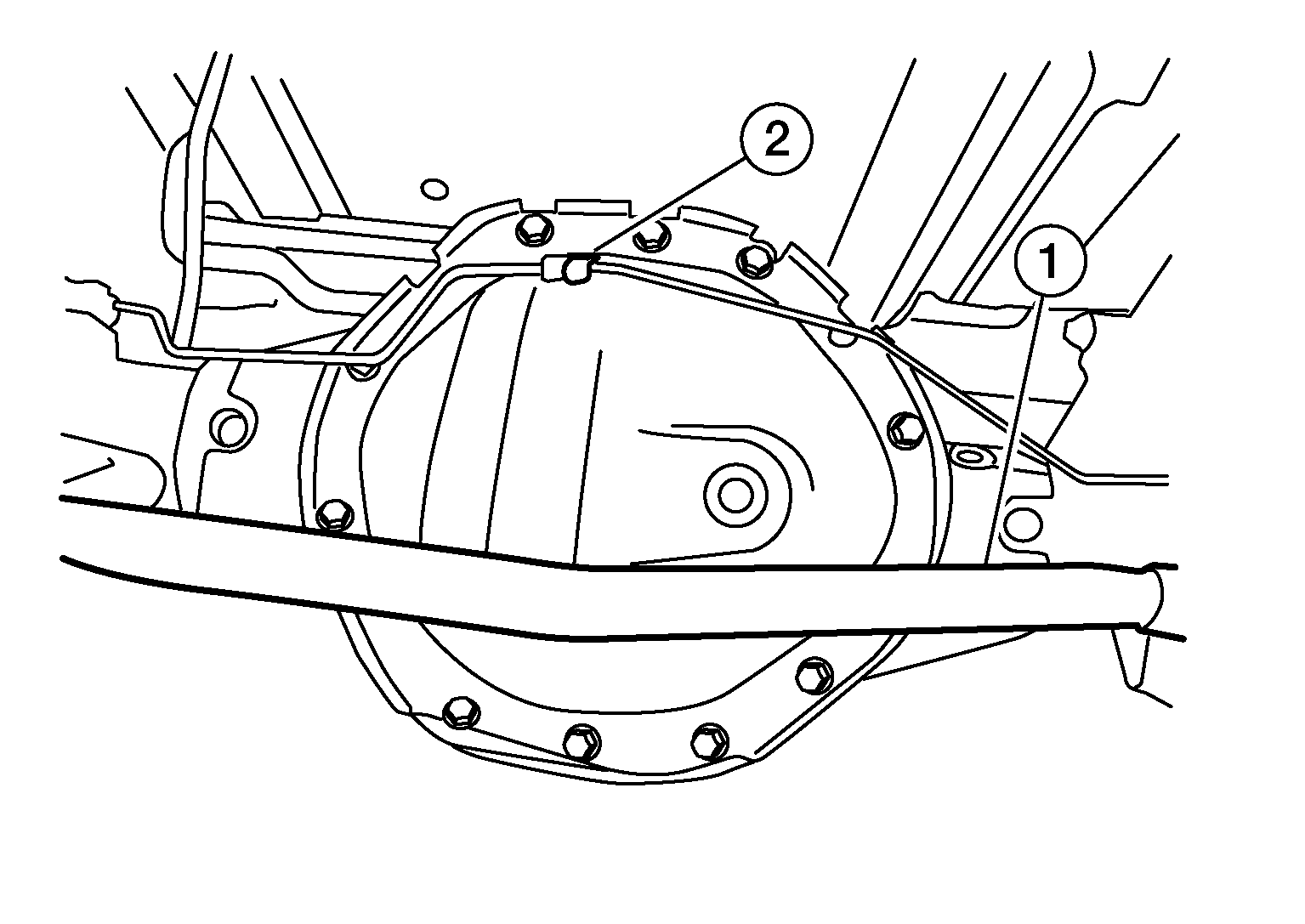

  2. Remove the rear stabilizer bar clamps and bushings and position stabilizer bar (1) out of the way. Refer to Removal and Installation .
    GNSDB119310Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the brake tube (2) from the carrier cover and position out of the way.
  4. Remove the carrier cover bolts, the carrier cover and gasket from the gear carrier.
    CAUTION:
    • Do not damage the mating surface.
    • Do not insert flat-bladed screwdriver, this will damage the gasket and mating surface.
