Commercial Service Tool

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Tool name		Description
Power tool	Courtesy of NISSAN NORTH AMERICA, INC.	Loosening nuts, screws and bolts

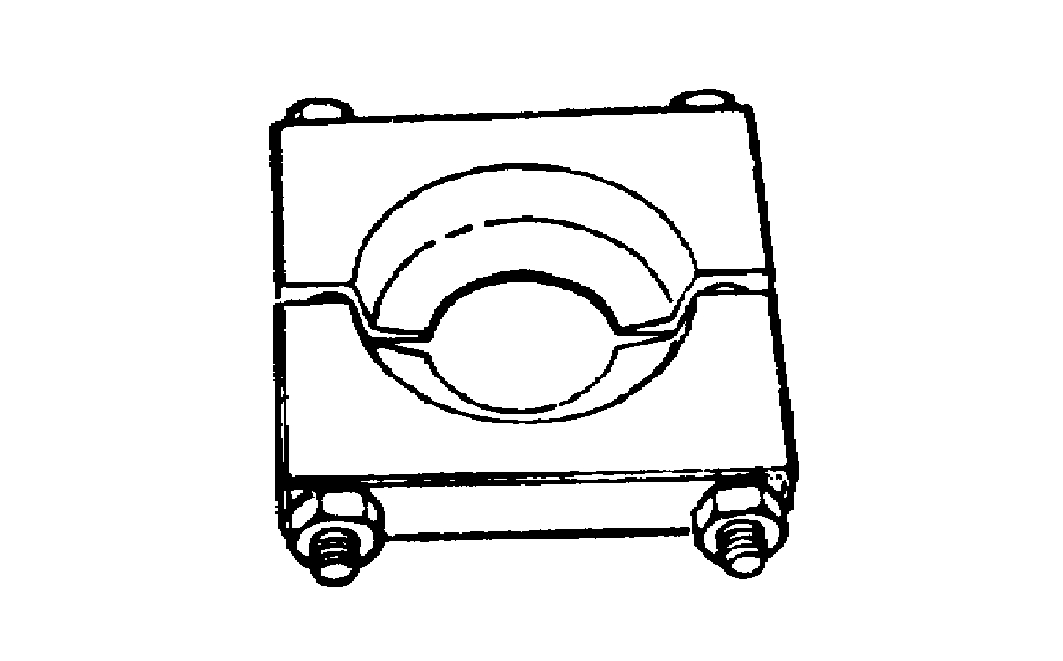

(OTC-1123) Bearing separator	Courtesy of NISSAN NORTH AMERICA, INC.	Bearing split plate

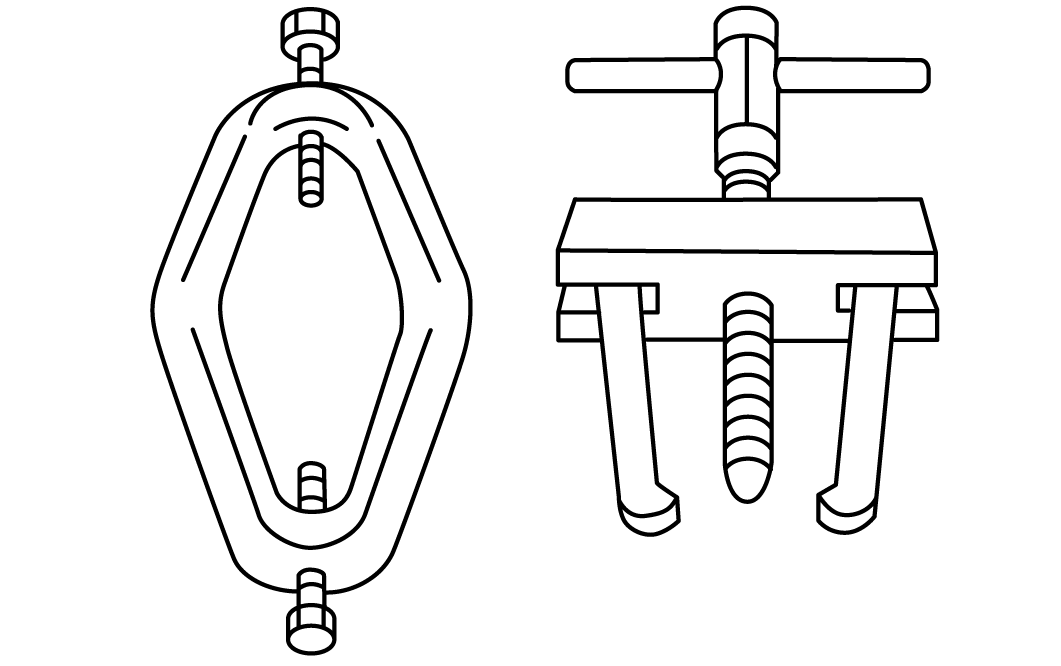

(J-8433) Puller set	Courtesy of NISSAN NORTH AMERICA, INC.	Removing side bearing inner race

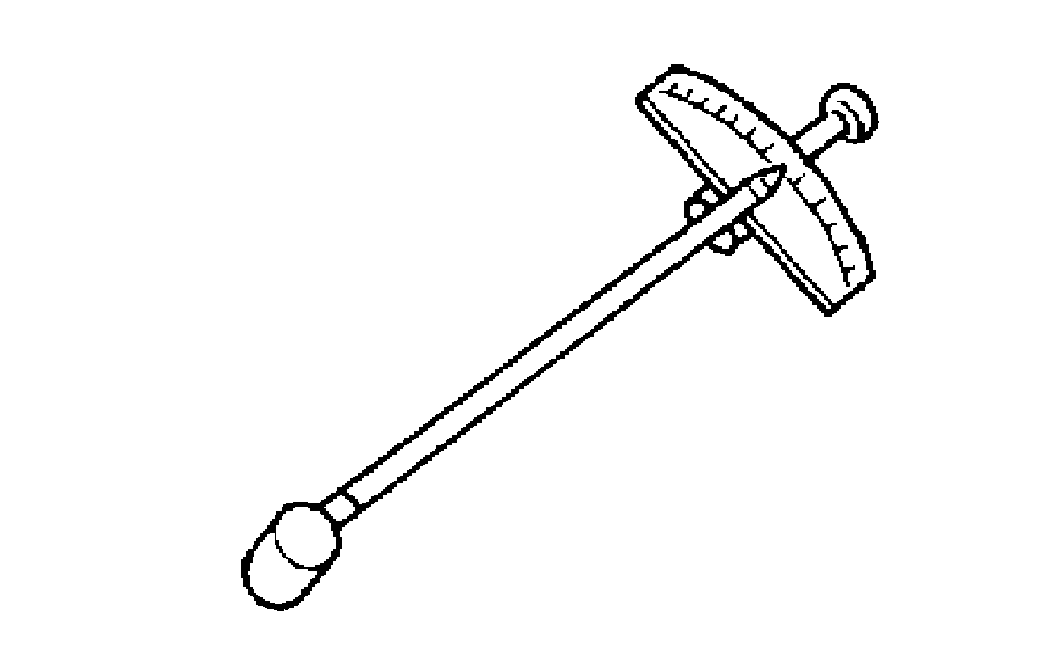

(J-25765-B) Preload guage	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring preload torque

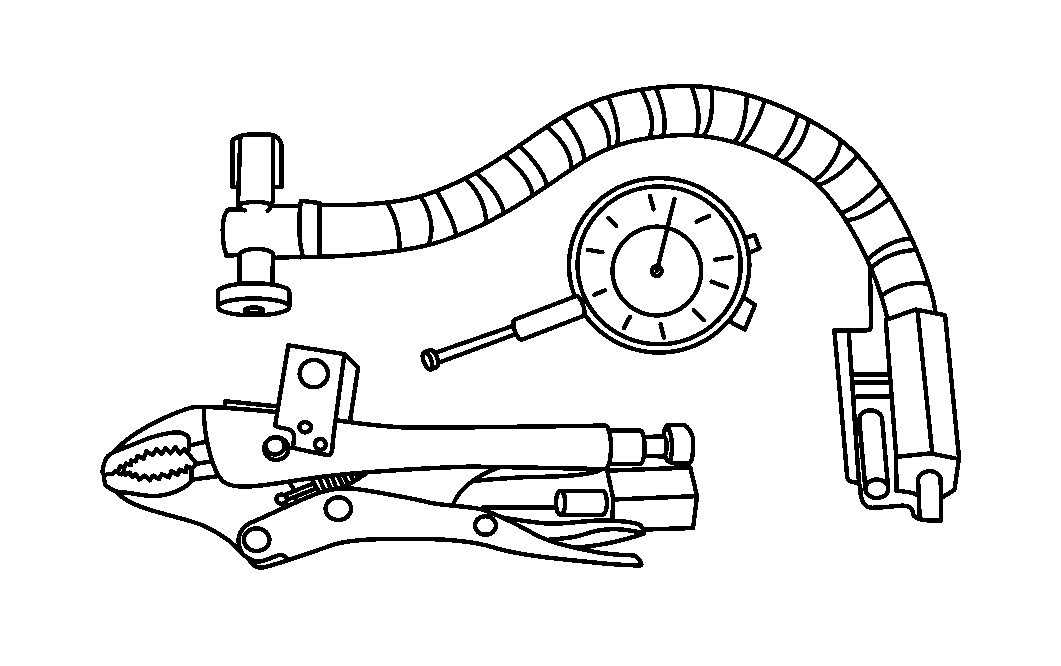

-- (J-45101) Dial indicator set	Courtesy of NISSAN NORTH AMERICA, INC.	Measuring Tool

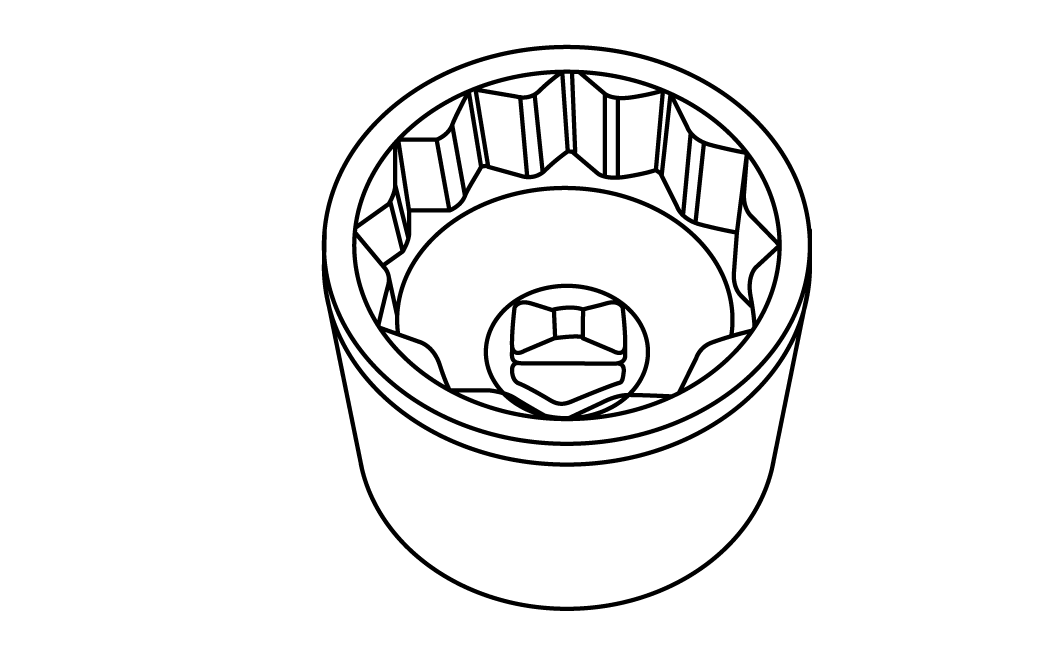

-- (EN-48702) Socket	Courtesy of NISSAN NORTH AMERICA, INC.	Removing companion flange 36 mm
