Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD and 2019 Nissan NV2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

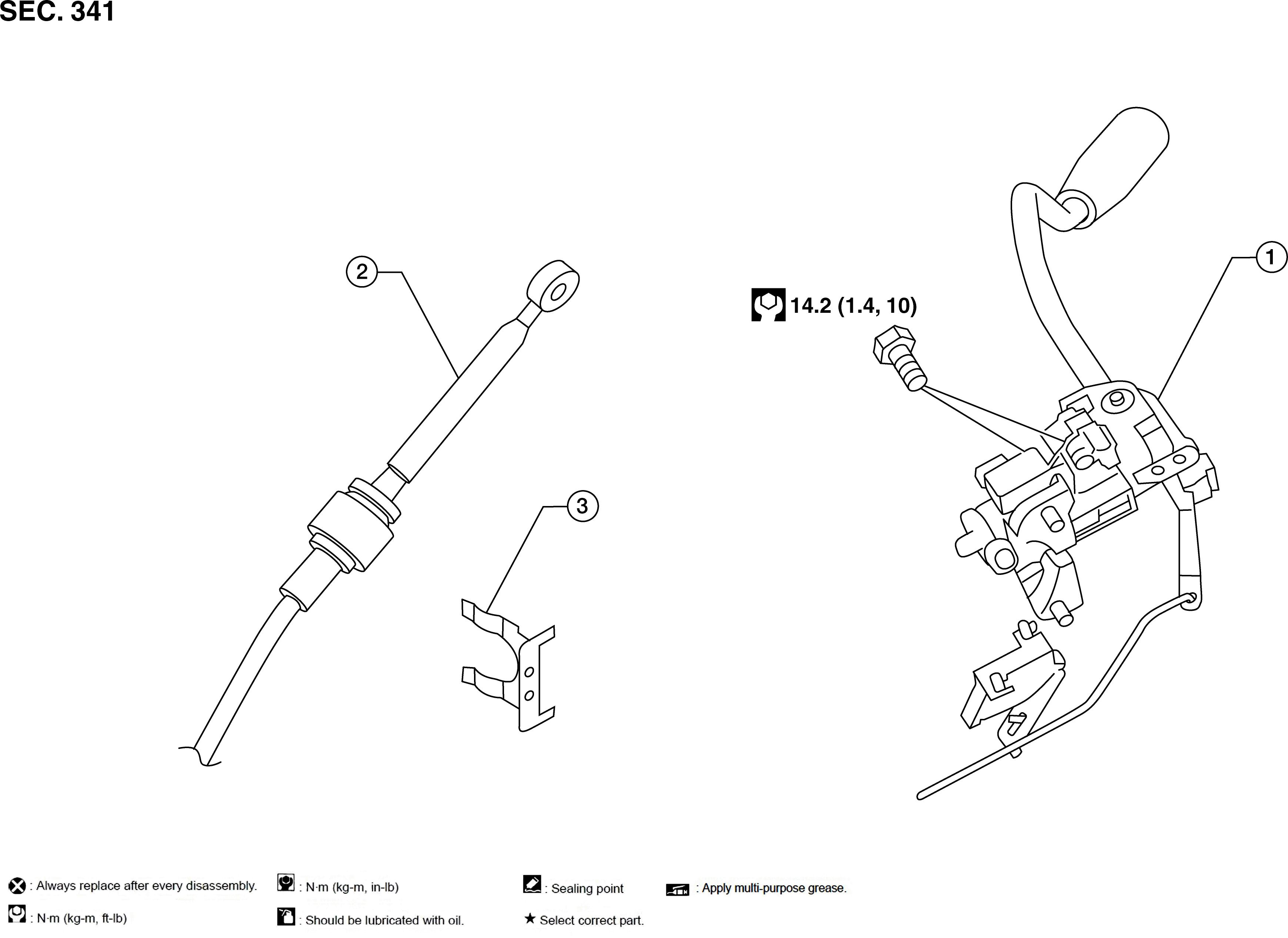

Fig 1: A/T Shift Selector Components With Torque Specifications
GNSAWDIA0929GB-929Courtesy of NISSAN NORTH AMERICA, INC.

1.

A/T shift selector

2.

Control cable

3.

Lock plate
