Component Inspection (Rear Blower Motor Relay)
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK REAR BLOWER MOTOR RELAY
- Remove rear blower motor relay.

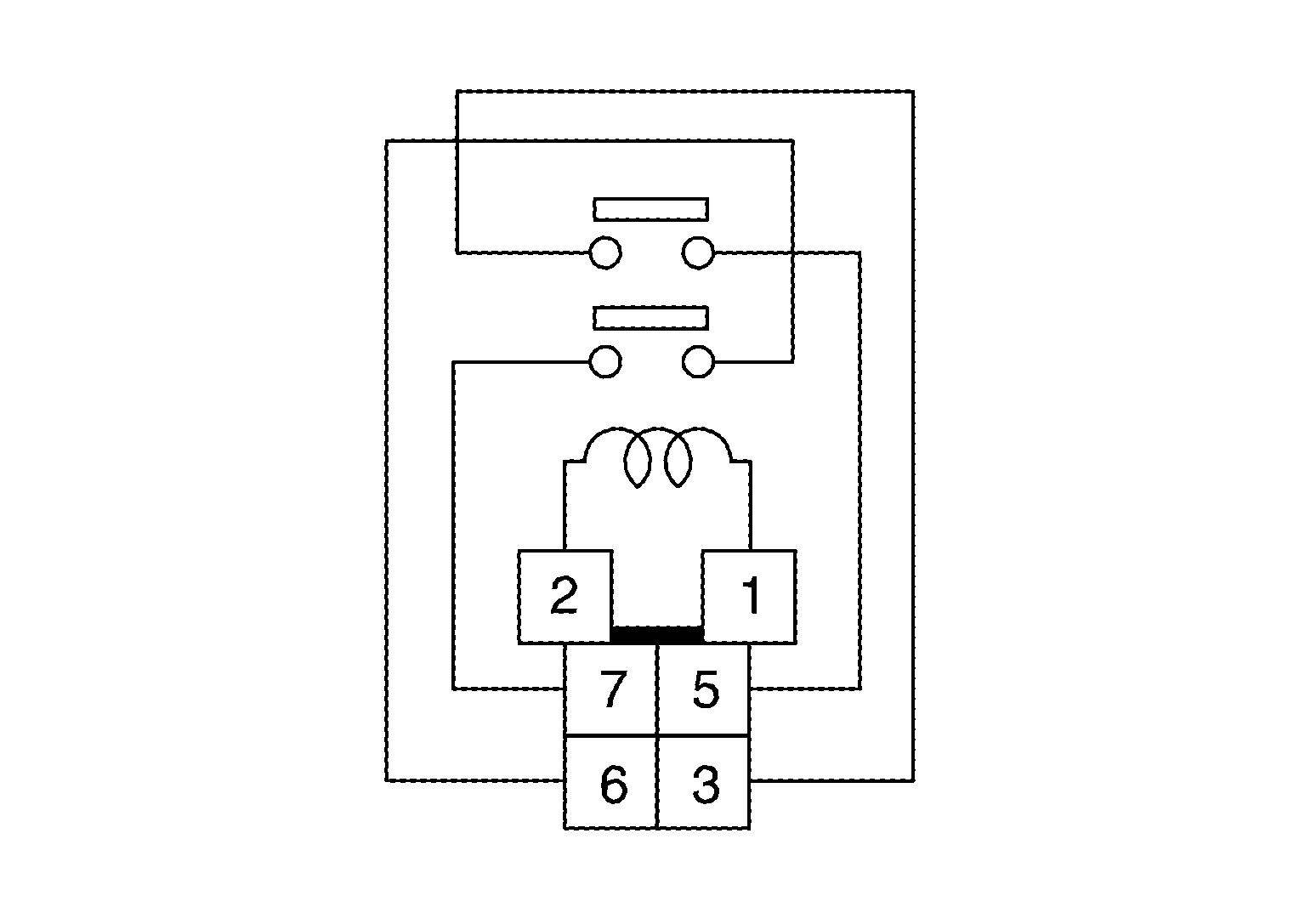

- Check continuity between rear blower motor relay terminal 3 and 5, then 6 and 7 when voltage is supplied between terminal 1 and 2.
Terminal
Voltage
Continuity
3
5
ON
Yes
OFF
No
6
7
ON
Yes
OFF
No
Is the inspection result normal?
YES
Inspection End.
NO
Replace rear blower motor relay.
