Component Inspection

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SUNLOAD SENSOR

Turn ignition switch OFF.
Reconnect sunload sensor connector.
Turn ignition switch ON.

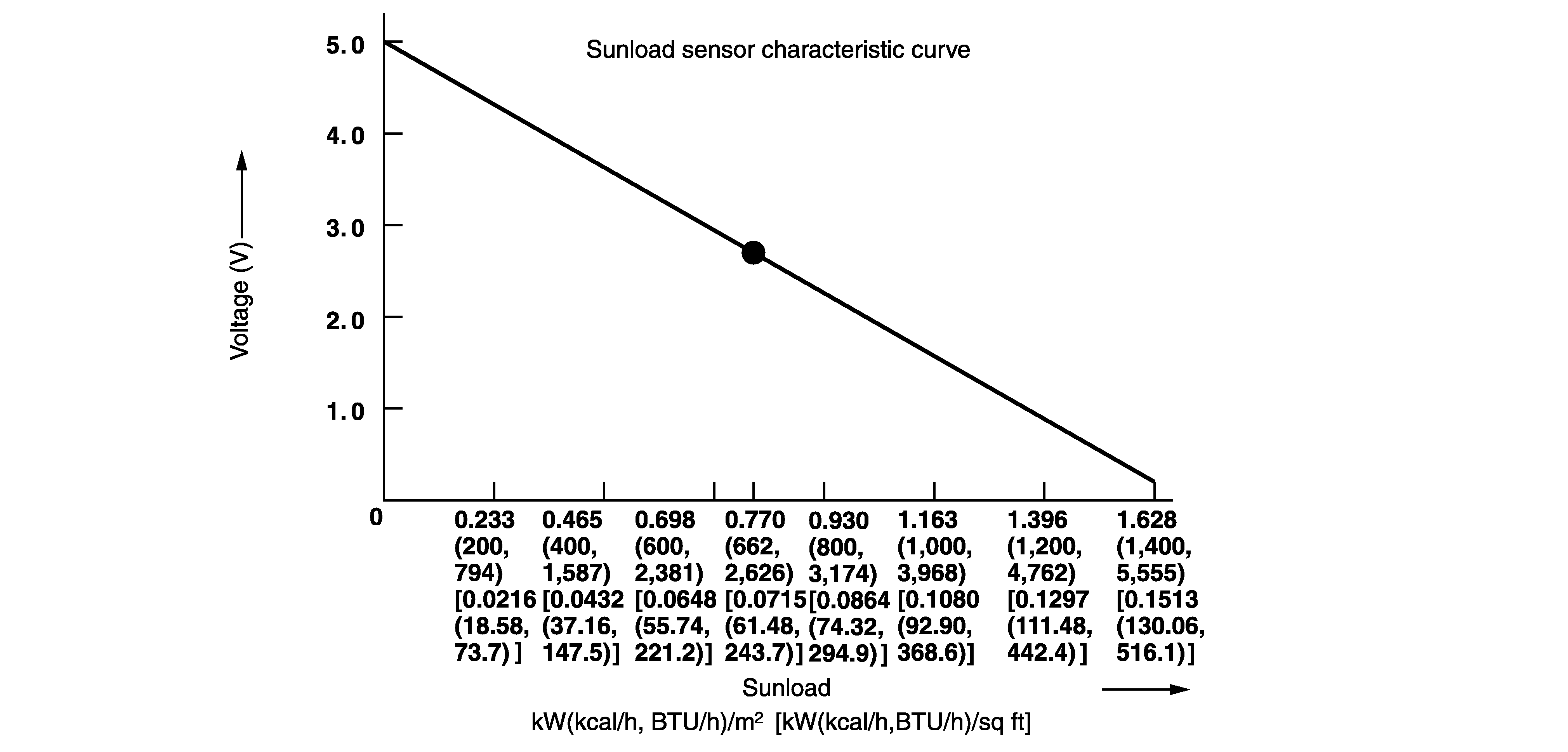

Check input voltage from sunload sensor between front air control harness connector and ground. Refer to applicable table for normal value.

+		-
Front air control.
Connector	Terminal
M56	35	Ground

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

When checking indoors, use a lamp of approximately 60 W. Move the lamp towards and away from the sensor to check.
The sunload amount produced by direct sunshine in fair weather is equivalent to approximately 0.770 kW/m ² (662 kcal/m ² .h).

Is the inspection result normal?

YES

Inspection End.

Replace sunload sensor. Refer to Removal and Installation .
