Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cowl top cover. Refer to Removal and Installation .
  2. Remove the bolts (A) and cowl extension reinforcement (1).
    GNSALLIA1017Z-017Courtesy of NISSAN NORTH AMERICA, INC.

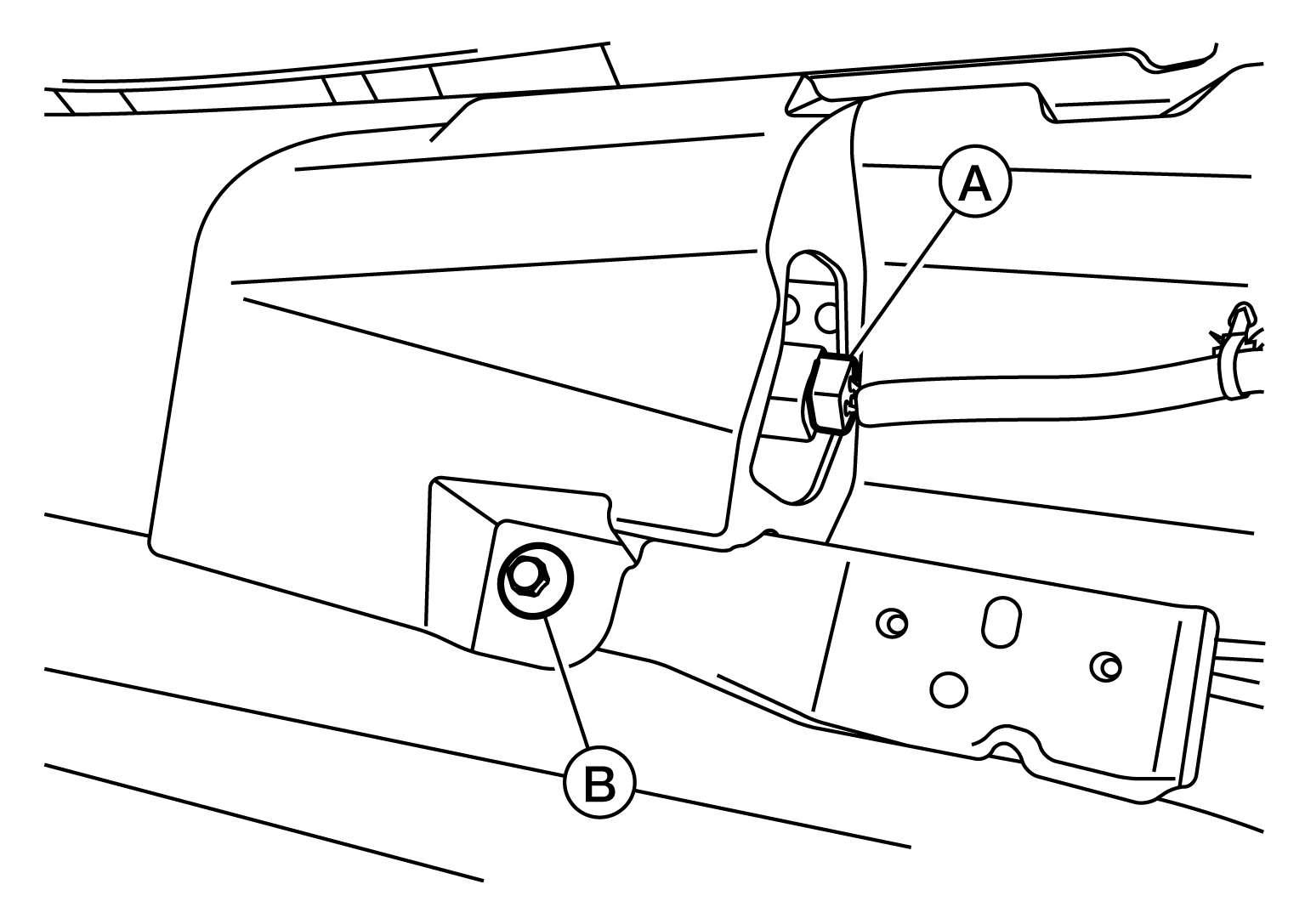

  3. Disconnect the harness connector (A) and remove the bottom wiper linkage bolt (B).
    GNSALLIA1003Z-003Courtesy of NISSAN NORTH AMERICA, INC.

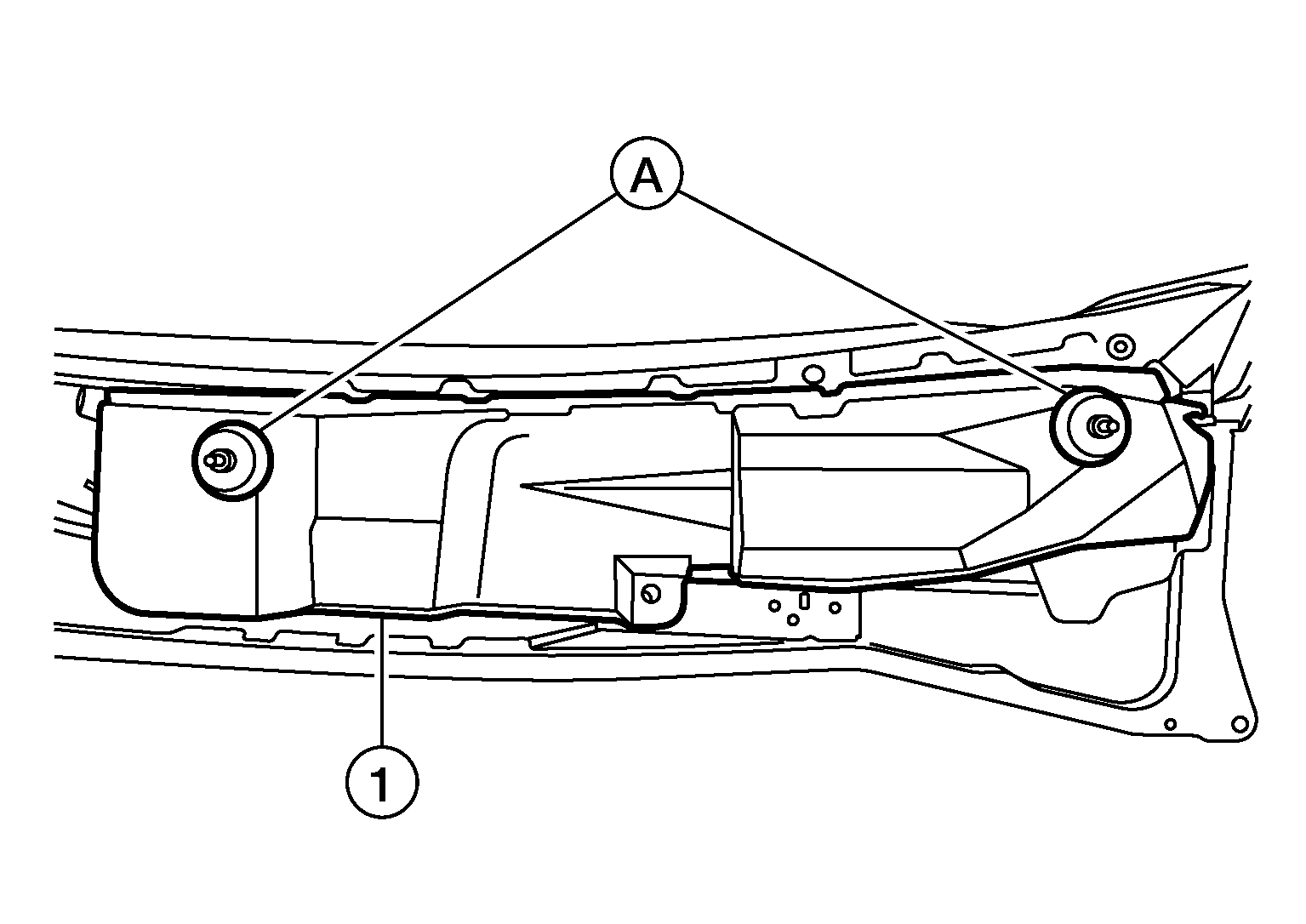

  4. Remove the wiper arm shaft seals (A) and remove the wiper motor water cover (1).
    GNSALLIA1004Z-004Courtesy of NISSAN NORTH AMERICA, INC.

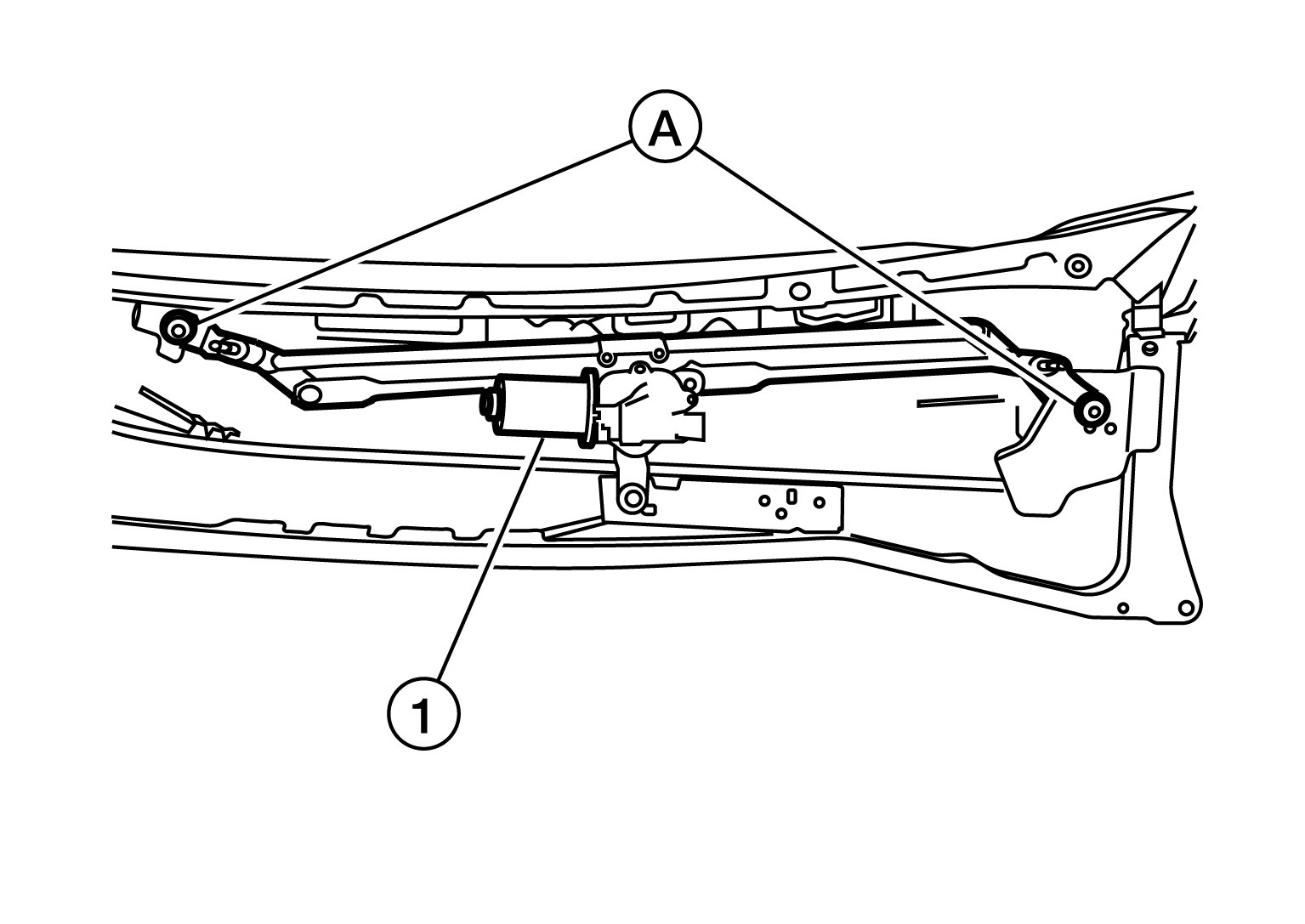

  5. Remove wiper linkage bolts (A) and remove wiper linkage assembly (1).
    GNSAWLIA1848Z-848Courtesy of NISSAN NORTH AMERICA, INC.
