Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not drop the wiper linkage assembly or cause it to contact other parts.
  • Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.
  1. Install the wiper linkage assembly and secure with the bolts.
  2. Install the wiper motor water cover and the wiper arm shaft seals.
  3. Connect harness connector to wiper motor, then install the bottom wiper linkage assembly bolt.

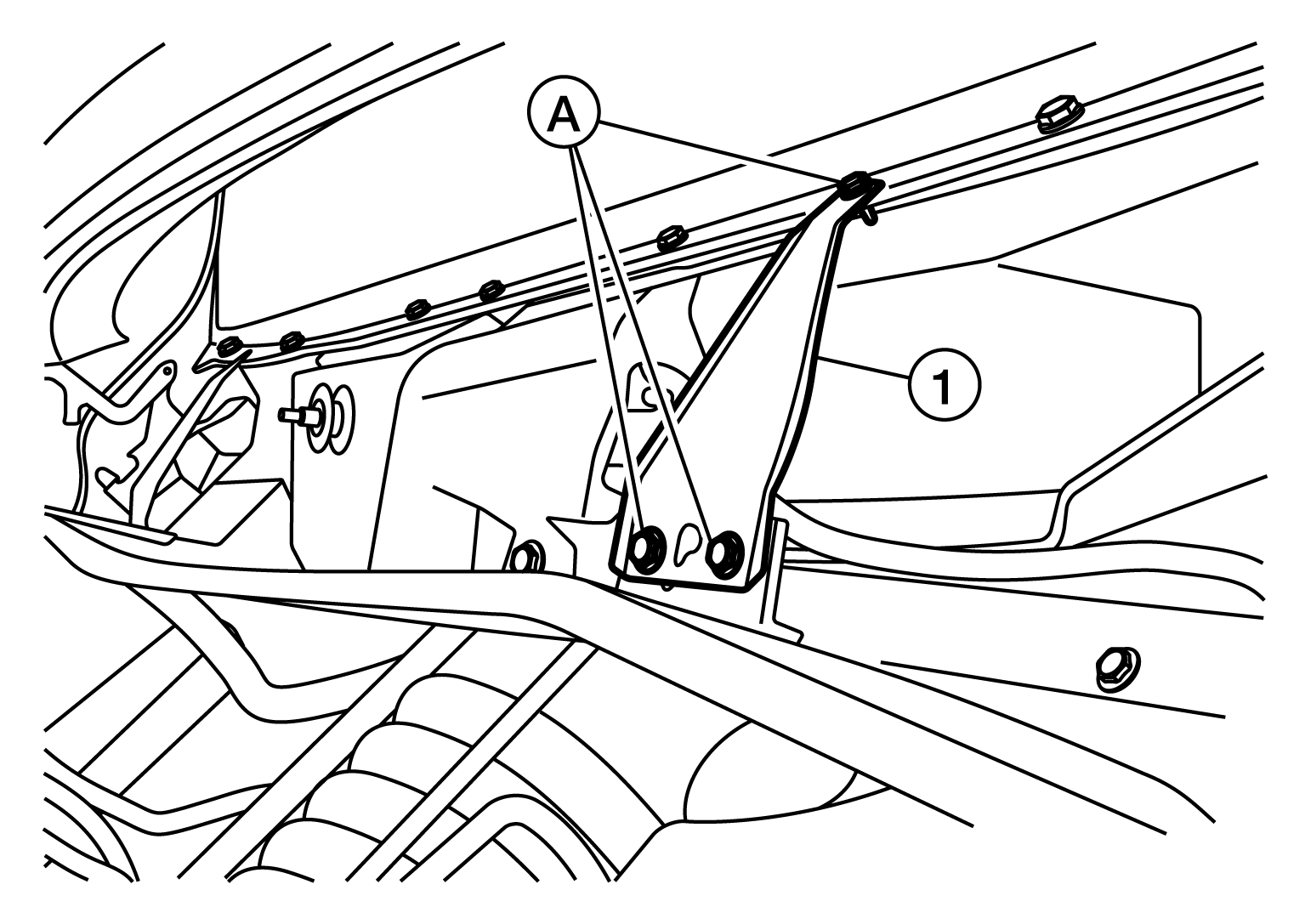

  4. Install the cowl extension reinforcement (1) and bolts (A).
    GNSALLIA1017Z-017Courtesy of NISSAN NORTH AMERICA, INC.
  5. Install cowl top cover. Refer to Removal and Installation .
  6. Turn the wiper switch ON to operate wiper motor, then turn the wiper switch OFF (auto stop).
  7. Ensure that wiper blades stop within proper clearance. Refer to Adjustment .
