Front Wiper Blade: Replacement: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wiper blade. Refer to Removal and Installation .

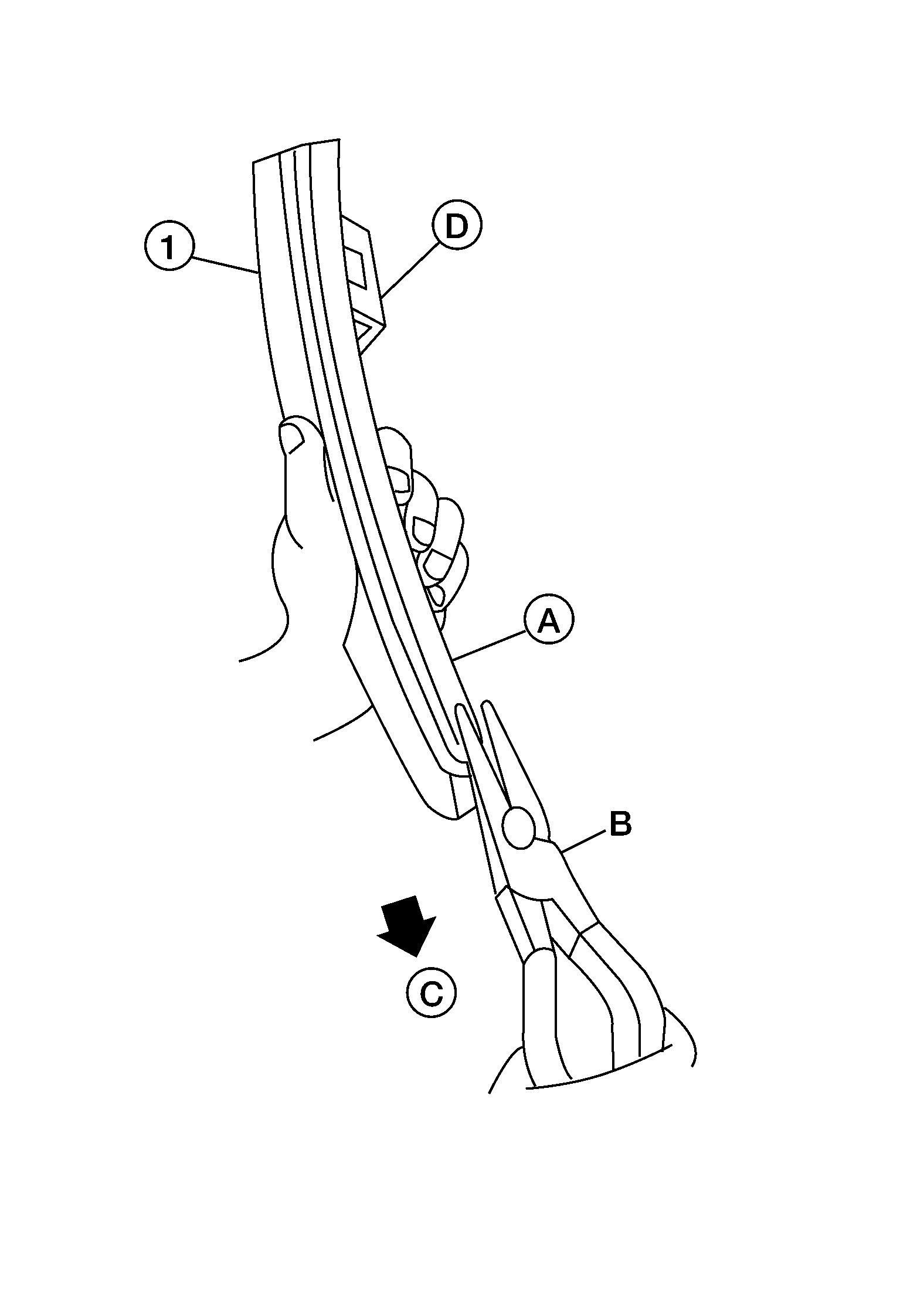

Hold the wiper blade refill lip at the end (A) of the front wiper blade (1) with a suitable tool (B) as shown, below and pull it firmly in the direction (C).

Courtesy of NISSAN NORTH AMERICA, INC.

(D): U clip (part of the wiper blade assembly)

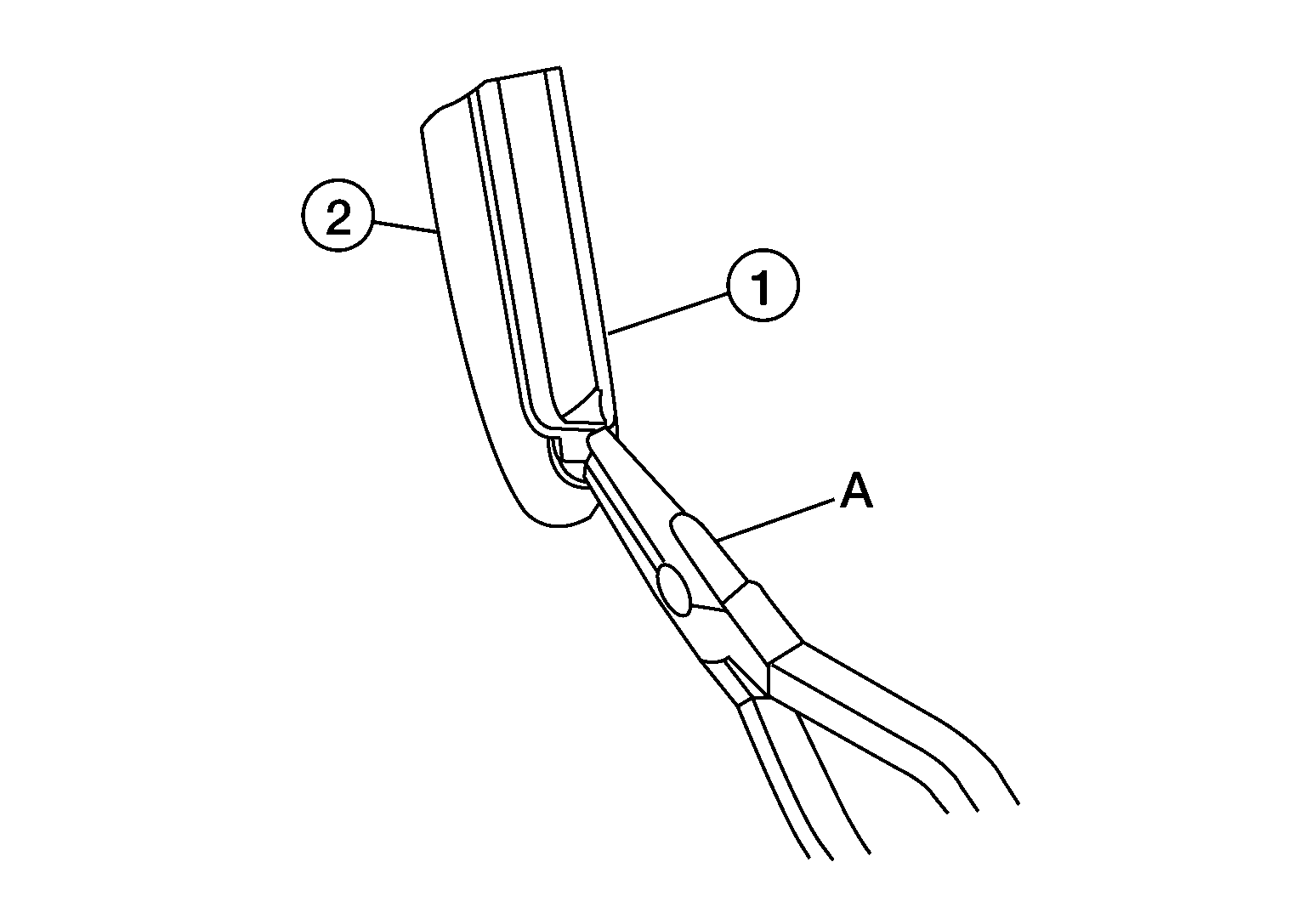

If the wiper blade refill lip is torn due to wear, insert a suitable tool (A) into the space between the end of the wiper blade refill (1) and the front wiper blade (2) and pull the wiper blade refill (1) out as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.
