Front Wiper Blade: Replacement: Installation

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

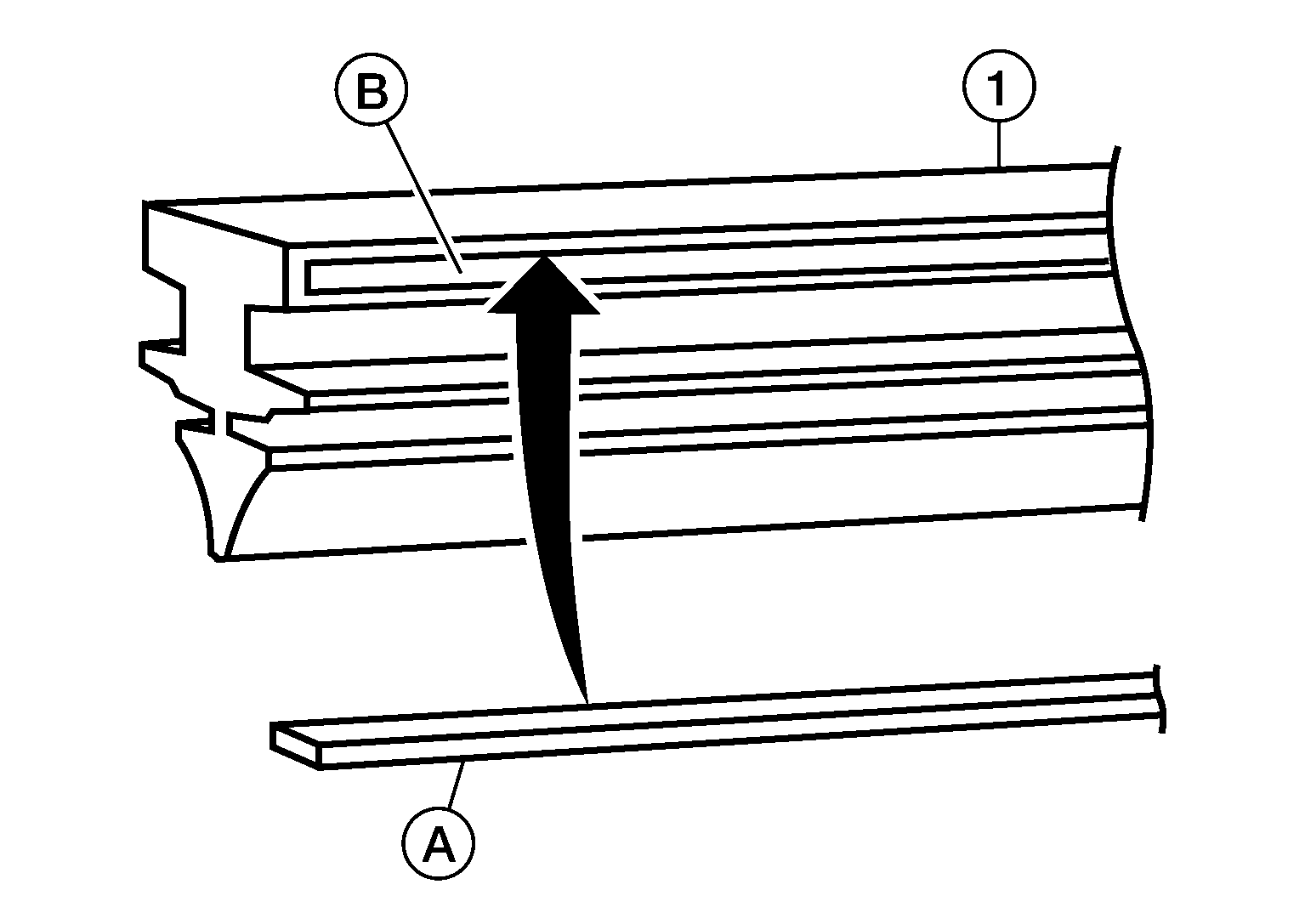

If the rib (A) has become detached from the wiper blade refill (1), check that the curve of the rib (A) is in the same direction as the curve of the wiper blade refill (1) and insert the rib (A) into the slit (B) in the wiper blade refill (1) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

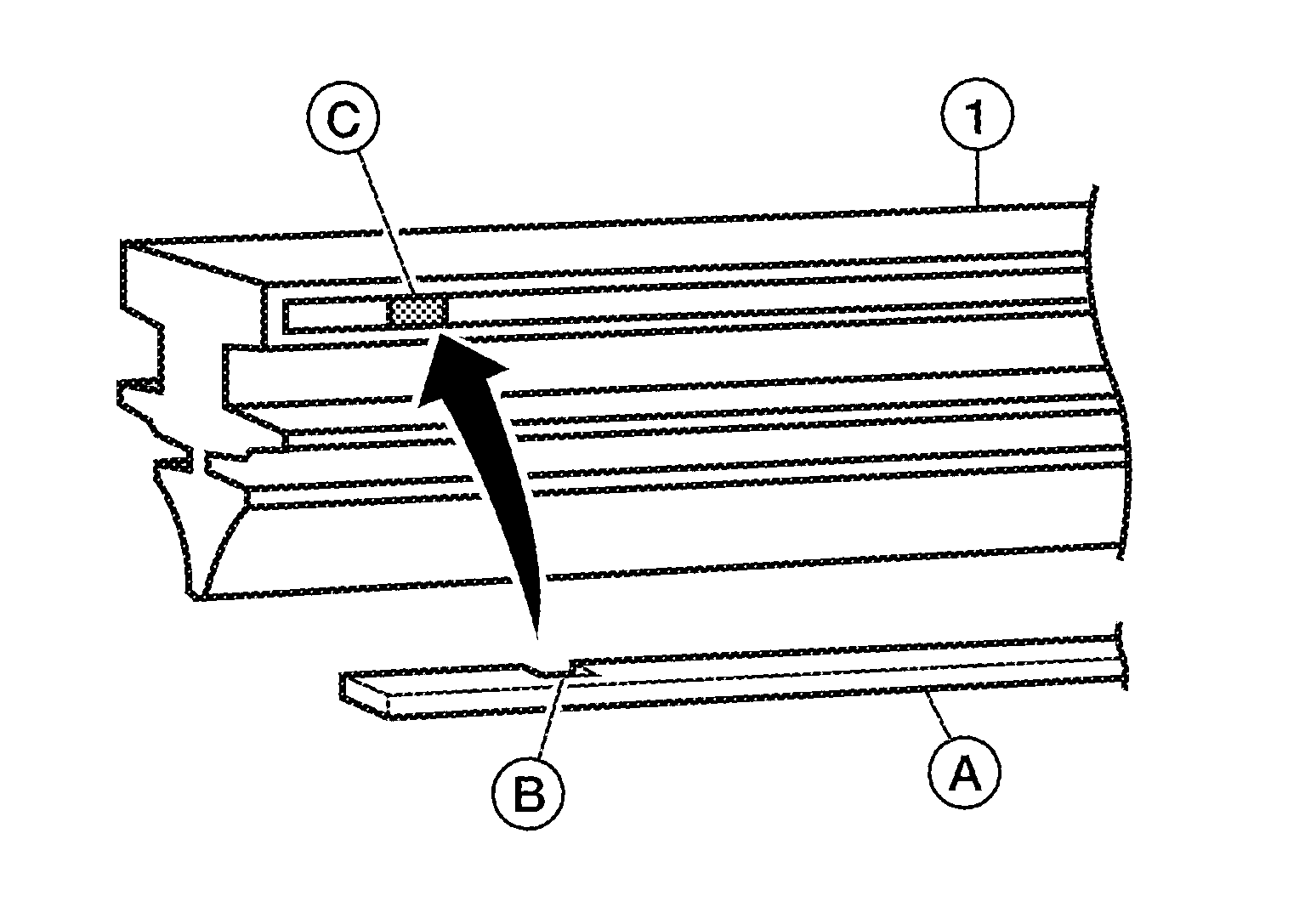

If the rib (A) has a notch (B), insert the rib (A) into the wiper blade refill (1) so the notch (B) fits over the protrusion (C) in the wiper blade refill (1) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

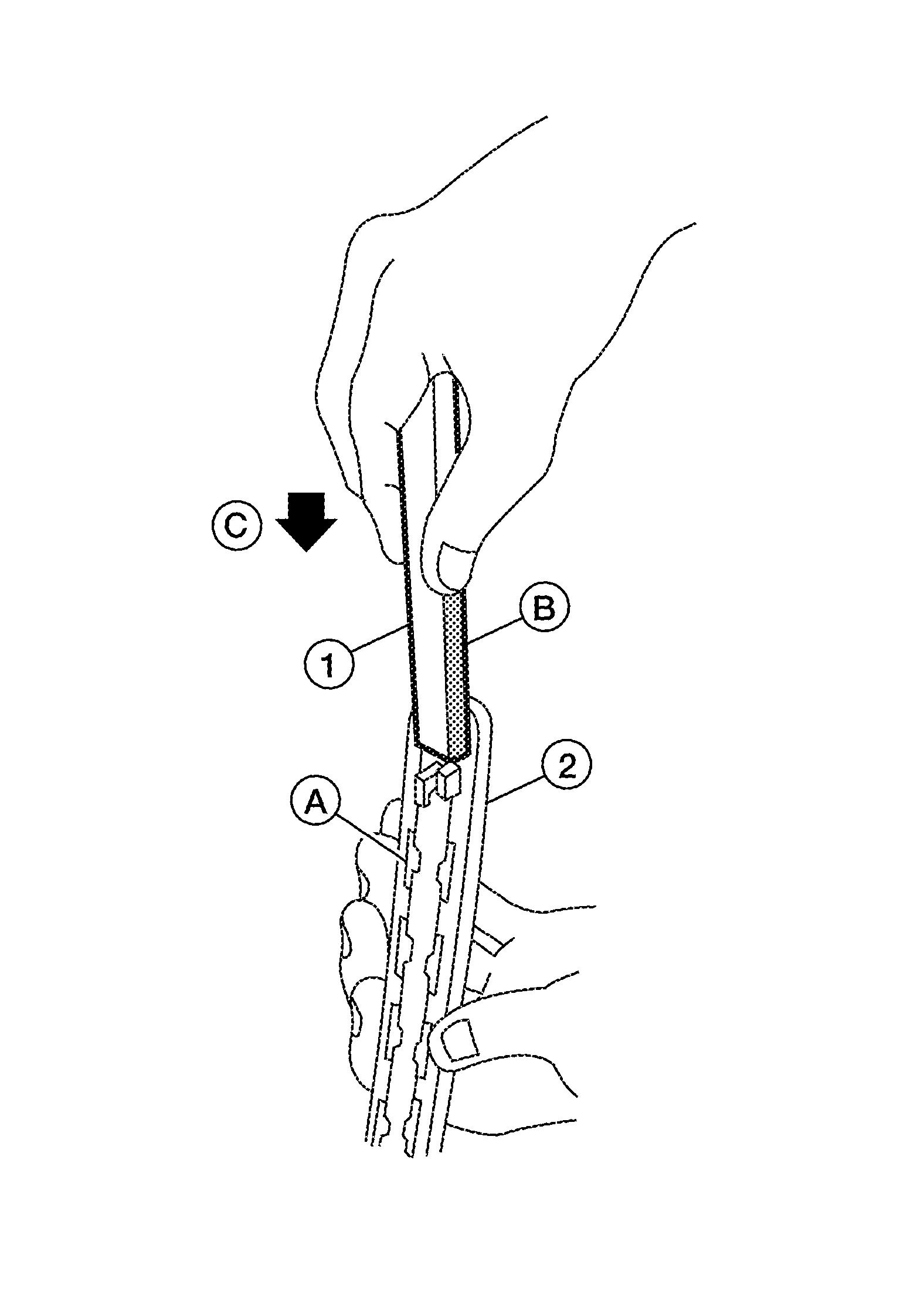

Insert the wiper blade refill (1) tip into the end of the front wiper blade (2). Push the wiper blade refill (1) in while pressing it into the end of the front wiper blade (2) as shown, below (C). After the wiper blade refill is fully inserted, remove the holder (B).

Courtesy of NISSAN NORTH AMERICA, INC.

(A): Tab [part of front wiper blade (2)]

Make sure to slide the refill into the front wiper blade so that the wiper blade refill is held by the tabs (A) on the front wiper blade as shown, below.

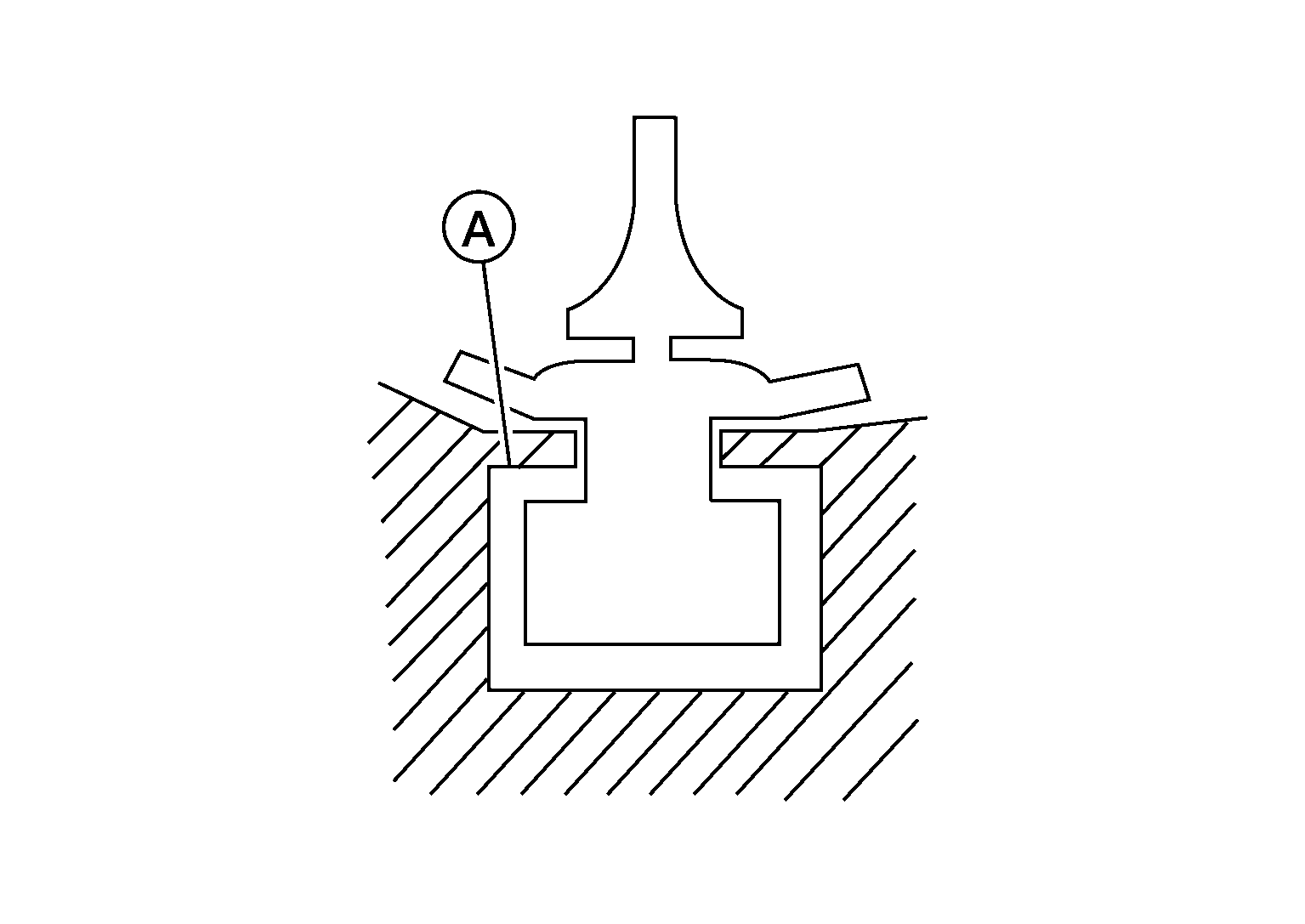

Courtesy of NISSAN NORTH AMERICA, INC.

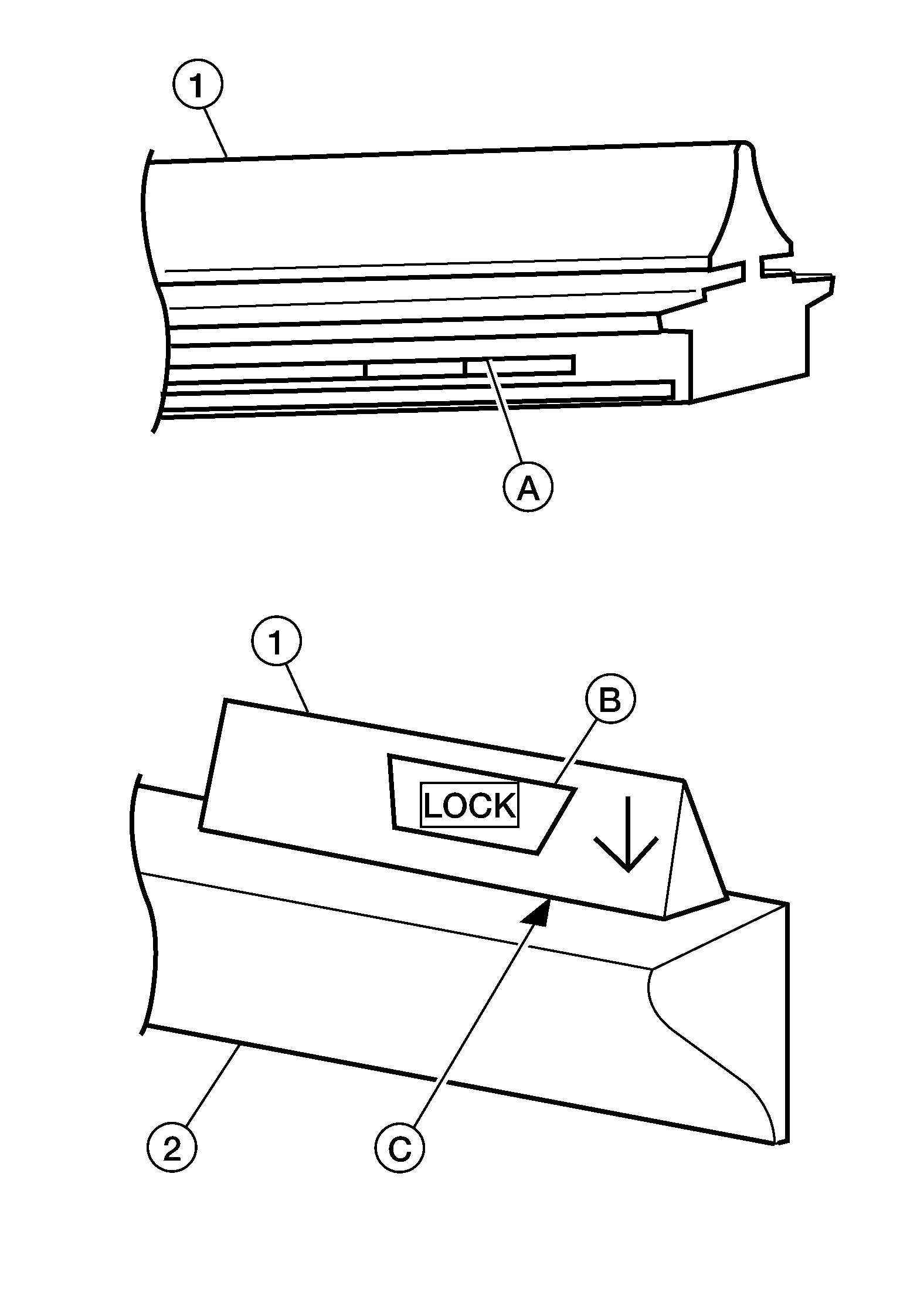

Push the wiper blade refill (1) until the tabs on the front wiper blade (2) fit into the stoppers (A) in the end of the wiper blade refill (1). Make sure the LOCK mark (B) on the wiper blade refill (1) is aligned with the lock point symbol (C) on the front wiper blade (2) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

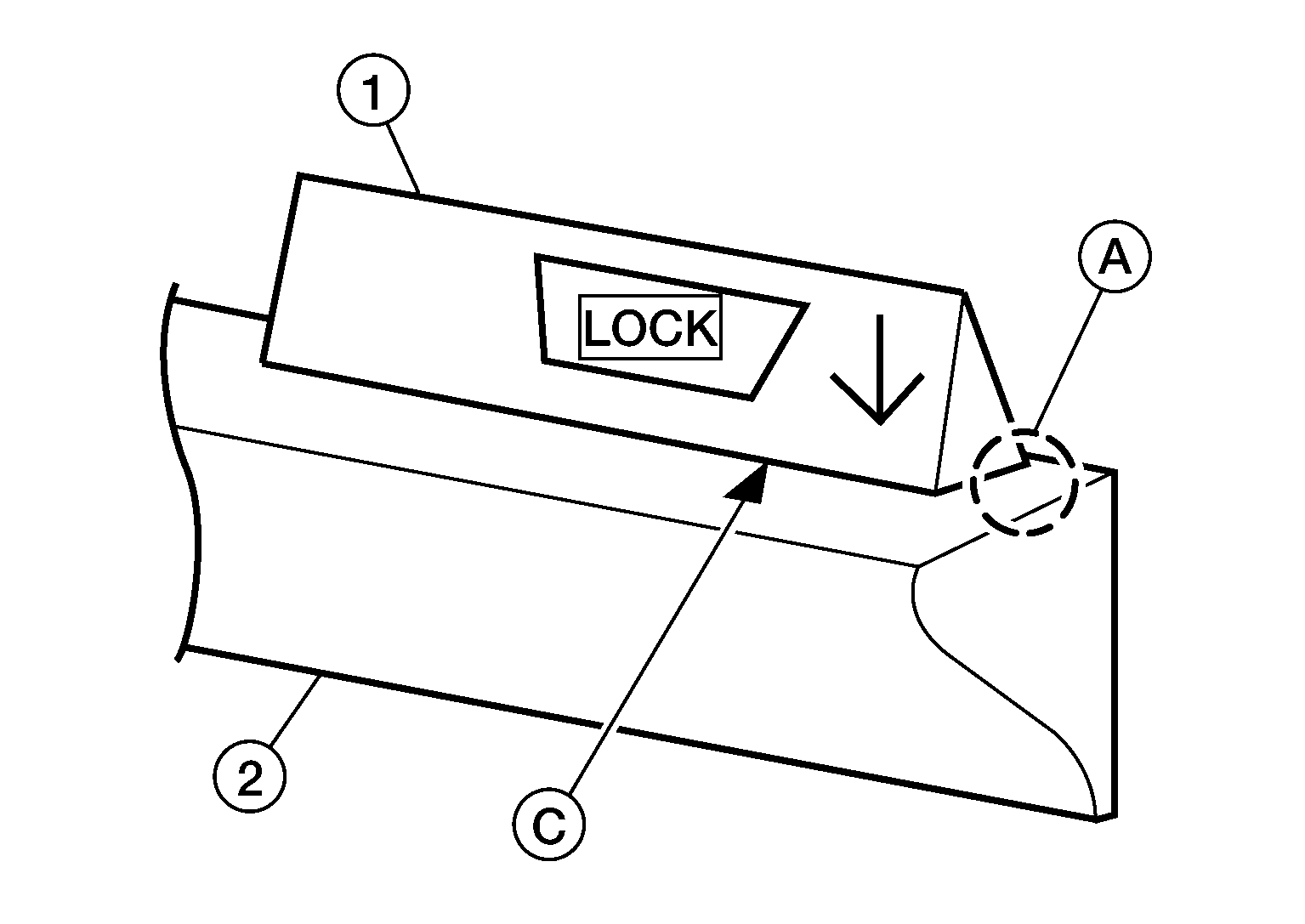

Before installing the front wiper blade, make sure that the wiper blade refill (1) end is fully covered by the front wiper blade (2) in area (A) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

(C): Lock point symbol
Install the front wiper blade.
