Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Lift the front wiper arm frame and blade assembly away from the windshield.

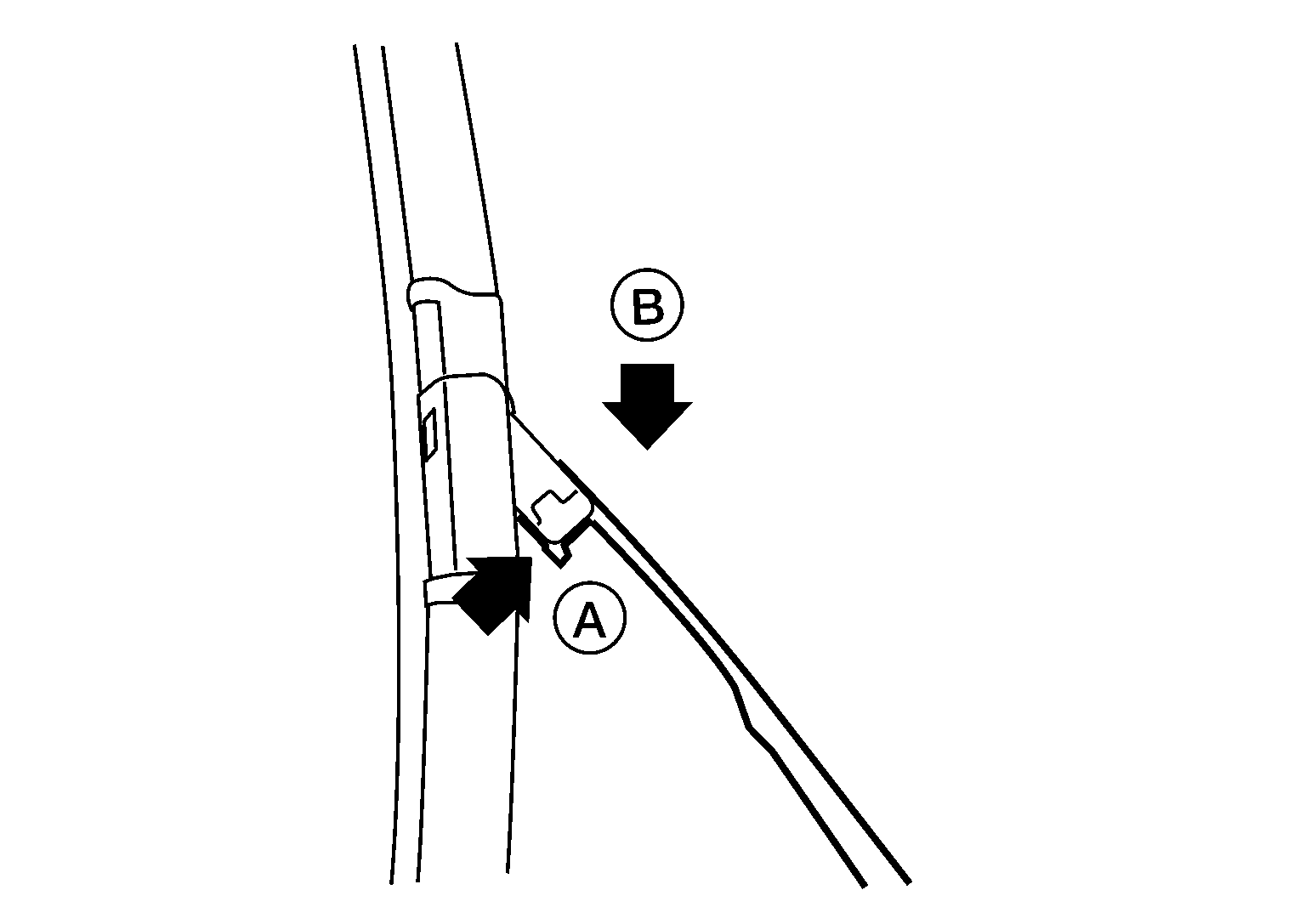

- Rotate the front wiper frame assembly and push the release tab (A), then move the front wiper blade down (B) the front wiper arm.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove the front wiper blade.
