Front Washer Nozzle: Adjustment
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

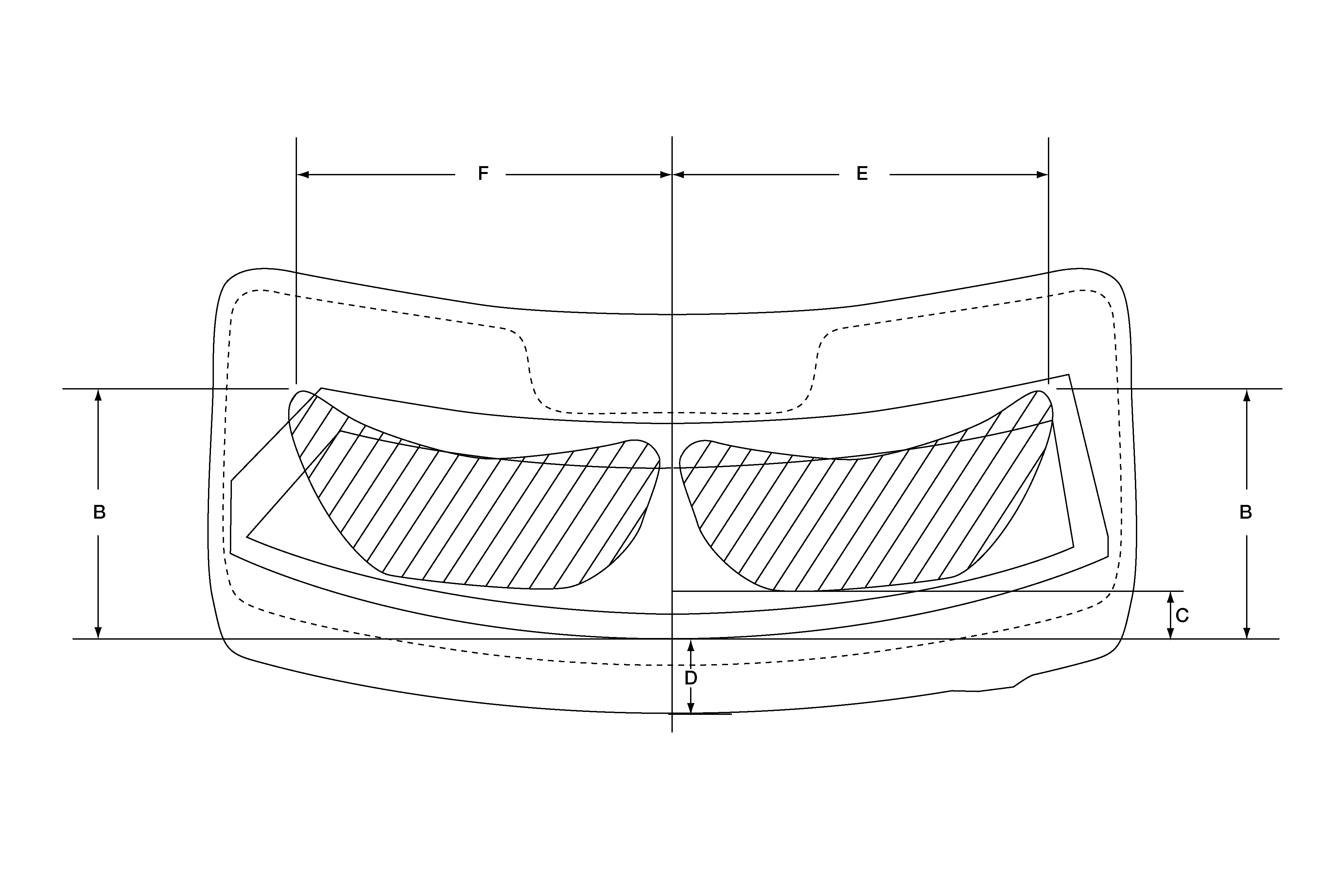

Adjust spray pattern to hit the aiming target zone as shown, below.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
A.
|
Aiming target zone
|
B.
|
445 mm (17.52 in)
|
C.
|
126 mm (4.96 in)
|
|
D.
|
148 mm (5.83 in)
|
E.
|
716 mm (28.19 in)
|
F.
|
716 mm (28.19 in)
|

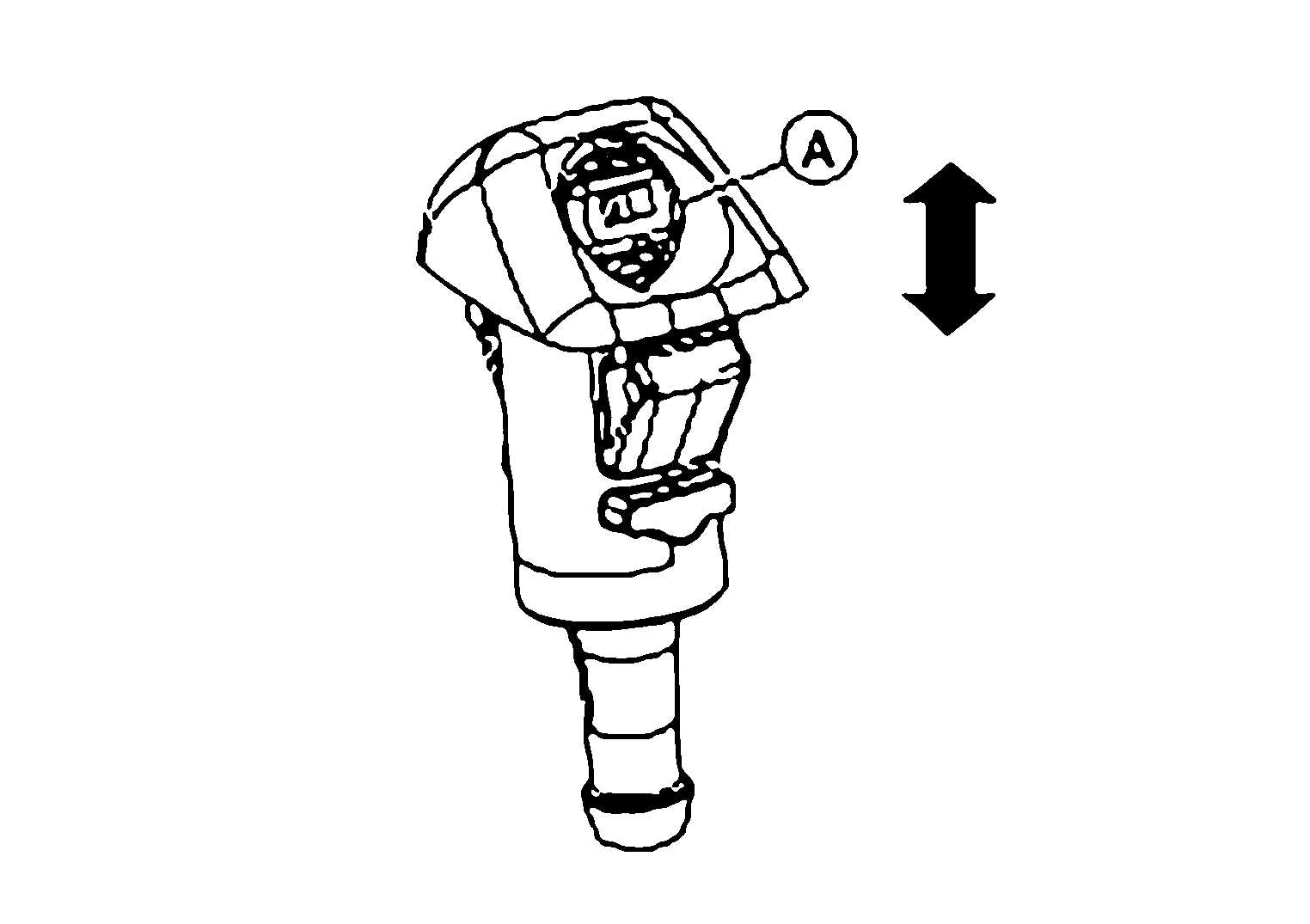

Move spray nozzle (A) up/down to adjust spray pattern using a suitable tool.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
