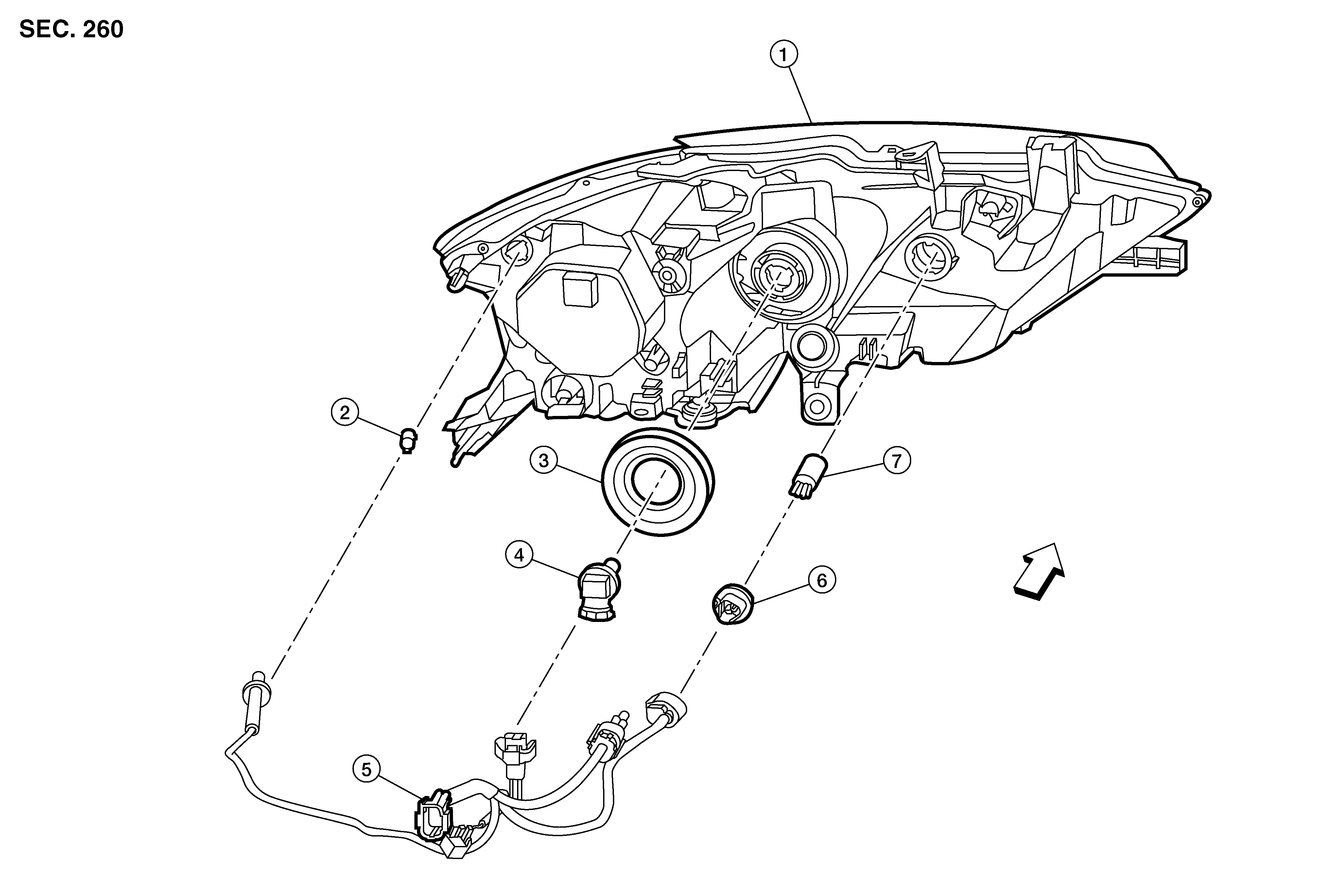

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Front combination lamp
|
2.
|
Side marker lamp bulb
|
3.
|
High beam lamp bulb grommet
|
|
4.
|
High beam lamp bulb
|
5.
|
Front combination lamp harness
|
6.
|
Turn signal lamp bulb socket
|
|
7.
|
Turn signal lamp bulb
|
|
Front
|
NOTE:
LH shown, RH similar.
