Section 54 (Exterior Lighting System - Led Headlamp)
>>
Removal And Installation
>>
Back-Up Lamp Assembly
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

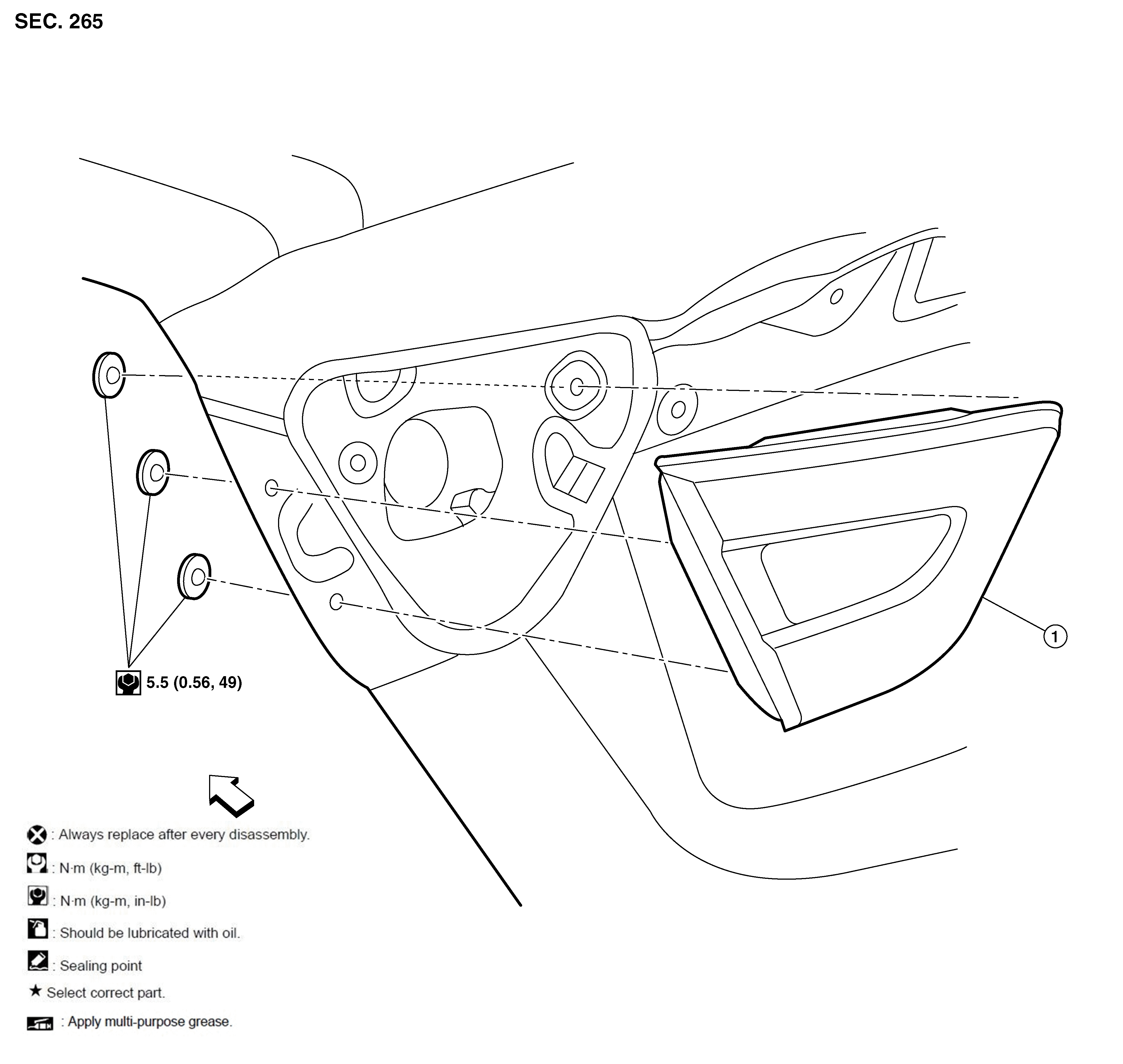

Fig 1: Back-Up Lamp Assembly Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Back-up lamp assembly
Front
NOTE:
LH shown, RH similar.
