Aiming Adjustment Screw

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

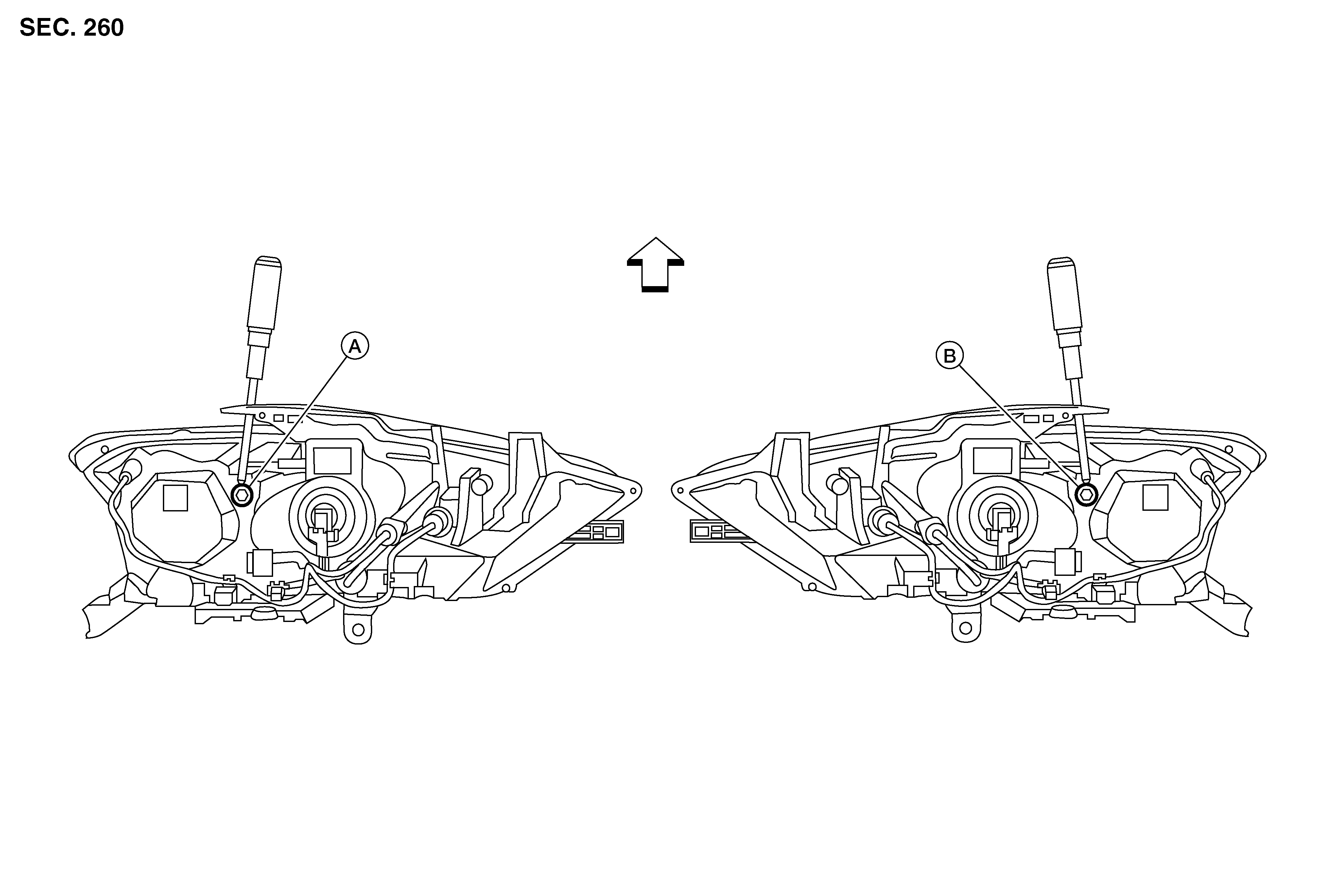

GNSAWLIA2659Z-659Courtesy of NISSAN NORTH AMERICA, INC.

A.

Adjusting screw (LH)

B.

Adjusting screw (RH)

SYMBOL

Front
