Removal and Installation: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other materials.
NOTE:
Remove the disc rotor only with the parking brake pedal completely in the released position.
- Remove the rear disc rotor. Refer to Removal and Installation of Brake Caliper Assembly and Rotor .
- Remove the upper return spring.
- Remove the adjuster.
- Disconnect the rear parking brake cable from the toggle lever.

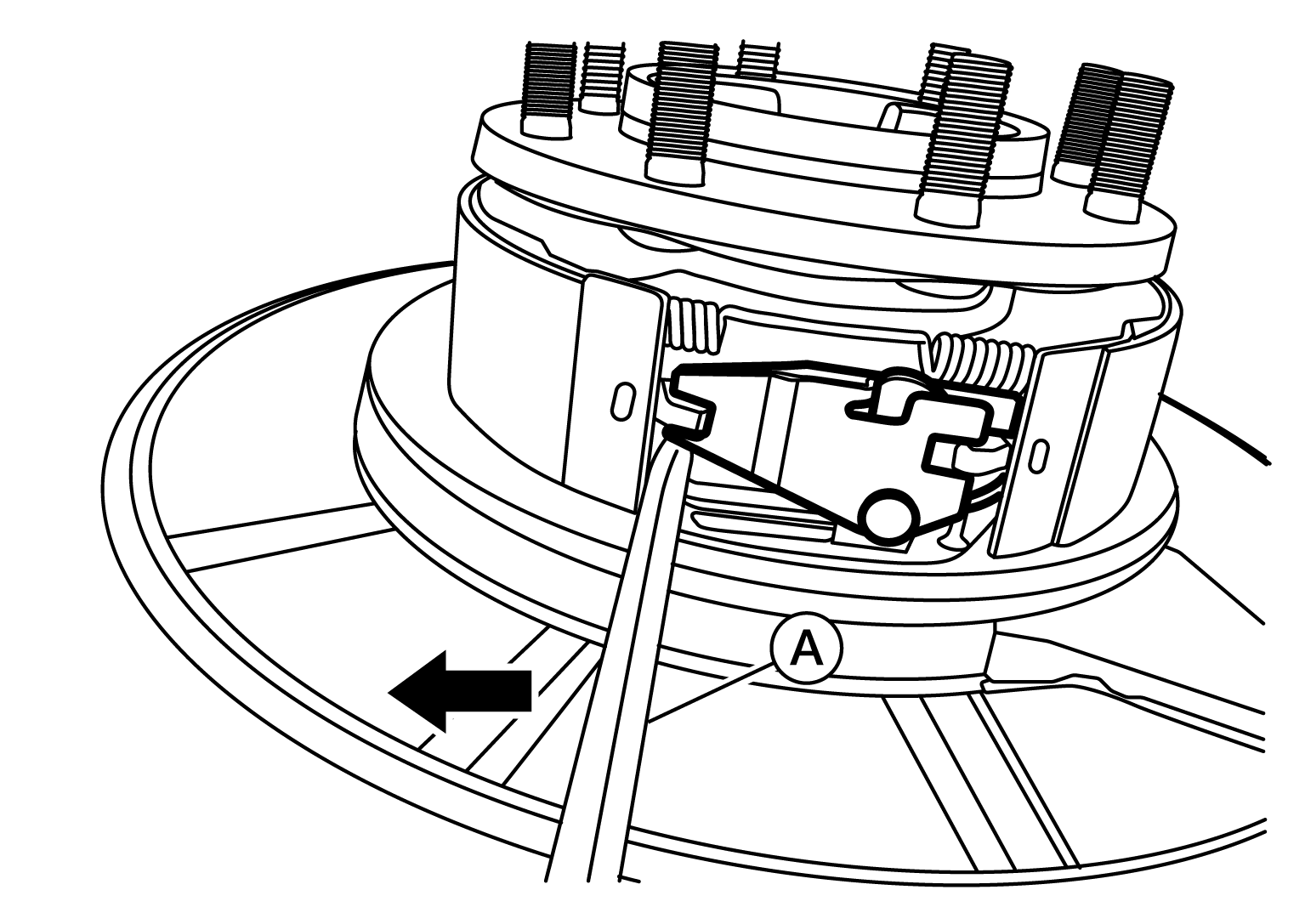

- Using a suitable tool (A), pry gently in the direction shown below, to remove toggle lever.
- Using suitable tool remove the retainers, retainer springs, anti-rattle pins and parking brake shoes.
- Remove the lower return spring from the parking brake shoes.
