Inspection After Removal

Lining Thickness Inspection

• Check thickness (A) of lining.

  Courtesy of NISSAN NORTH AMERICA, INC.

  Wear limit thickness (A)

  : Refer to Parking Brake Drum and Shoes .

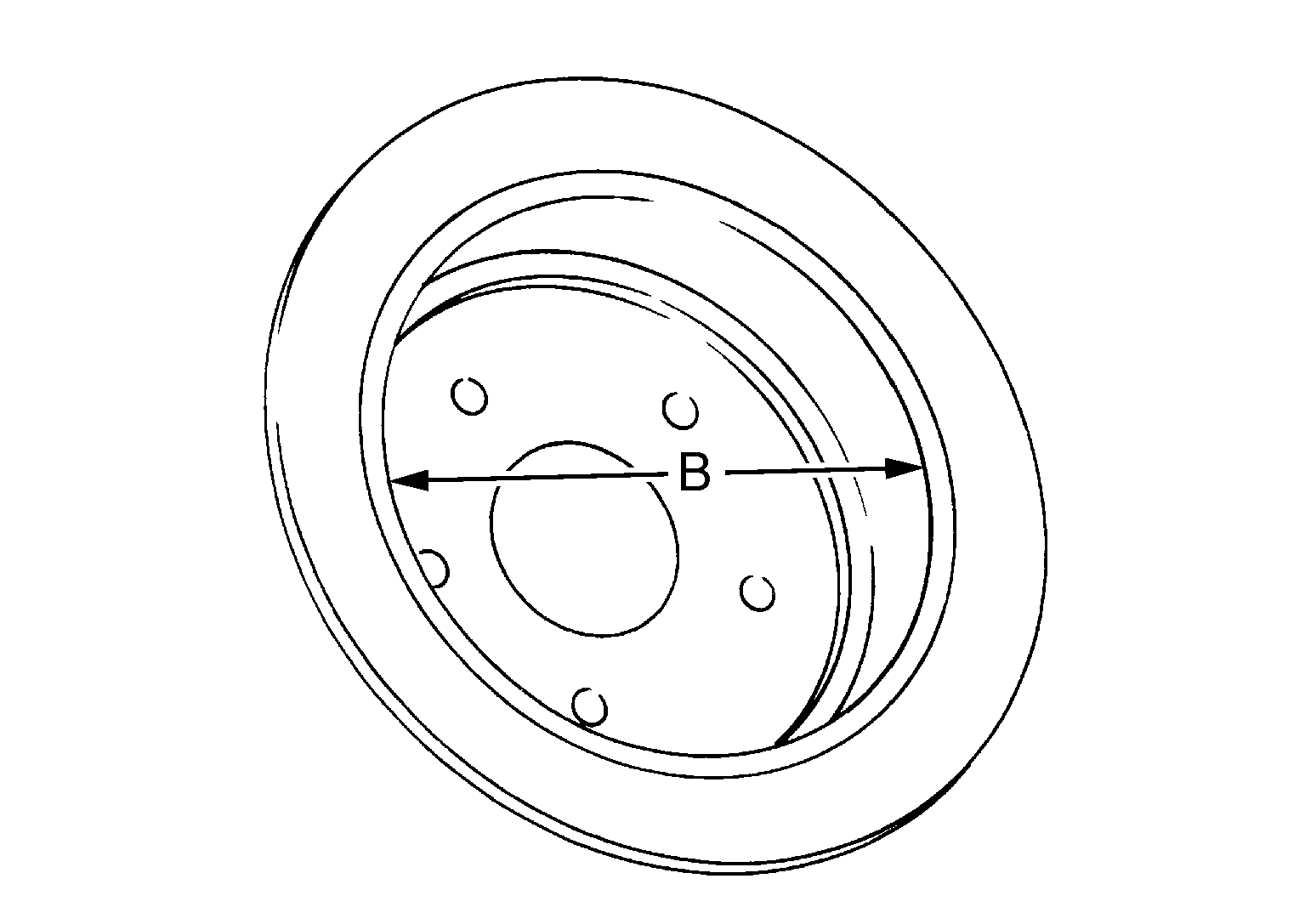

Disc Rotor Inner Diameter Inspection

• Check inner diameter (B) inside drum area of disc rotor, using a suitable tool.

  Courtesy of NISSAN NORTH AMERICA, INC.

  Wear limit of inner diameter (B)

  : Refer to Parking Brake Drum and Shoes .

Other Inspections

• Check shoe sliding surface on back plate for excessive wear and damage.
• Check anti-rattle pins for excessive wear and corrosion.
• Check return springs for sagging.
• Check adjuster for rough operation.
• Check the toggle lever for excessive wear, damage and rust.
• When disassembling adjuster, apply PBC (Poly Butyl Cuprysil) grease or equivalent to the threads.
• Visually check inside the drum area of the disc rotor for cracks and damage.
• Check the inside of the drum for excessive wear with a vernier caliper.
