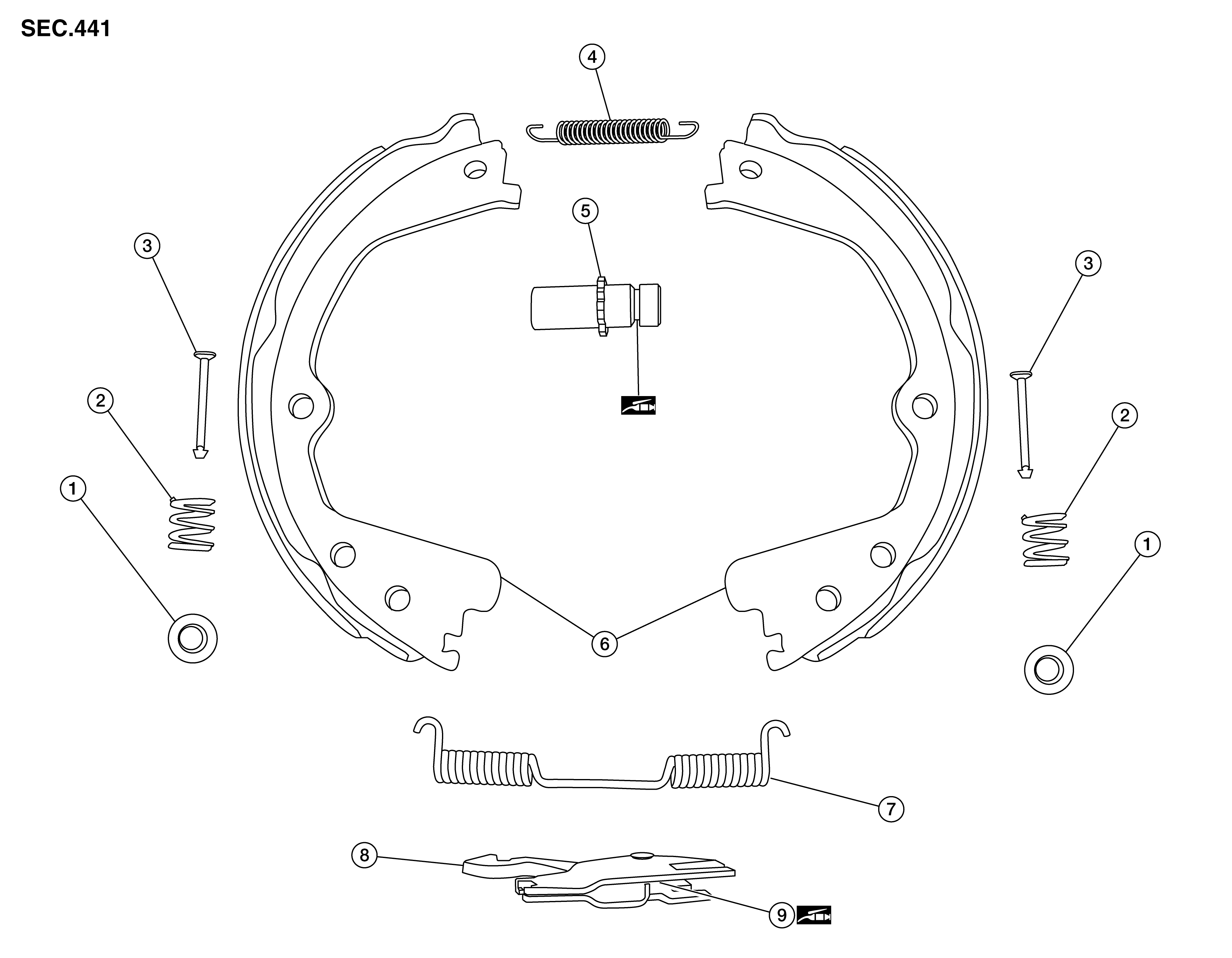

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Retainers
|
2.
|
Retainer springs
|
3.
|
Anti-rattle pins
|
|
4.
|
Upper return spring
|
5.
|
Adjuster
|
6.
|
Parking brake shoes
|
|
7.
|
Lower return spring
|
8.
|
Toggle lever
|
9.
|
Bushing
|
|
|
PBC (Poly Butyl Cuprysil) grease
|
