Parking Brake Pedal Assembly

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Disconnect the parking brake warning lamp switch.

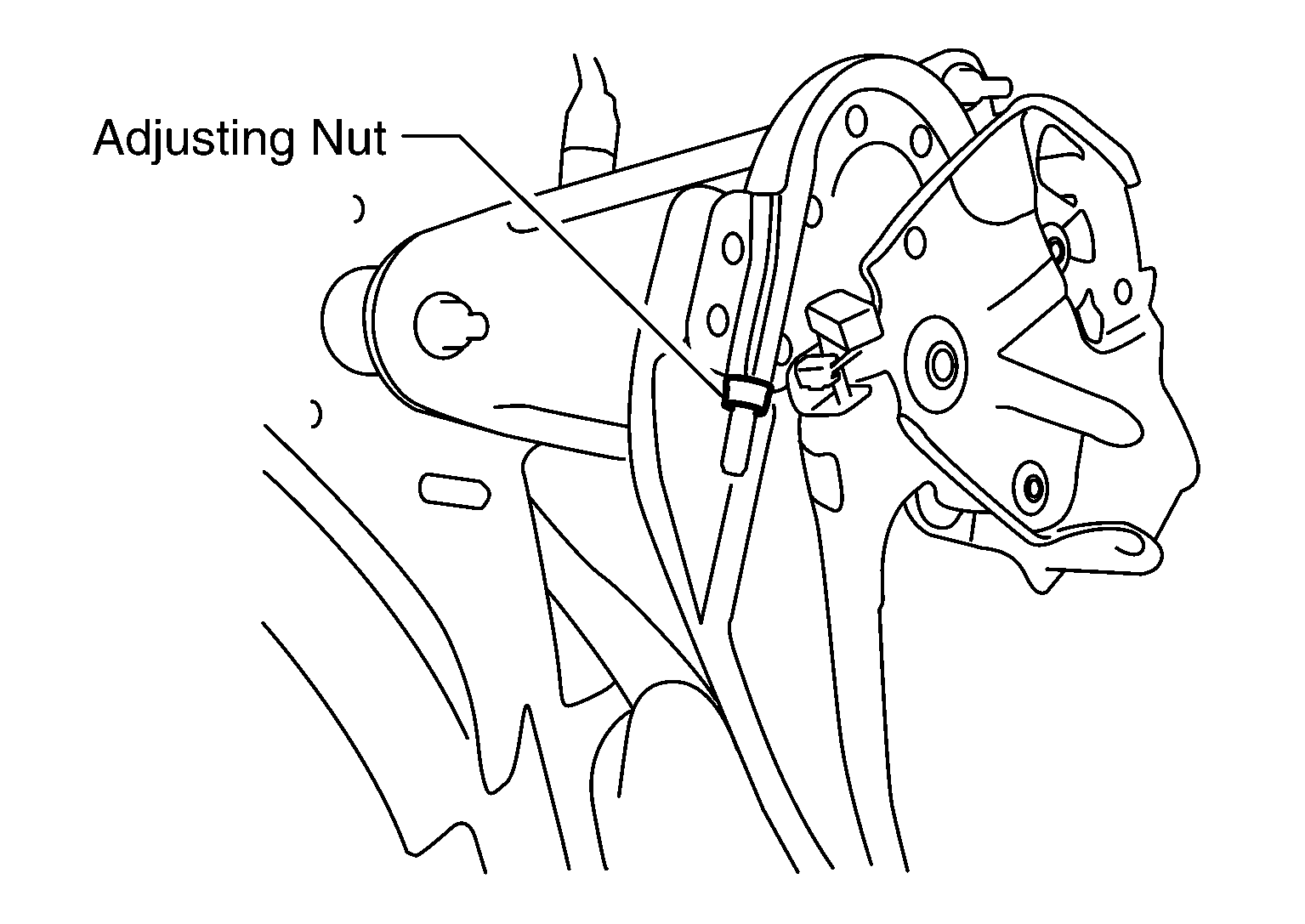

Remove the adjusting nut and discard.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse adjusting nut after removing it.
Remove the lock plate from the front parking brake cable.
Remove the parking brake pedal assembly nuts.
Position the parking brake pedal in the applied position to remove the front parking brake cable from the parking brake pedal assembly.
Remove the parking brake pedal assembly.

Installation

Installation is in the reverse order of removal.

Adjust the parking brake. Refer to Inspection and Adjustment .

CAUTION: Do not reuse adjusting nut after removing it.
