Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

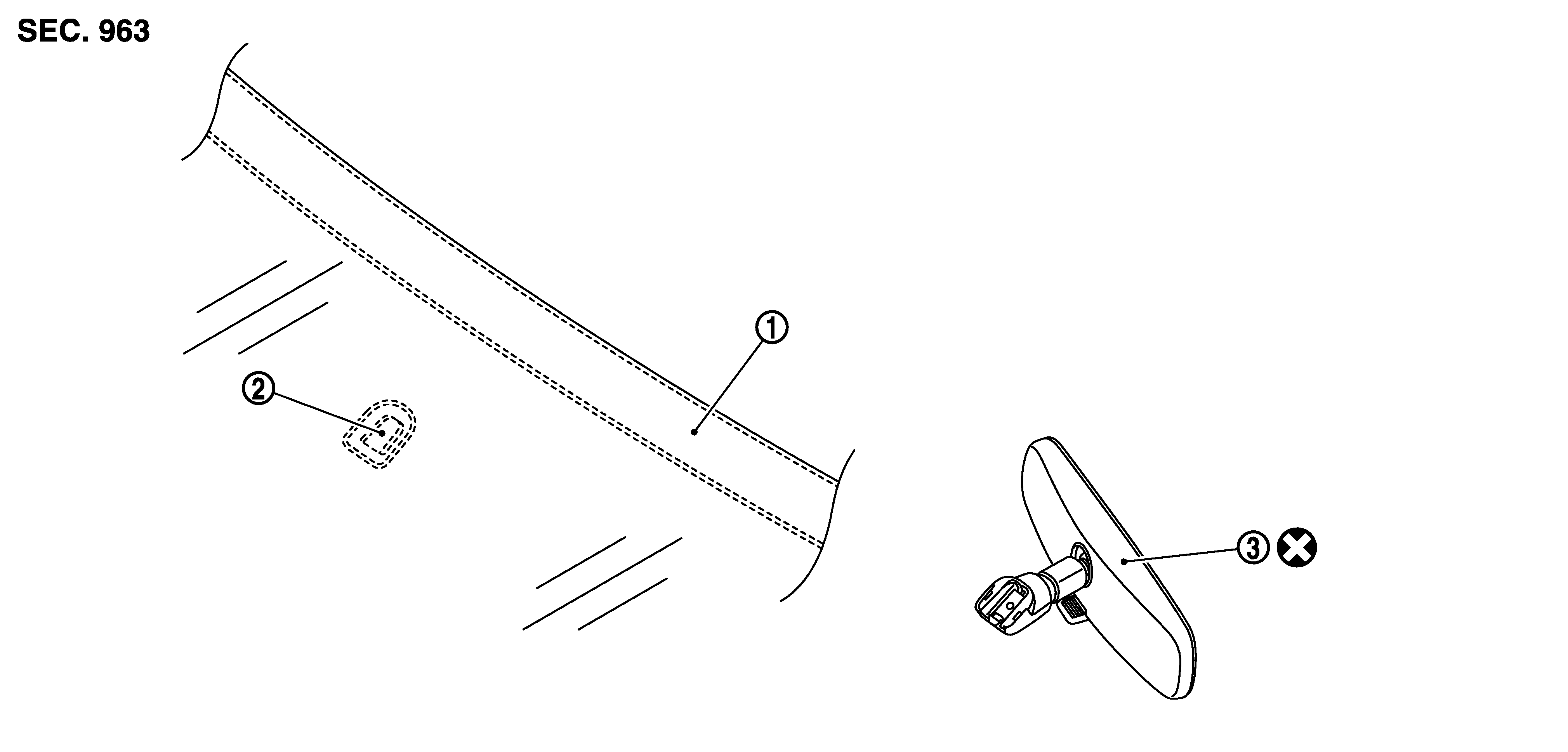

MANUAL MIRROR
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Windshield glass
|
2.
|
Inside mirror base
|
3.
|
Inside mirror assembly
|

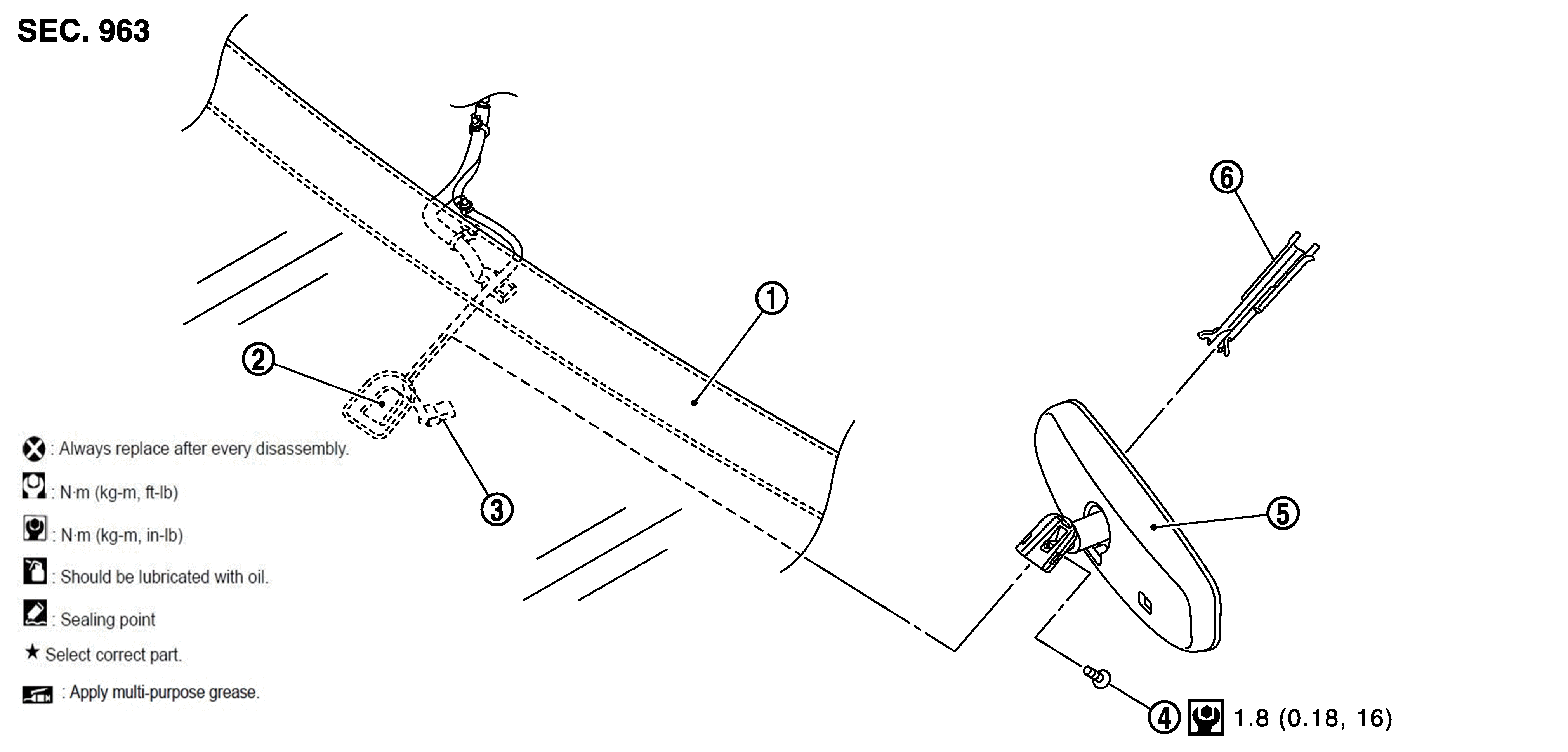

AUTO ANTI-DAZZLE MIRROR
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Windshield glass
|
2.
|
Inside mirror base
|
3.
|
Harness connector
|
|
4.
|
Mirror screw
|
5.
|
Inside mirror assembly
|
6.
|
Inside mirror cover
|
