Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace the step lamp pawls and remove the step lamp from the door, using a suitable tool (A).
    GNSALLIA0065Z-065Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

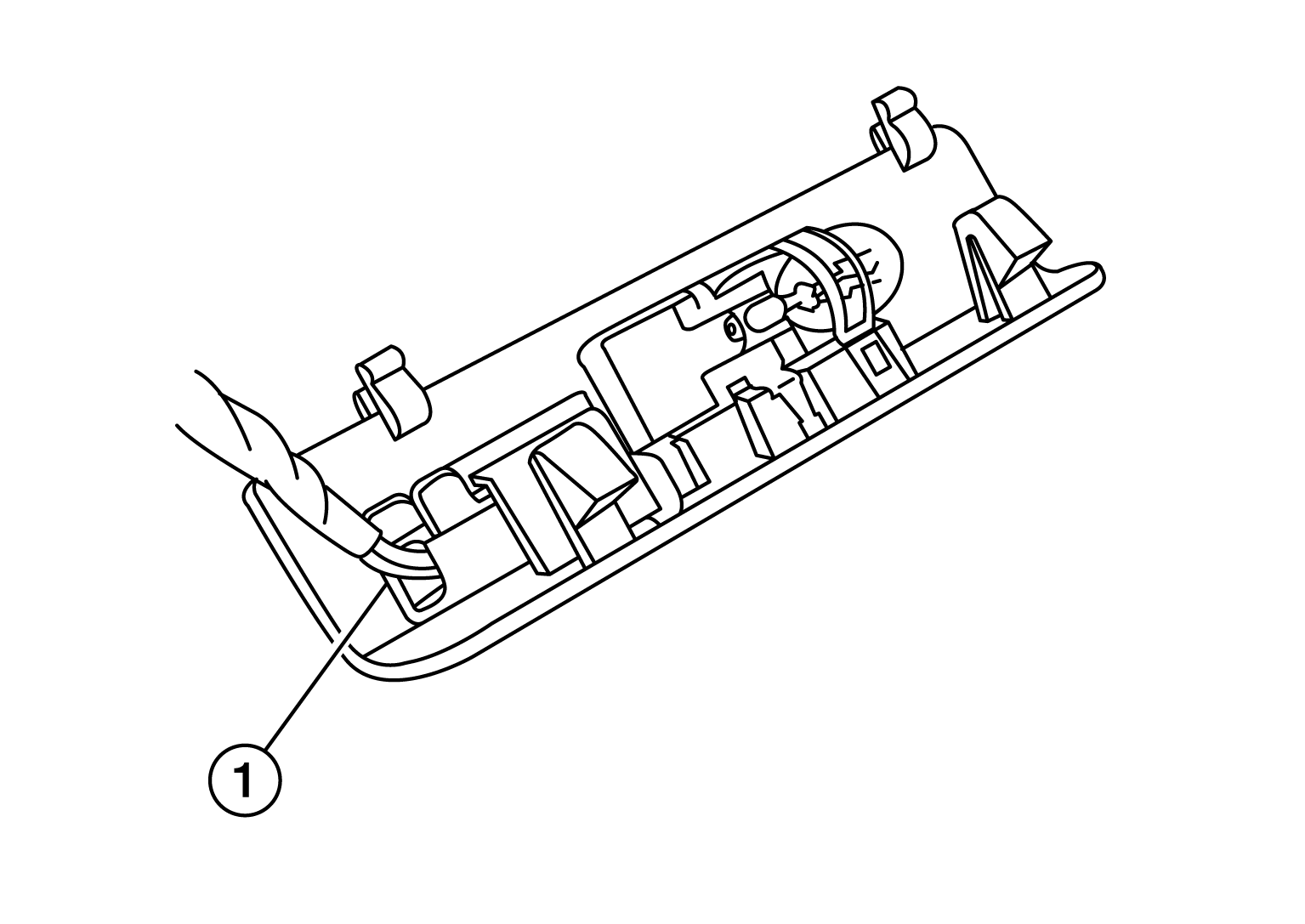

  2. Disconnect harness connector from step lamp (1).
    GNSAWLIA1921Z-921Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the step lamp from the vehicle.
