Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

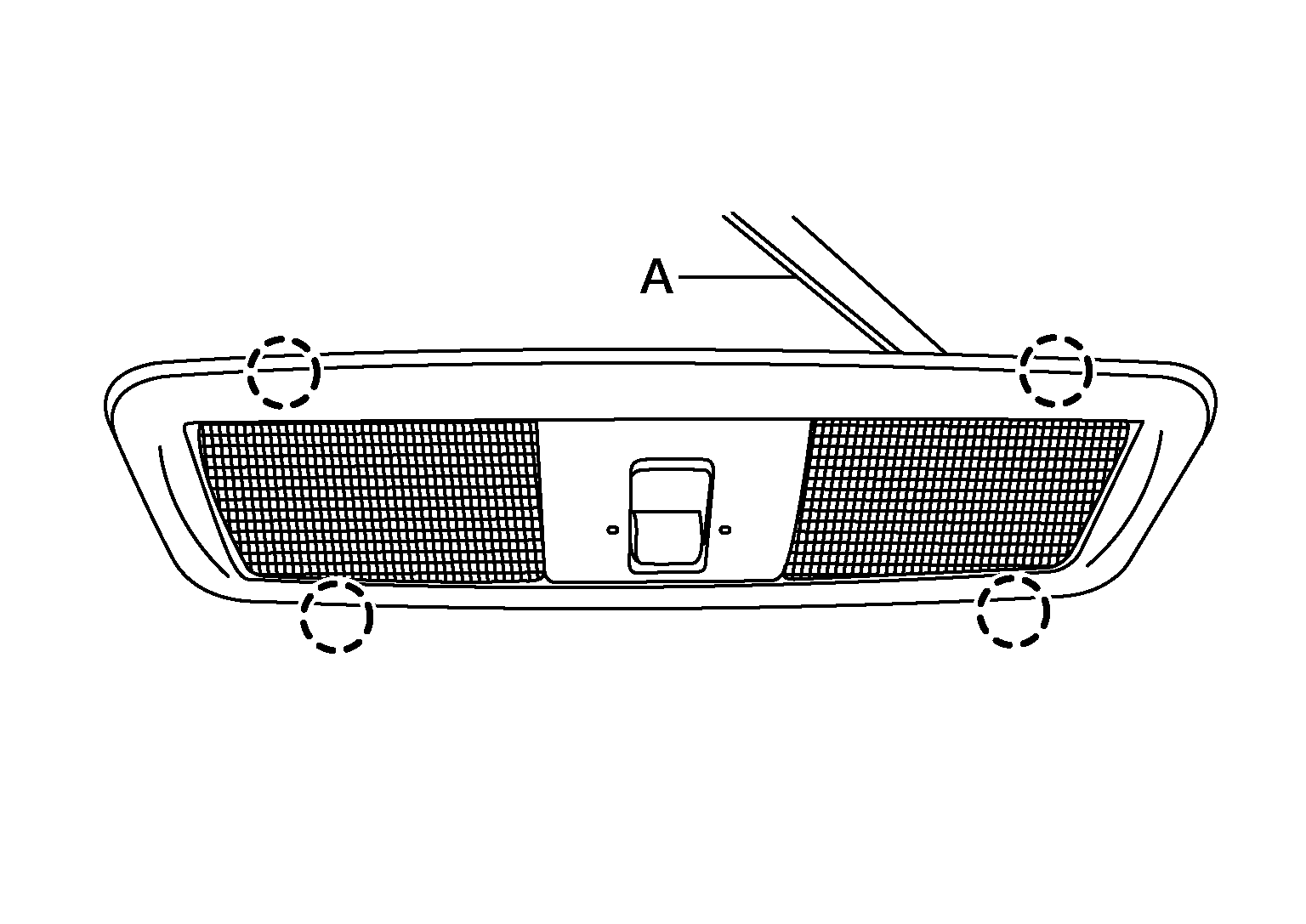

  1. Release the personal lamp pawls and remove the personal lamp from the headlining, using a suitable tool (A).
    GNSALLIA0063Z-063Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  2. Disconnect the harness connector from personal lamp.
  3. Remove the personal lamp from the headlining.
