Personal Lamp Bulb
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

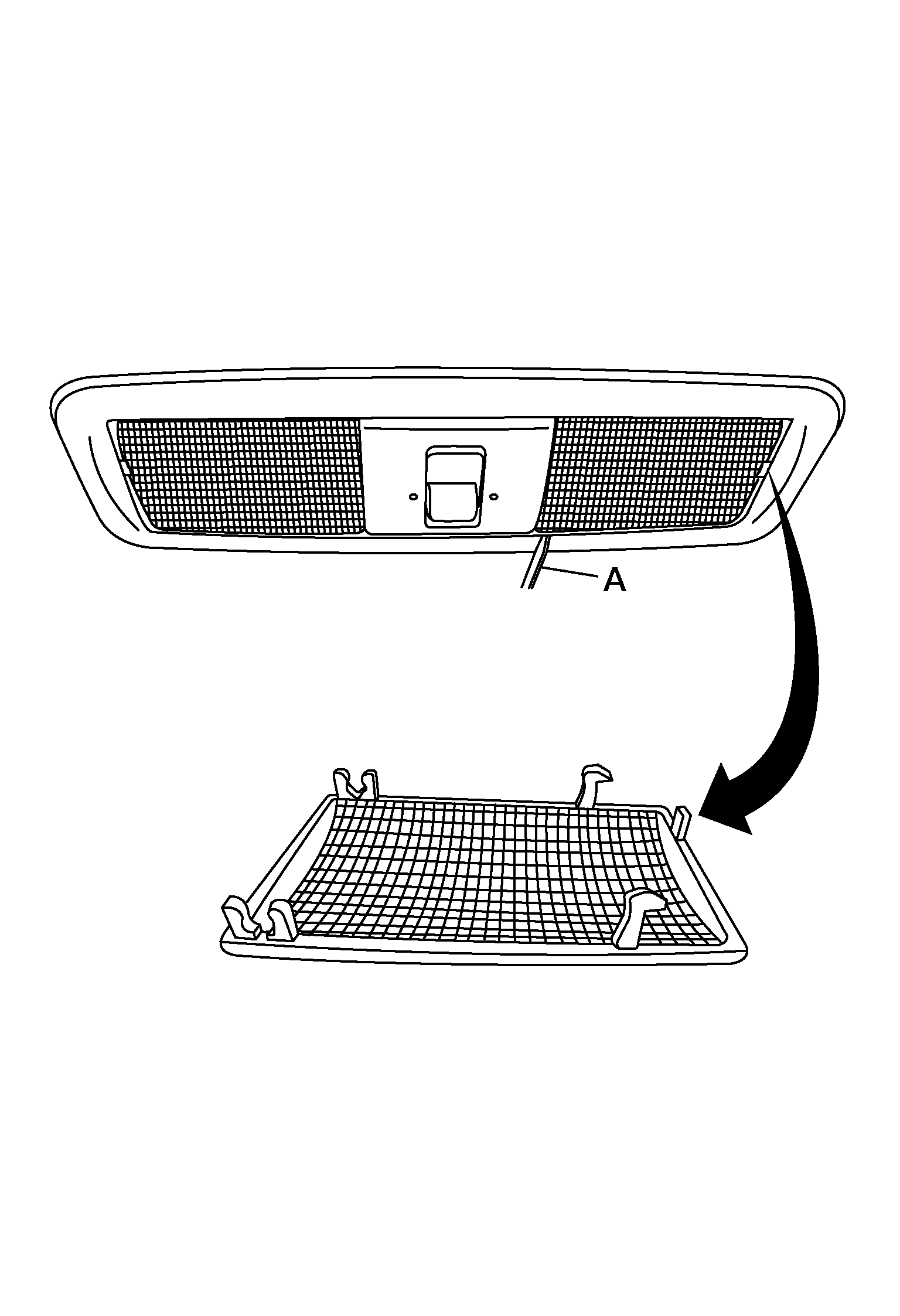

- Release the personal lamp lens pawls, then remove the personal lamp lens, using a suitable tool (A).
 Courtesy of NISSAN NORTH AMERICA, INC.
|

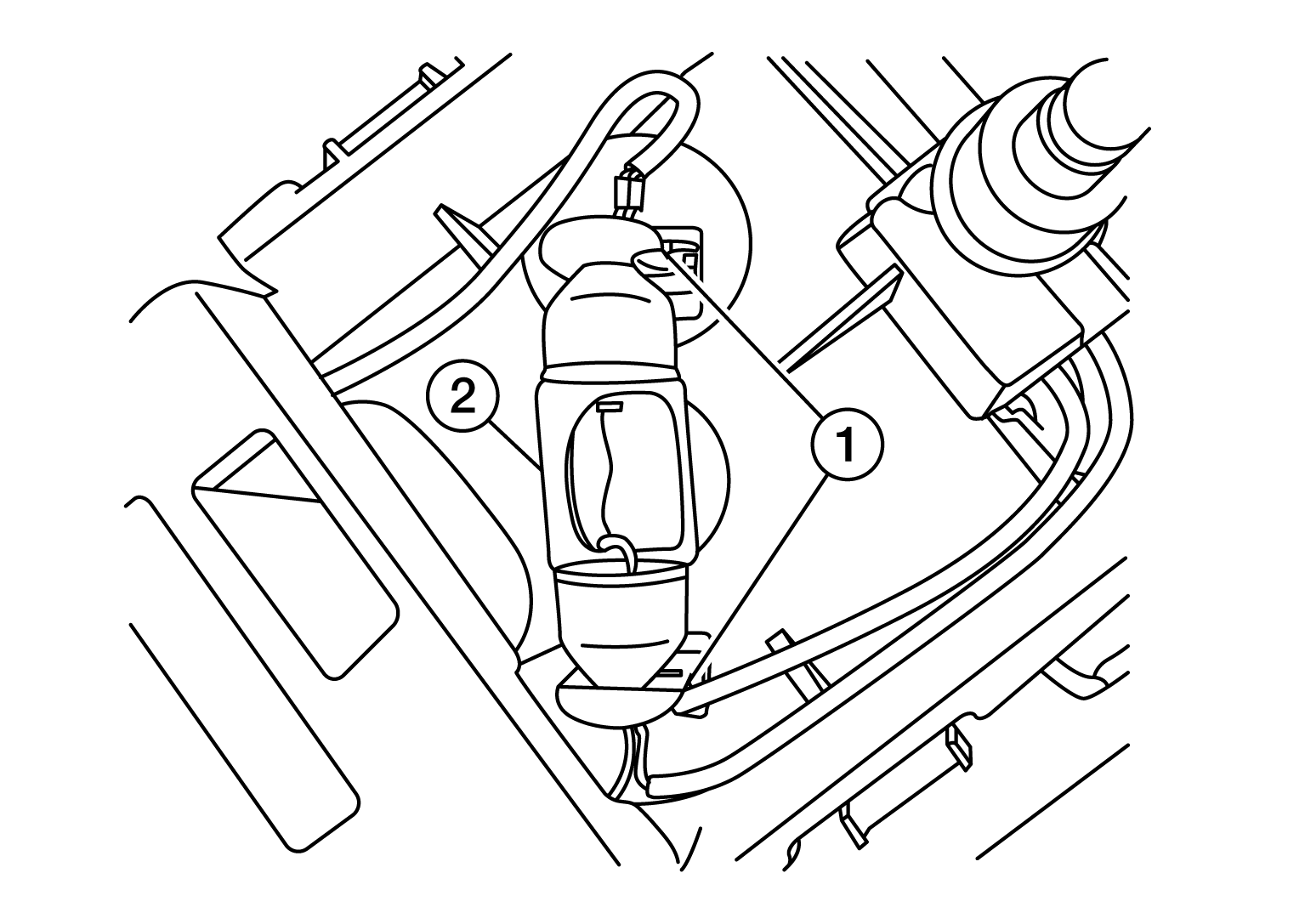

- Release the personal lamp bulb retainers (1), then pull the bulb (2) straight out to remove.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Install a new personal lamp bulb securely into the retainers and install the lens into the personal lamp.
