Removal and Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.
CAUTION:
Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to the bulb.
- Remove the front room/map lamp assembly.

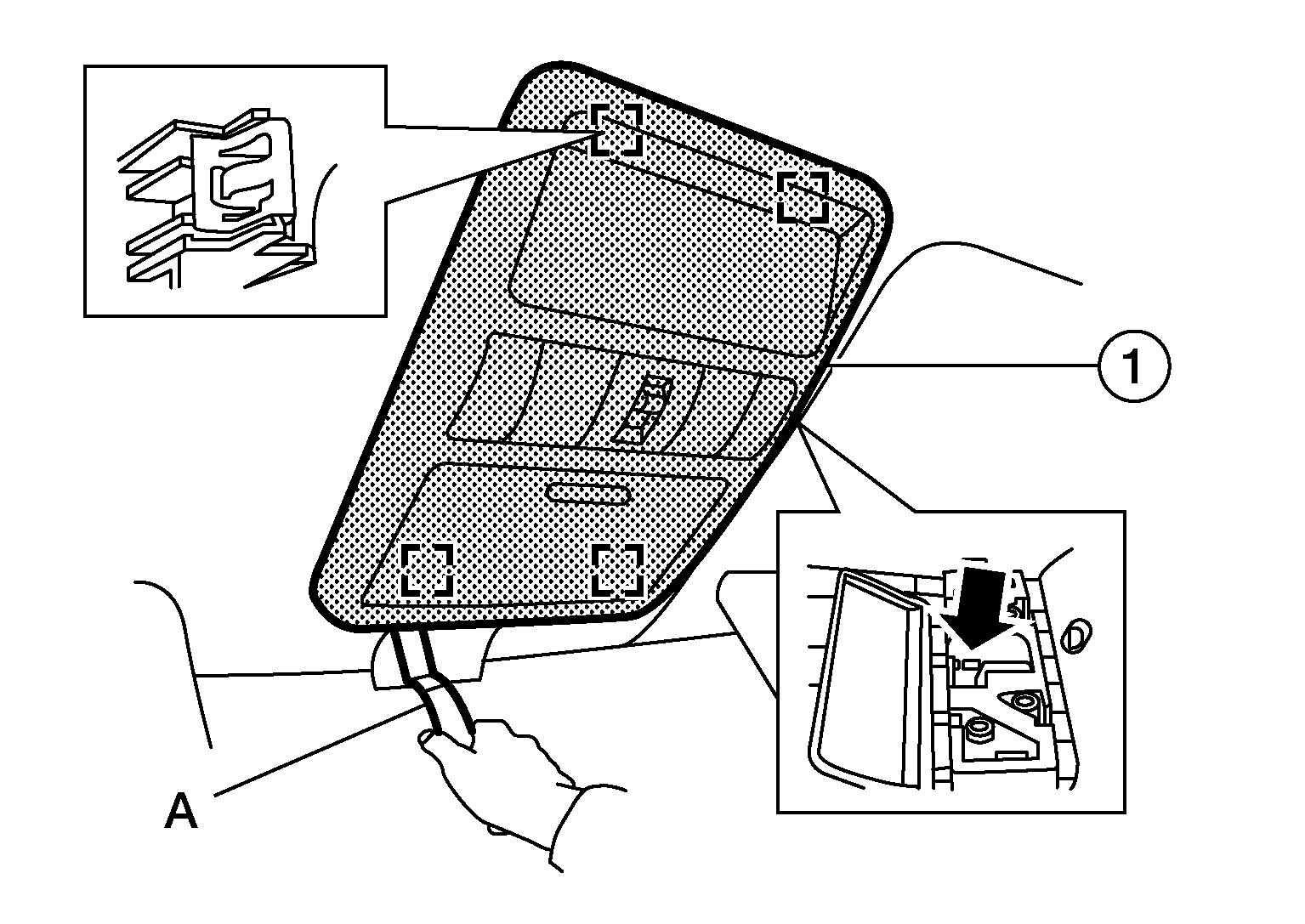

- For high roof models, release the pawls beginning at the front edge using a suitable tool (A), disconnect the harness connectors from front room/map lamp assembly (1) and remove.
: Front
: Pawl

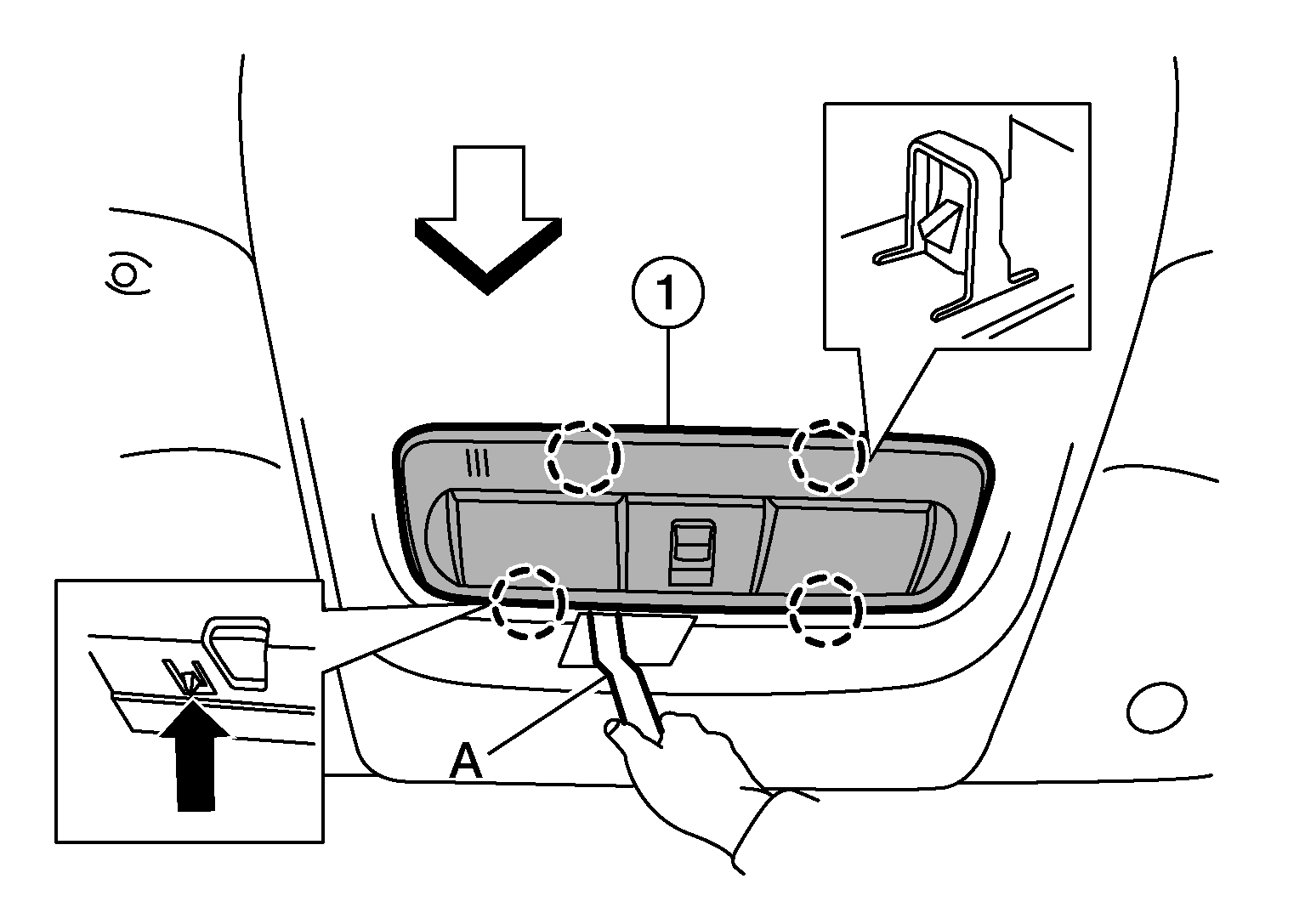

- For standard roof models, release the metal clips beginning at the front edge using a suitable tool (A), disconnect the harness connectors from front room/map lamp assembly (1) and remove.
: Metal clip
- For high roof models, release the pawls beginning at the front edge using a suitable tool (A), disconnect the harness connectors from front room/map lamp assembly (1) and remove.
