Removal and Installation - Steering Lock Unit: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery cables and wait at least three minutes. Refer to Removal and Installation .
- Remove the steering column. Refer to Removal and Installation .

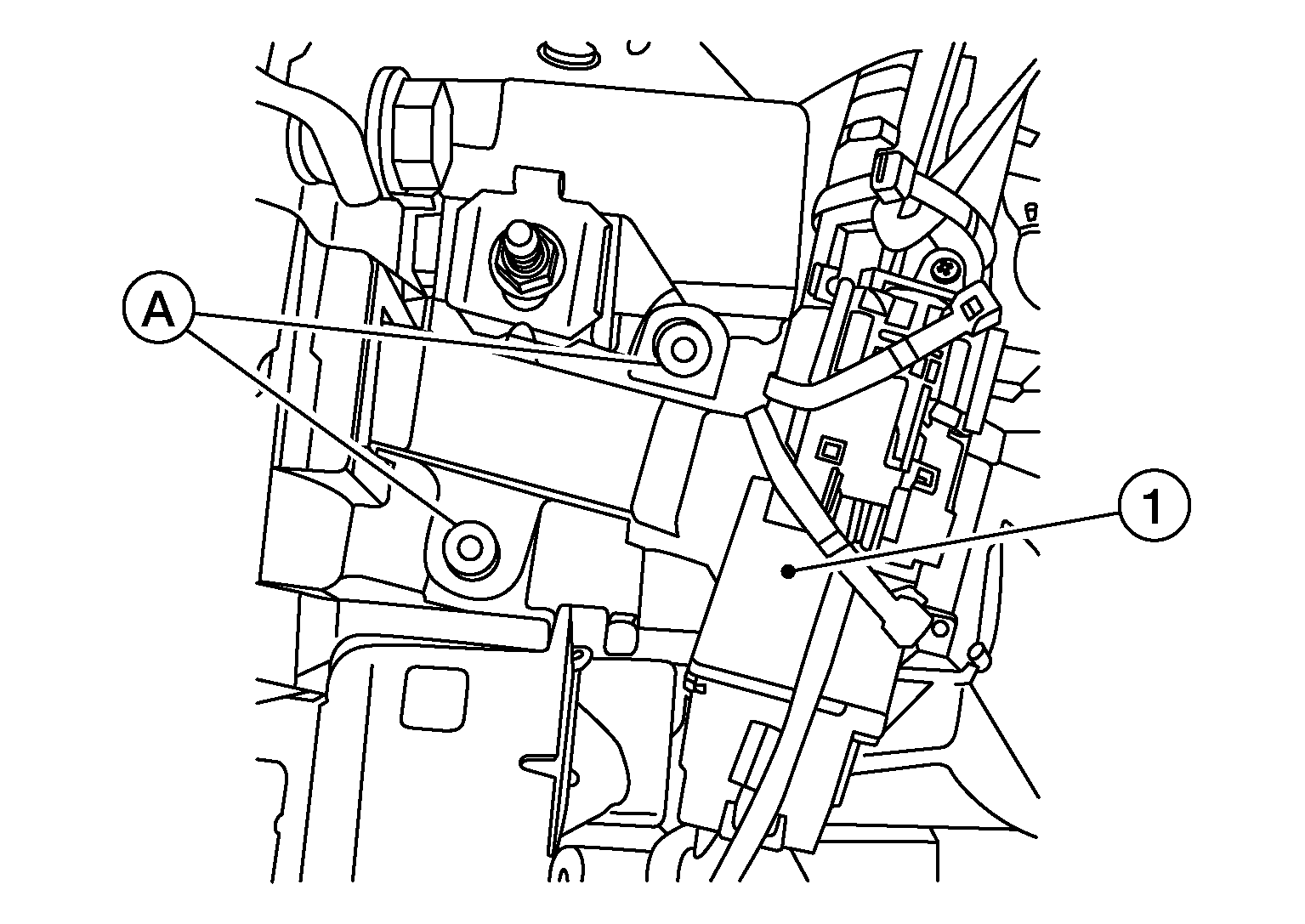

- Using suitable tool, remove the steering lock unit tamper resistant self-shear type screws (A) and remove the steering lock unit (1) from the steering column.CAUTION: Do not reuse screws. Replace with new tamper resistant self-shear type screws.
- If necessary, remove the NATS antenna amp. (if equipped). Refer to Removal and Installation .
- If necessary, remove the key cylinder. Refer to Removal and Installation - Key Cylinder .
