Removal and Installation - Key Cylinder: Removal
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery cables and wait at least three minutes. Refer to Removal and Installation .
- Remove cluster lid A. Refer to Removal and Installation .
- Remove upper and lower steering column covers. Refer to Removal and Installation .
- If equipped, remove the NATS antenna amp. Refer to Removal and Installation .
- Turn the key to the "ACC" position.

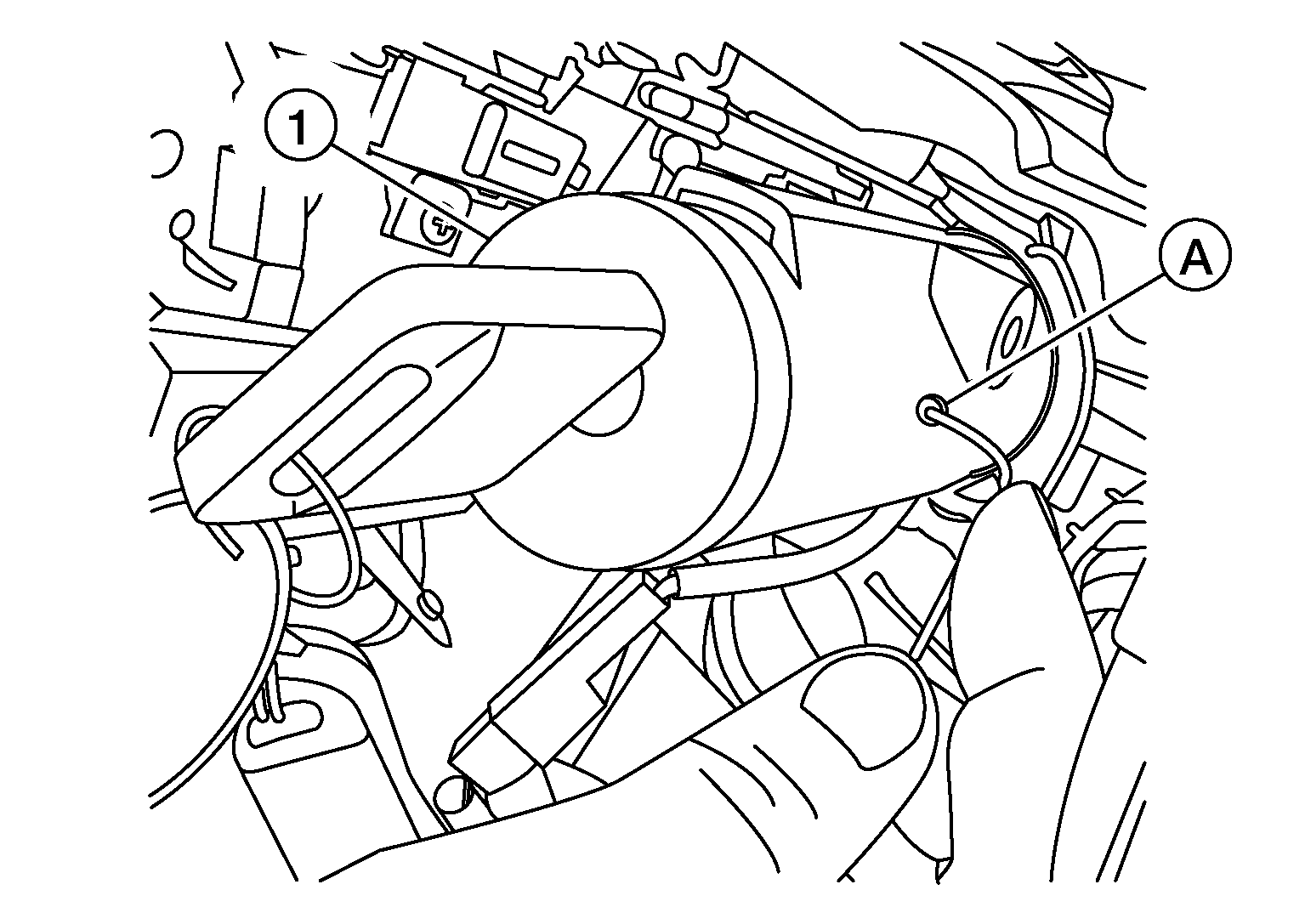

- Using suitable tool, depress the key cylinder release button (A).
- While holding the steering key cylinder release button depressed, remove the key cylinder (1) from the steering lock unit.
