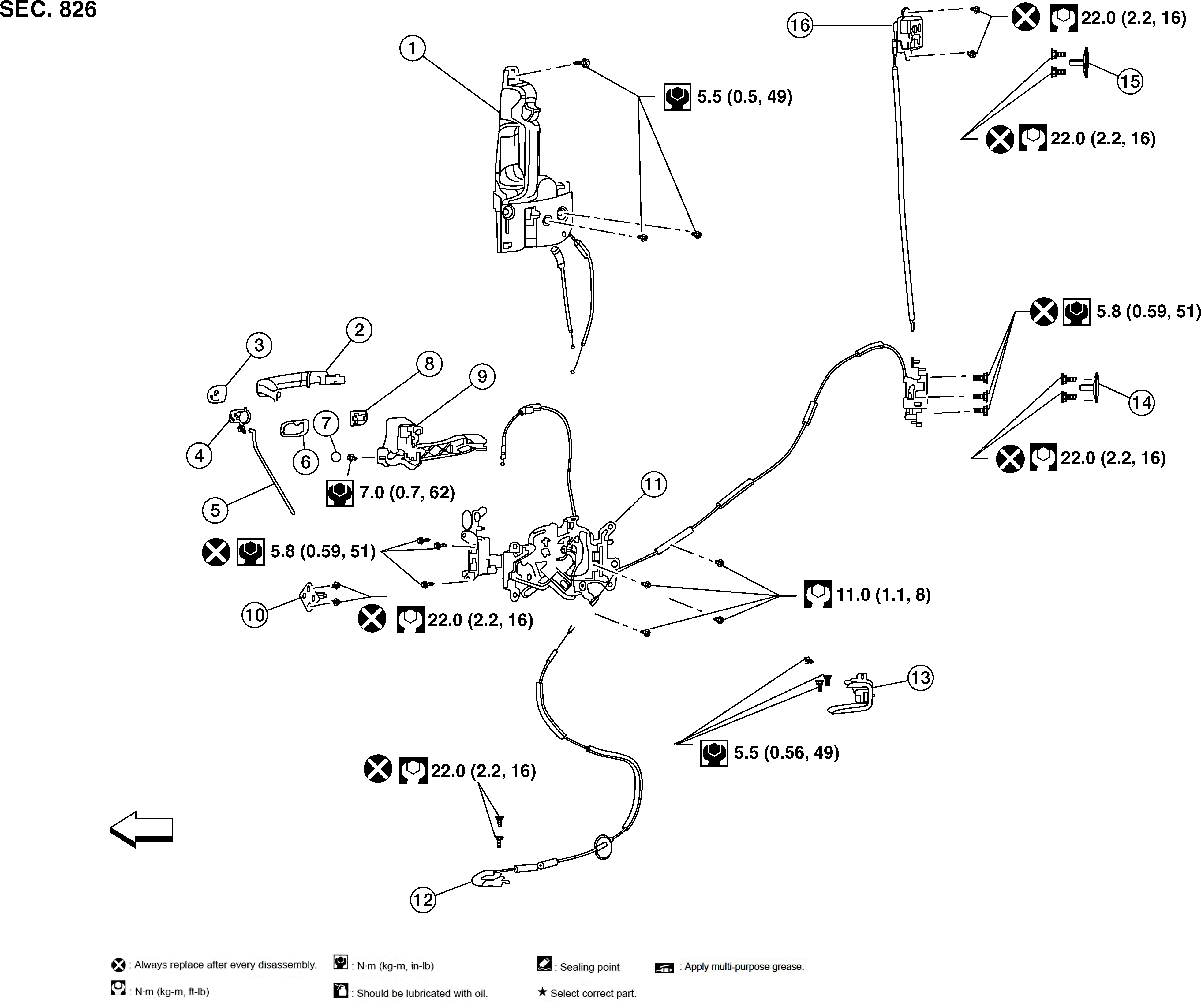

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Inside handle assembly |
2. |
Outside handle |
3. |
Key cylinder escutcheon |
|
4. |
Key cylinder assembly |
5. |
Key cylinder rod |
6. |
Front gasket |
|
7. |
Grommet |
8. |
Rear gasket |
9. |
Outside handle bracket |
|
10. |
Front striker |
11. |
Slide door lock assembly |
12. |
Front lower latch |
|
13. |
Slide door stop lower |
14. |
Rear striker lower |
15. |
Rear striker upper (if equipped) |
|
16. |
Rear upper latch (if equipped) |
|
Front |
