Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

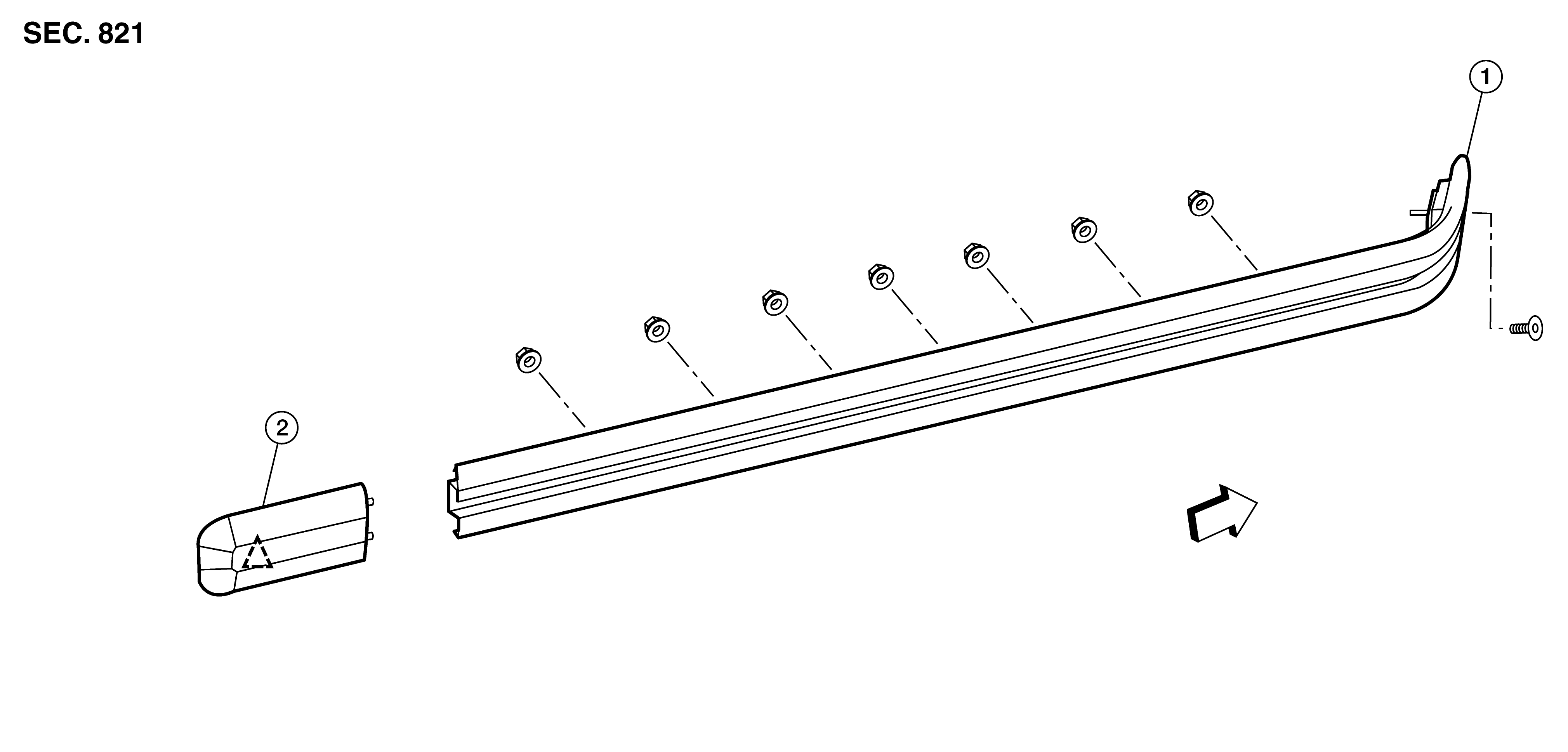

SLIDE DOOR UPPER RAIL
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Slide door upper rail
|
2.
|
Slide door upper rail end
|
|
Clip
|
|
|
Front
|

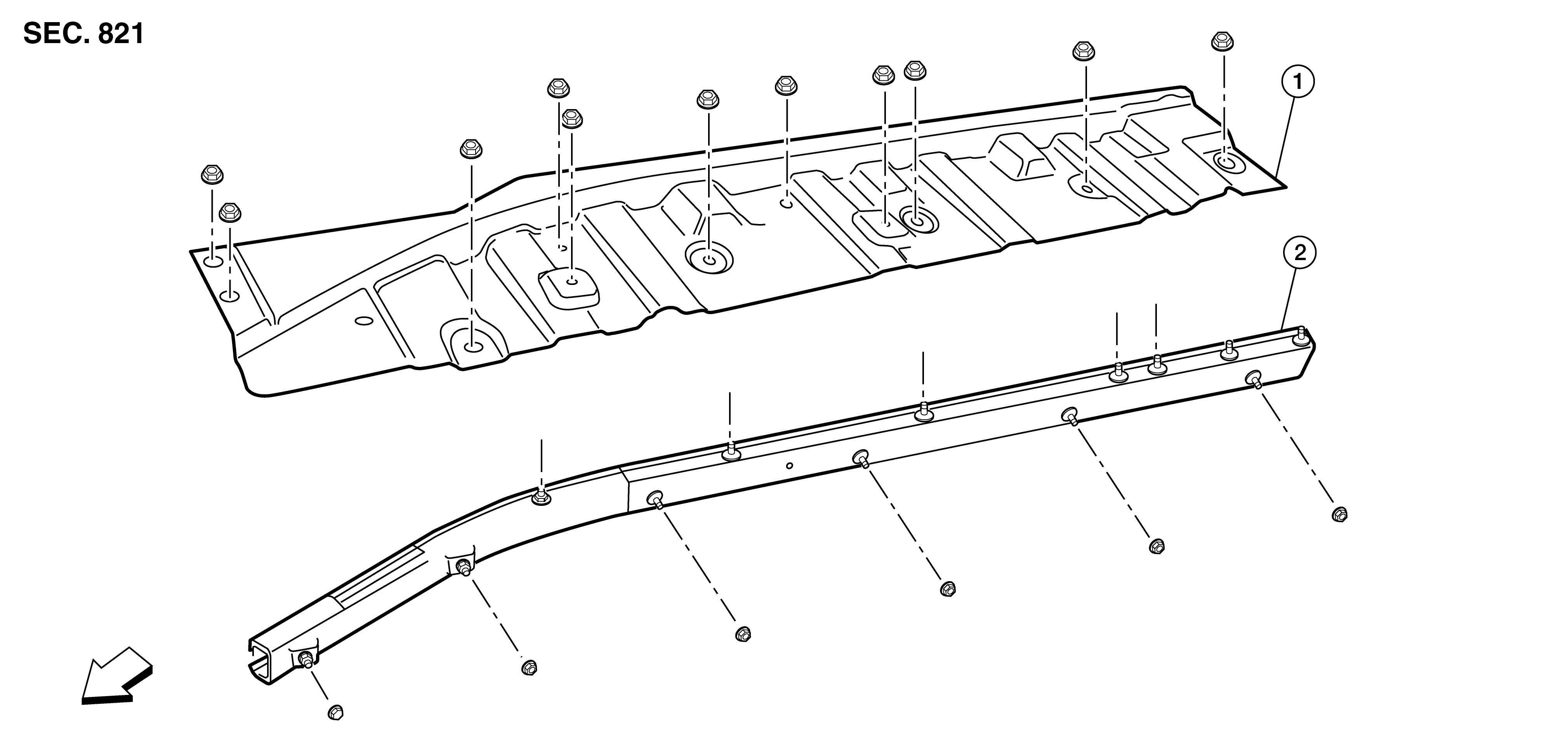

SLIDE DOOR LOWER RAIL
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Slide door step plate
|
2.
|
Slide door lower rail
|
|
Front
|
