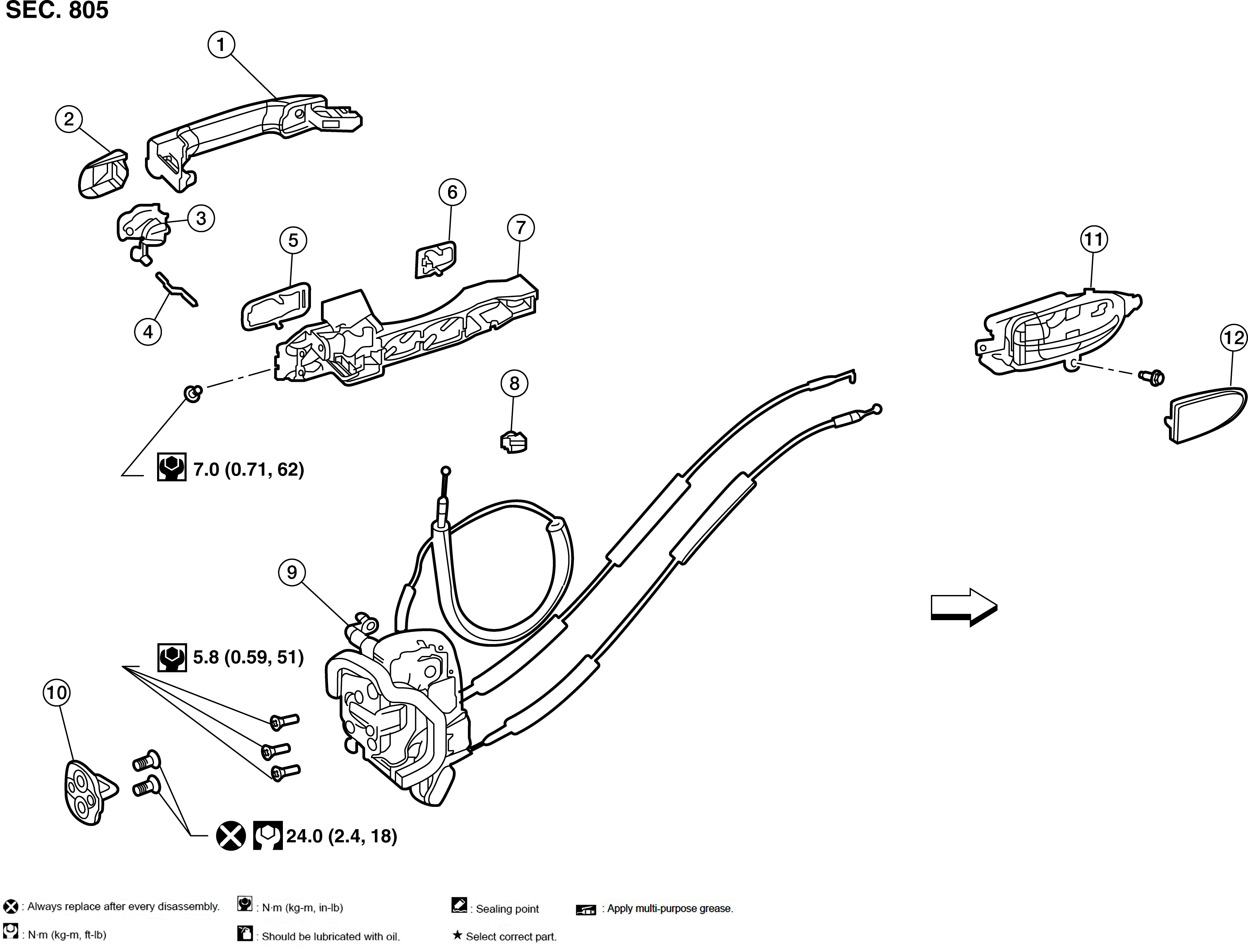

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Outside handle |
2. |
Door key cylinder escutcheon (driver side) |
3. |
Door key cylinder (driver side) |
|
4. |
Door key cylinder rod (driver side) |
5. |
Rear gasket |
6. |
Front gasket |
|
7. |
Outside handle bracket |
8. |
Door key cylinder rod holder |
9. |
Door lock assembly |
|
10. |
Front door striker |
11. |
Inside handle |
12. |
Inside door lock lever |
|
|
Front |
