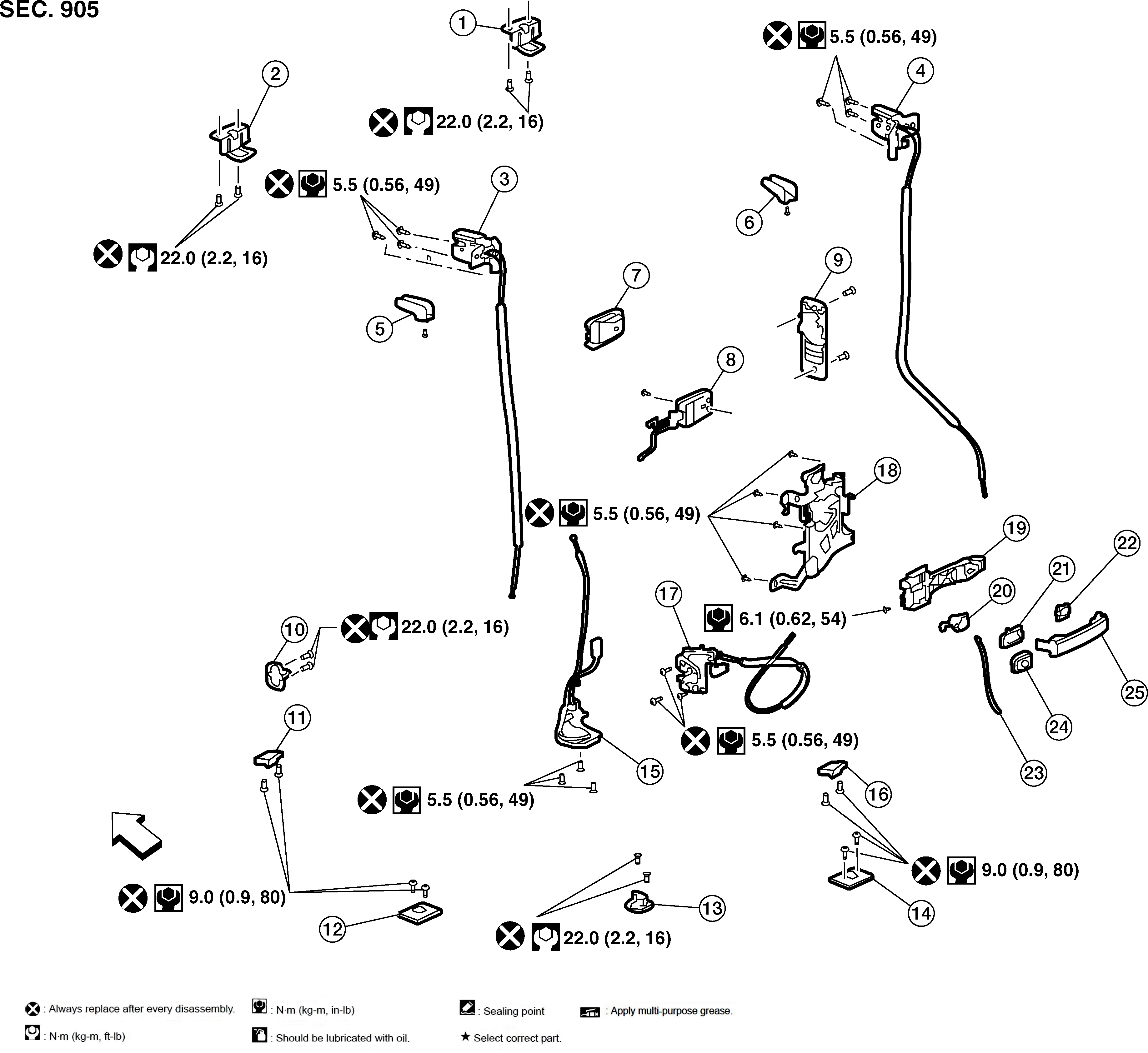

Exploded View
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Upper striker (RH) |
2. |
Upper striker (LH) |
3. |
Upper latch and cable (LH) |
|
4. |
Upper latch and cable (RH) |
5. |
Cover (LH) |
6. |
Cover (RH) |
|
7. |
Inside handle lever |
8. |
Inside handle assembly |
9. |
Side handle |
|
10. |
Center striker |
11. |
Lower dovetail (LH) (door) |
12. |
Lower dovetail (LH) (body) |
|
13. |
Lower striker |
14. |
Lower dovetail (RH) (body) |
15. |
Lower latch and cable |
|
16. |
Lower dovetail (RH) (door) |
17. |
Center latch and cable |
18. |
Door lock assembly |
|
19. |
Outside handle bracket |
20. |
Key cylinder assembly |
21. |
Outside handle gasket (LH) |
|
22. |
Outside handle gasket (RH) |
23. |
Key cylinder rod |
24. |
Key cylinder escutcheon |
|
25. |
Outside handle |
|
Front |
