Method Of Starting

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio system OFF.

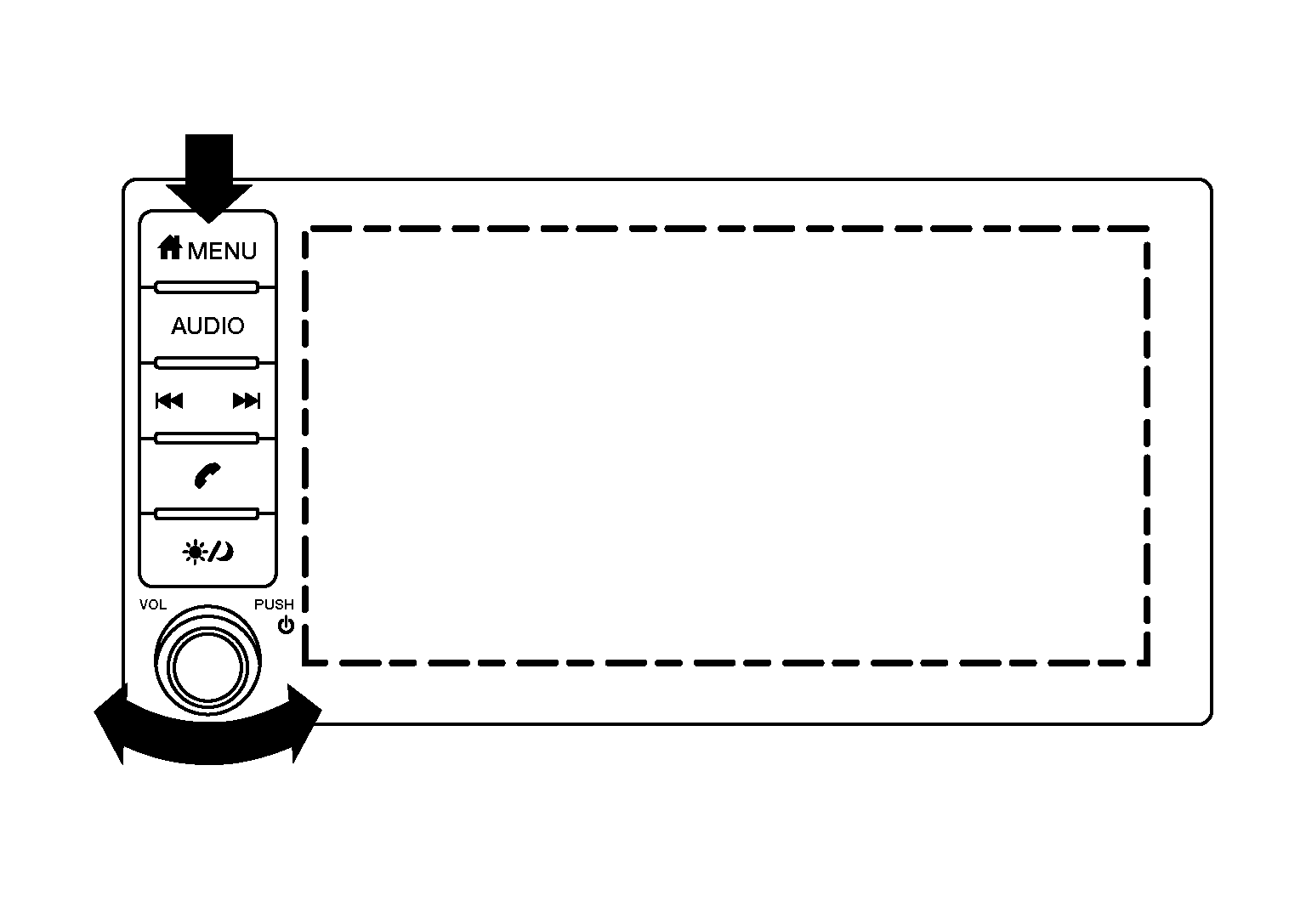

  3. While pressing the Menu button, turn the VOL dial counterclockwise and clockwise 30 or more clicks. Shifting from current screen to previous screen is performed by pressing the BACK icon on the touch screen.
    GNSAWNIA0205GB-205Courtesy of NISSAN NORTH AMERICA, INC.

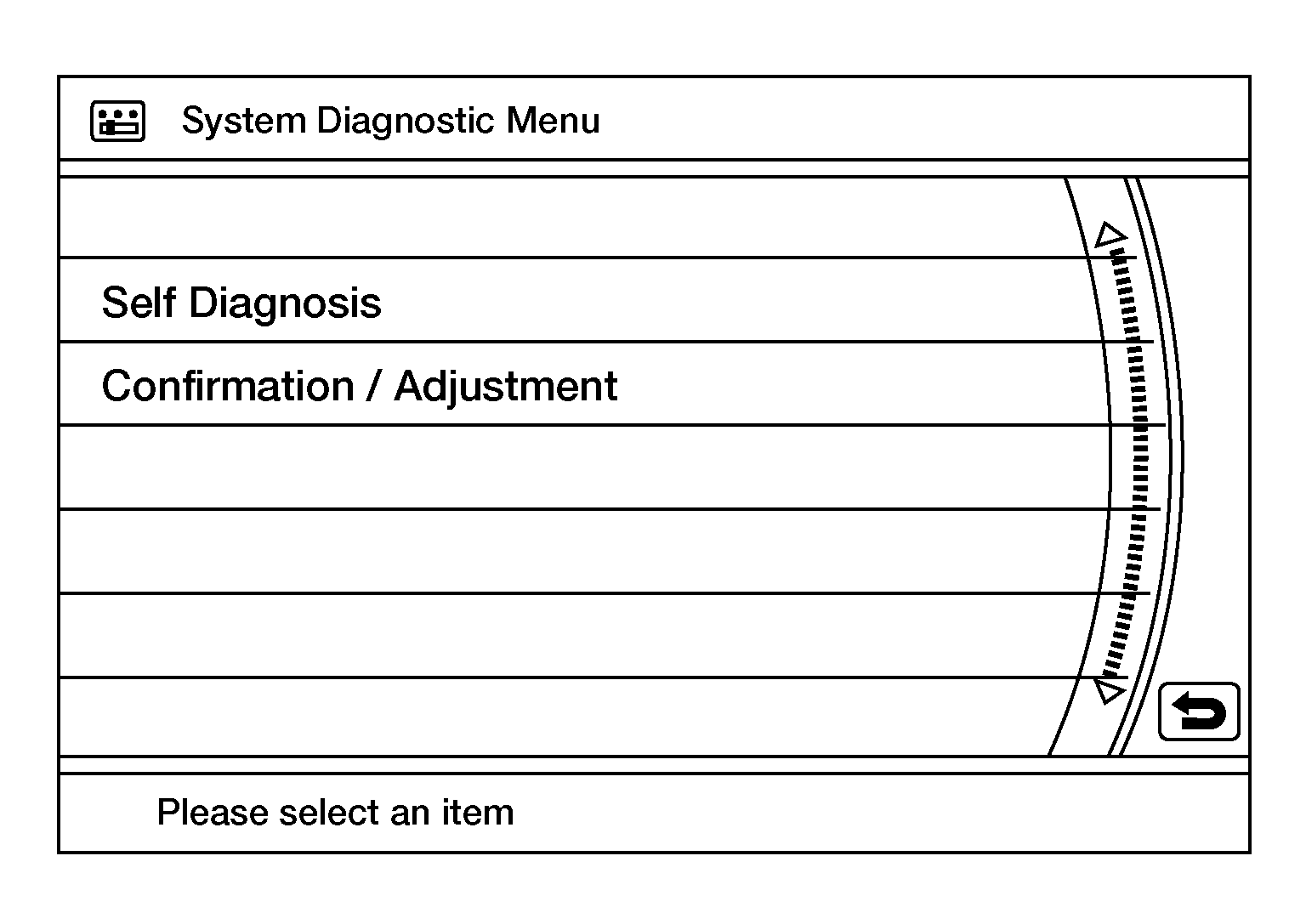

  4. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.
    G04889828Courtesy of NISSAN NORTH AMERICA, INC.
