Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front pillar finisher. Refer to Removal and Installation .

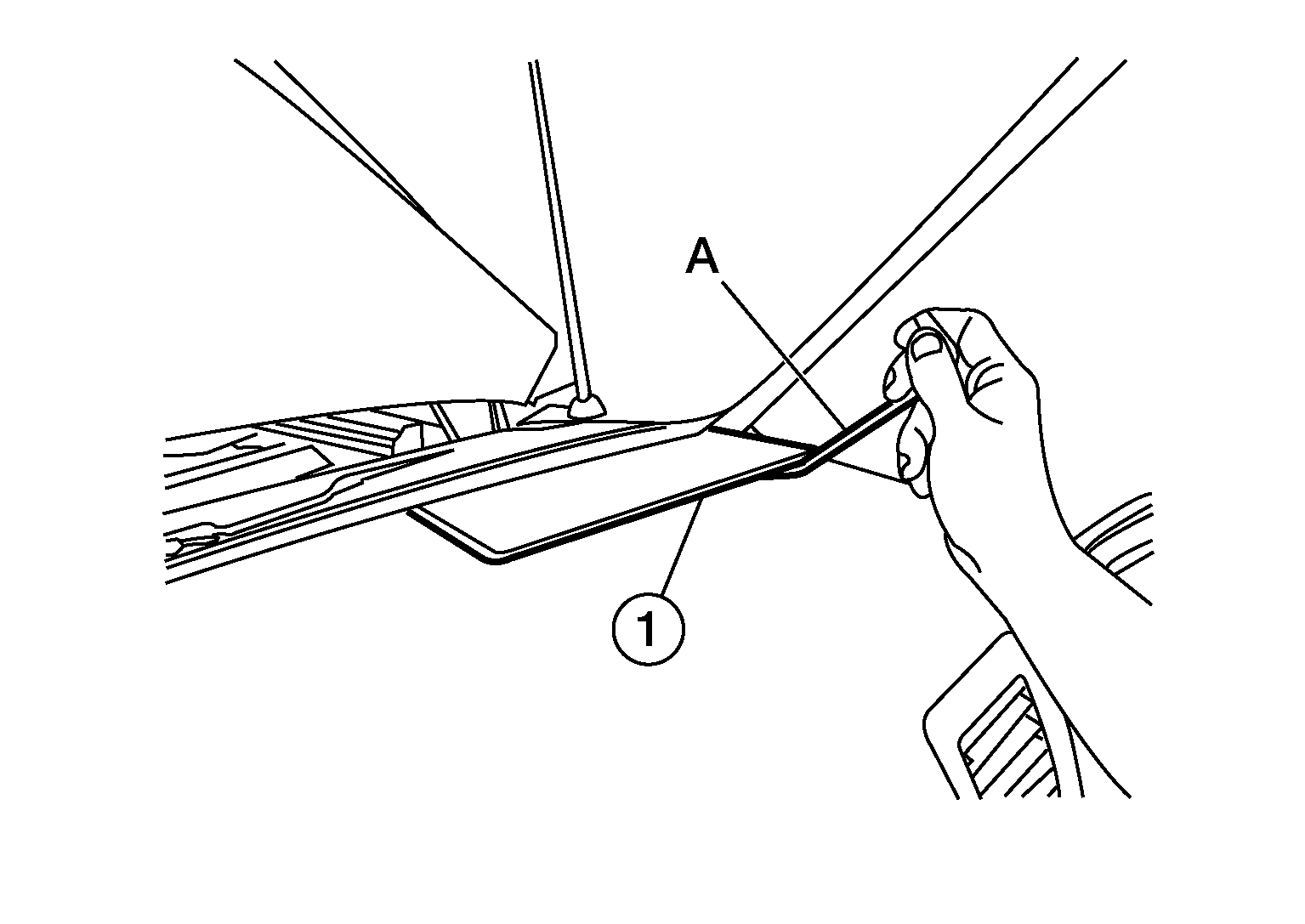

  2. Remove tweeter grille (1) using a suitable tool (A).
    GNSALNIA1265Z-265Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use a plastic suitable tool to prevent damage to the tweeter speaker grille and the instrument panel.

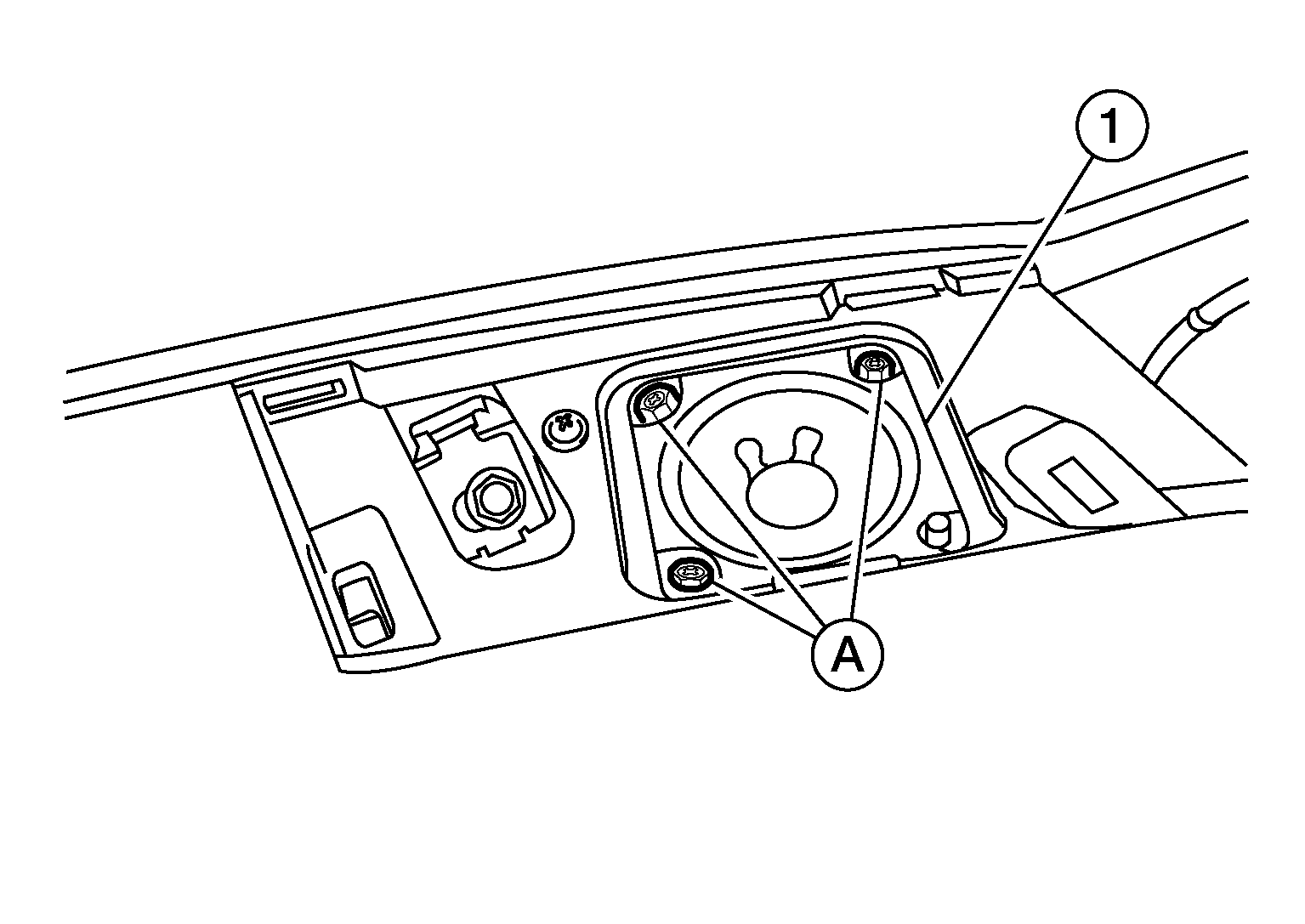

  3. Remove the tweeter screws (A).
    GNSALNIA1266Z-266Courtesy of NISSAN NORTH AMERICA, INC.
  4. Lift the front tweeter out of the instrument panel, disconnect the harness connector from the tweeter (1) and remove.
