Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear headlining. Refer to Rear Headlining .

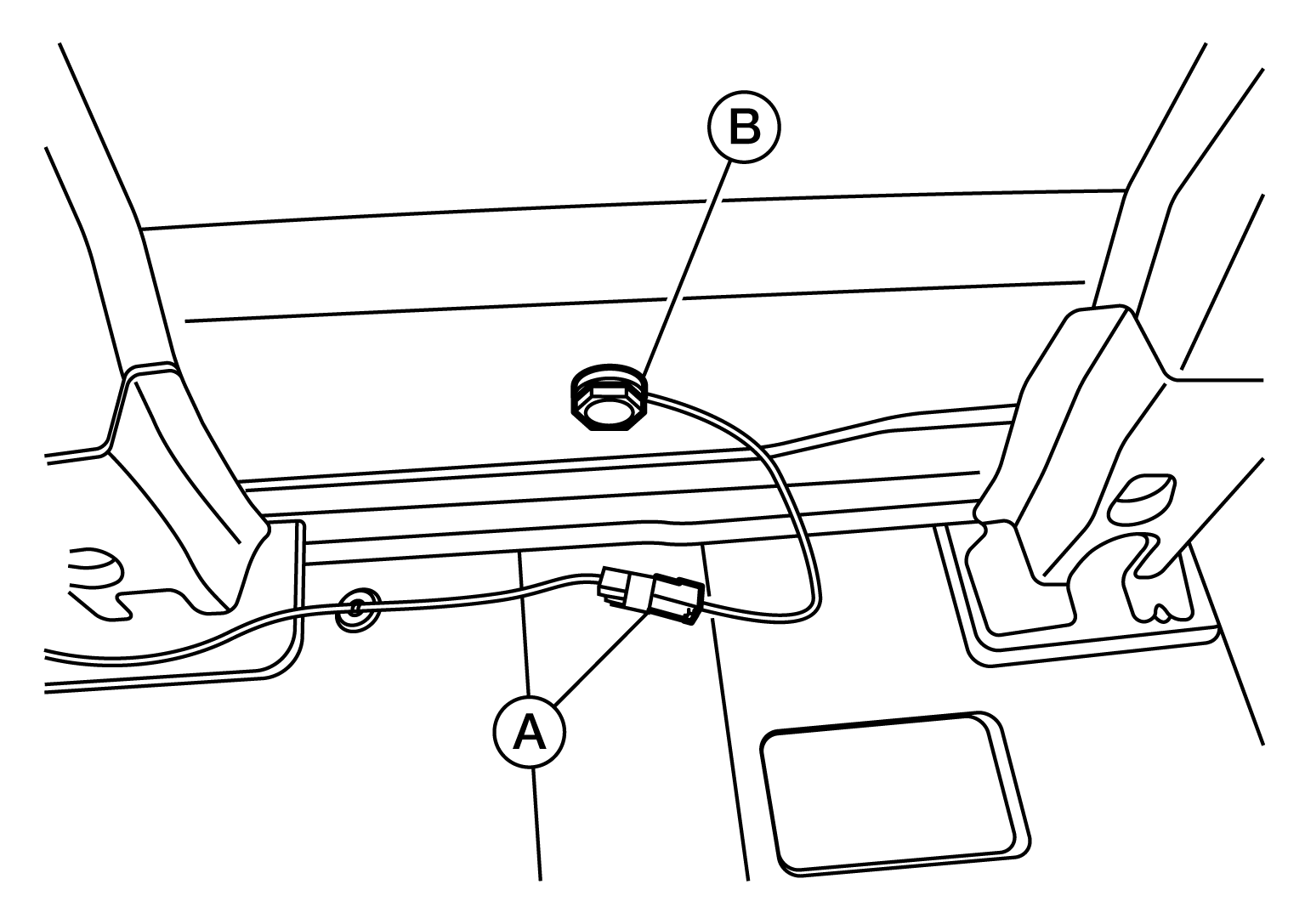

    GNSALNIA1272Z-272Courtesy of NISSAN NORTH AMERICA, INC.
  2. Disconnect the harness connector (A) from the satellite antenna.
  3. Remove the satellite antenna nut (B).
  4. Remove the satellite antenna.
