Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:
    • Before replacing audio unit, perform "ADDITIONAL SERVICE WHEN REPLACING AUDIO UNIT" to save or print current vehicle specification. For details, refer to Description .
  2. Remove cluster lid C. Refer to Removal and Installation .

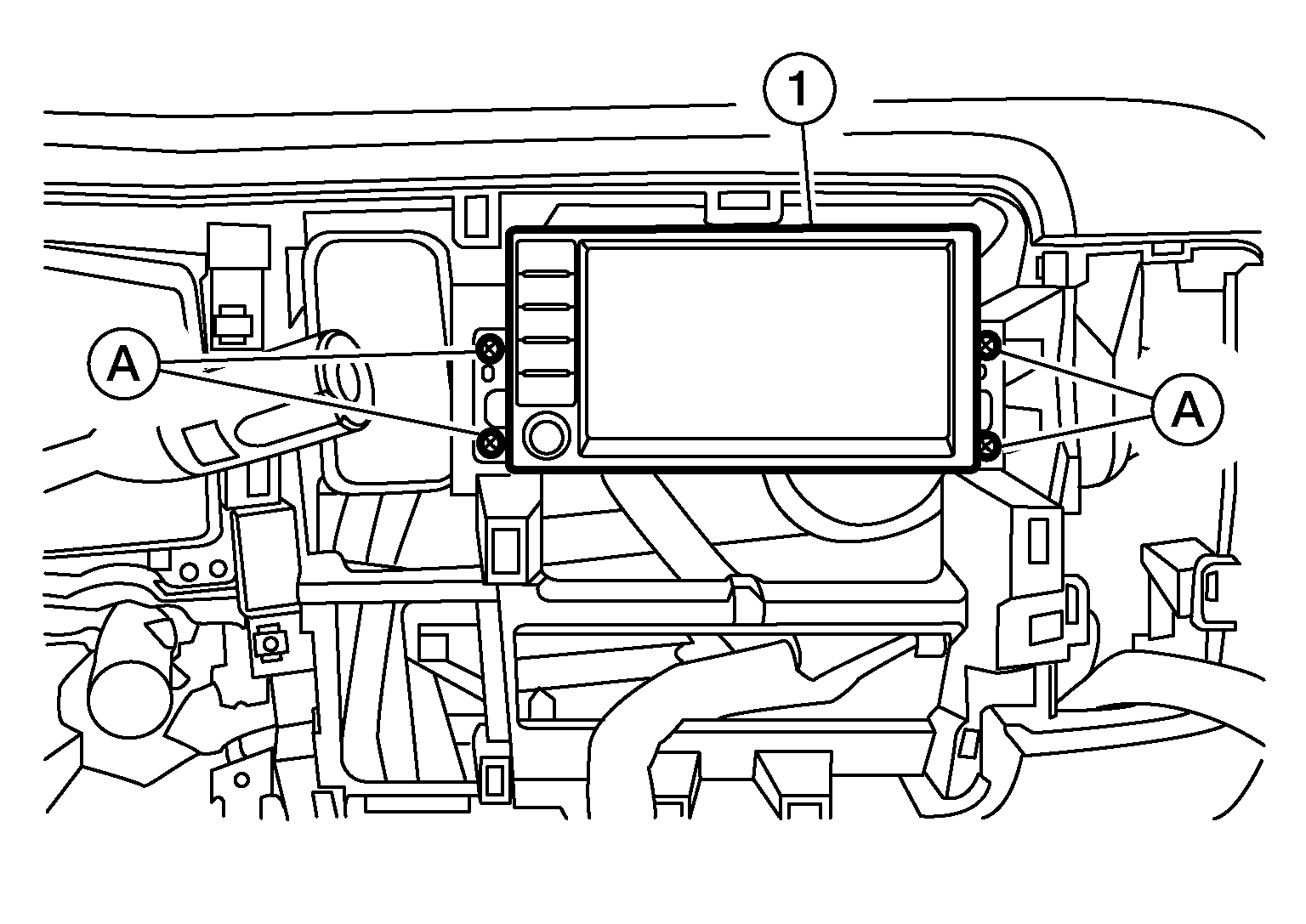

  3. Remove the audio unit screws (A).
    GNSAWNIA0220Z-220Courtesy of NISSAN NORTH AMERICA, INC.
  4. Pull the audio unit (1) out from the instrument panel and disconnect the harness connectors from audio unit.
  5. Remove the audio unit (1) from the instrument panel.

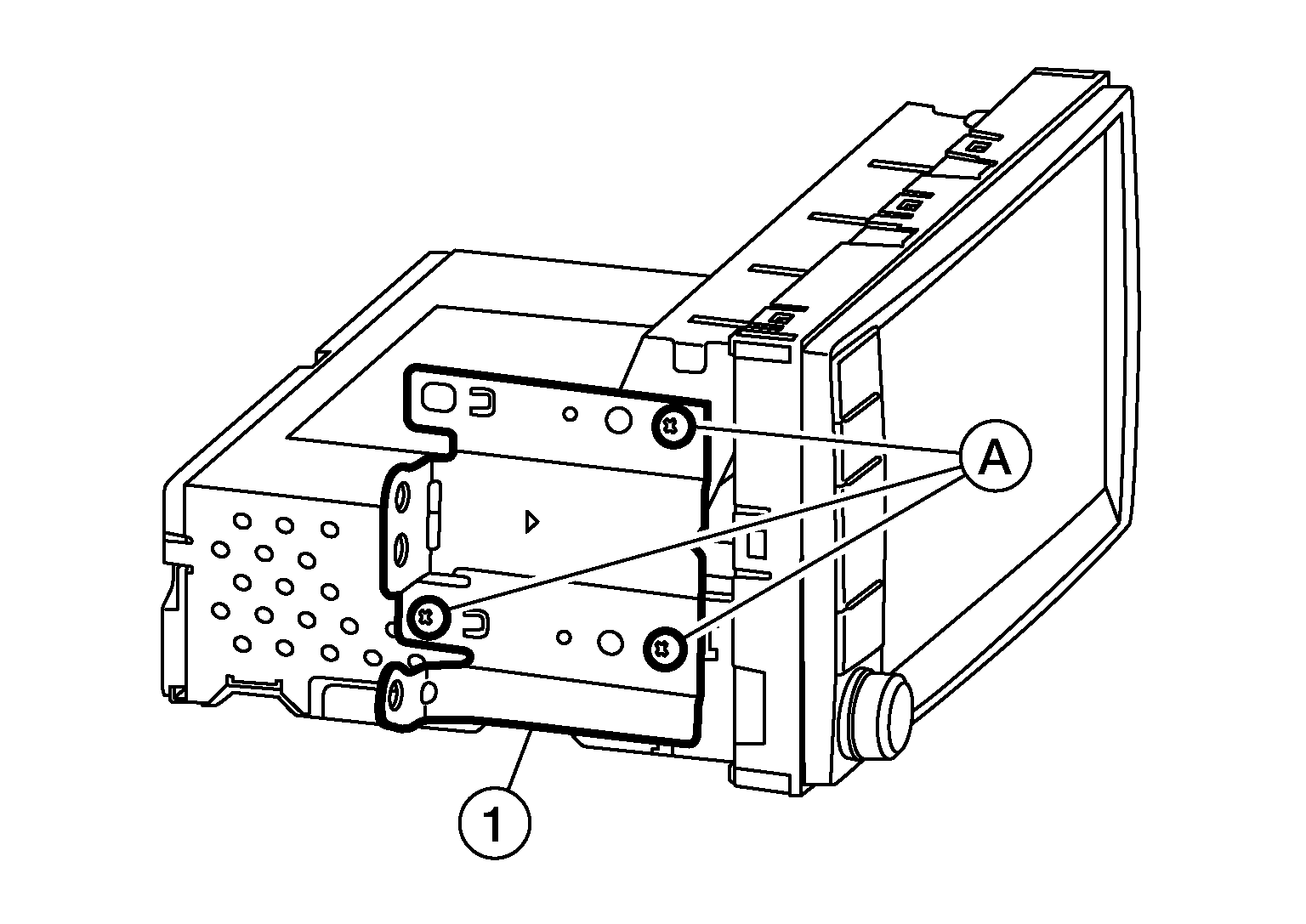

  6. Remove the audio unit bracket screws (A) and the audio unit bracket (1) from each side of the audio unit.
    GNSALNIA0251Z-251Courtesy of NISSAN NORTH AMERICA, INC.
