Location of Antenna

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

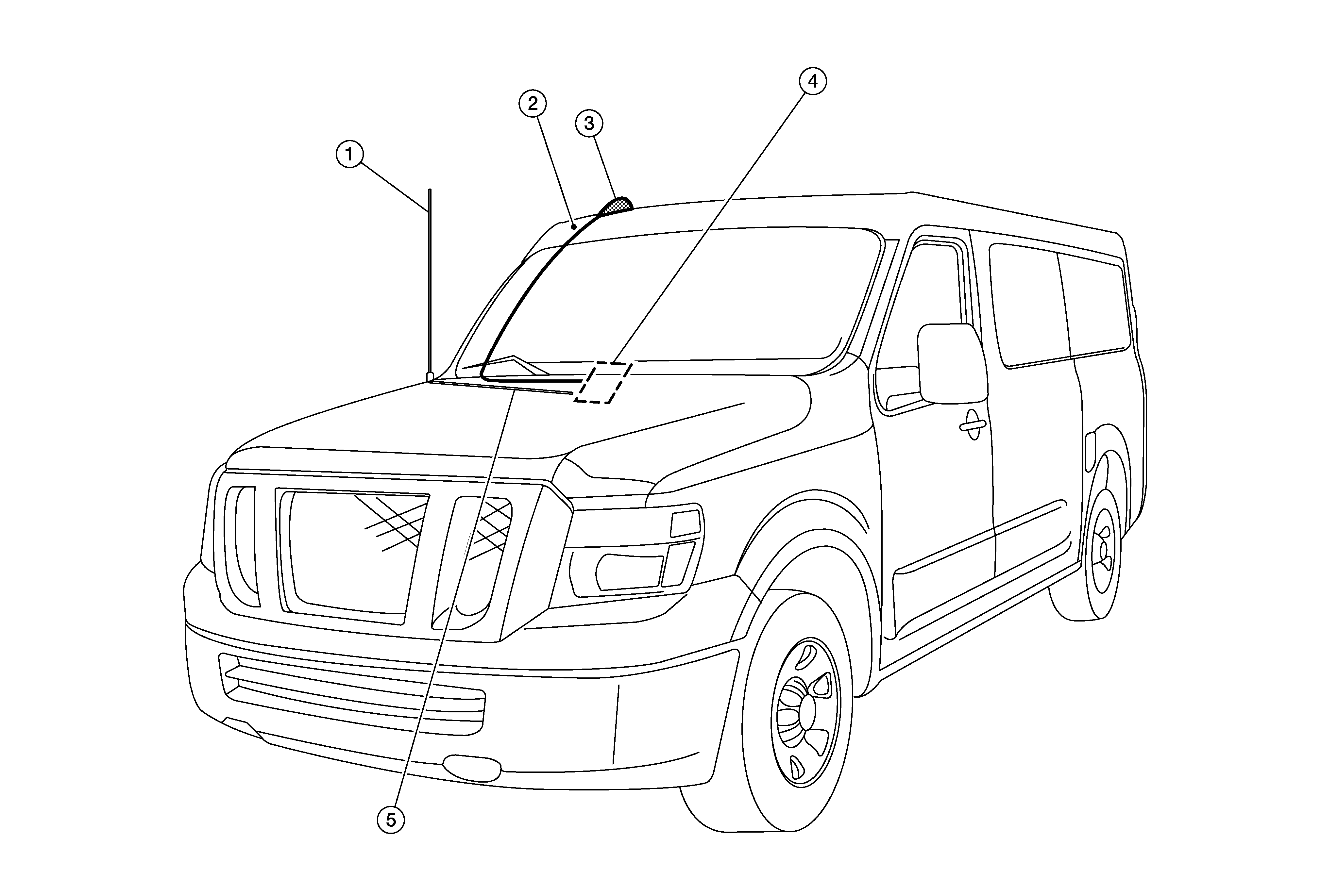

GNSAWNIA0036Z-036Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rod antenna

2.

Satellite antenna feeder

(if equipped)

3.

Satellite antenna

(if equipped)

4.

Audio unit

5.

Rod antenna feeder
