Wheel Bearing Inspection

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

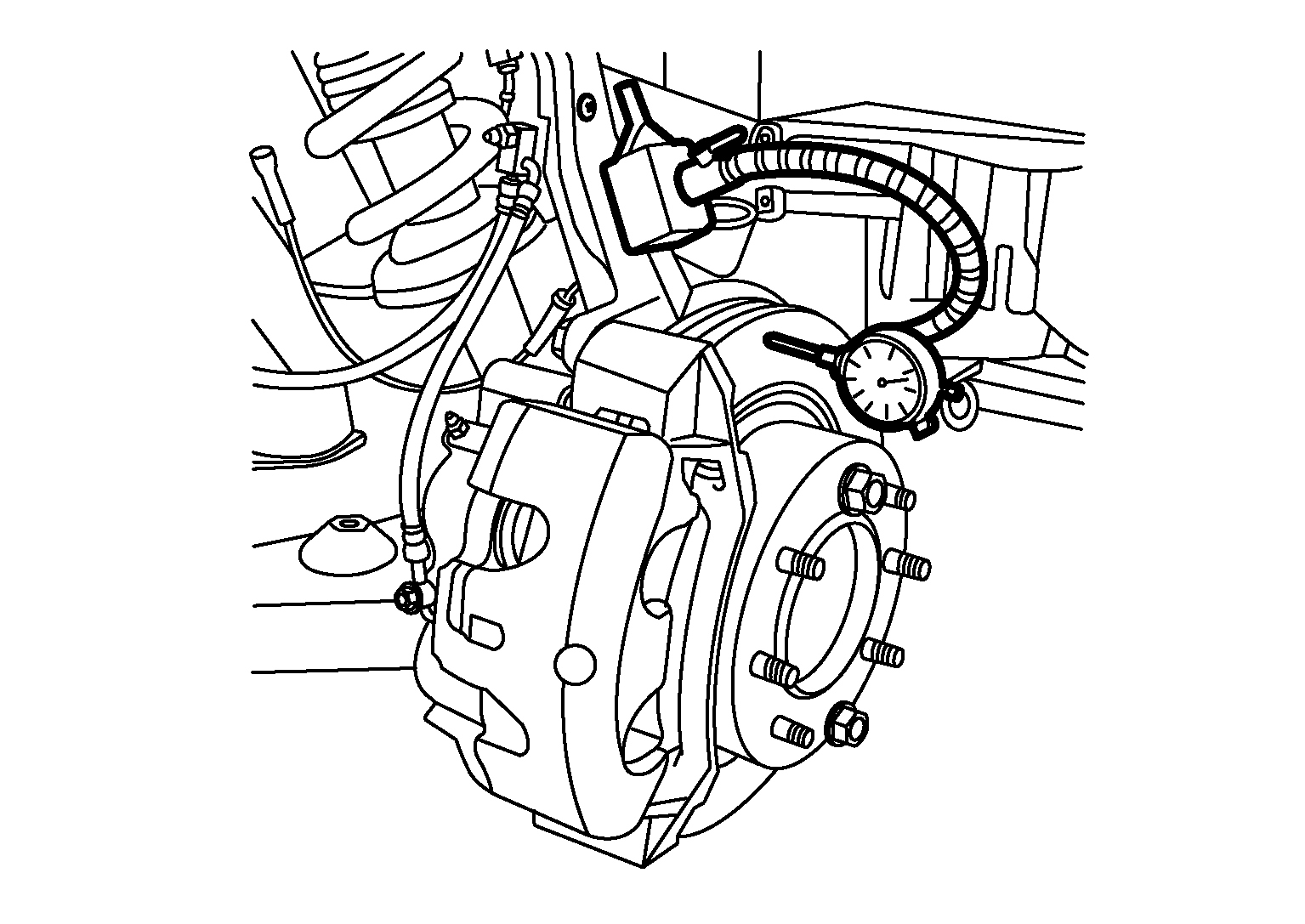

Attach the disc rotor securely to the wheel hub and move in the axial direction by hand. Use suitable tool as shown below, to measure the axial end play. Make sure there is no looseness of wheel bearing.

Courtesy of NISSAN NORTH AMERICA, INC.

Axial end play limit

: Refer to Wheel Bearing .

Rotate wheel hub and make sure there is no unusual noise or other irregular conditions. If there are any irregular conditions, replace wheel hub and bearing assembly.
