LH Bench Seat
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|

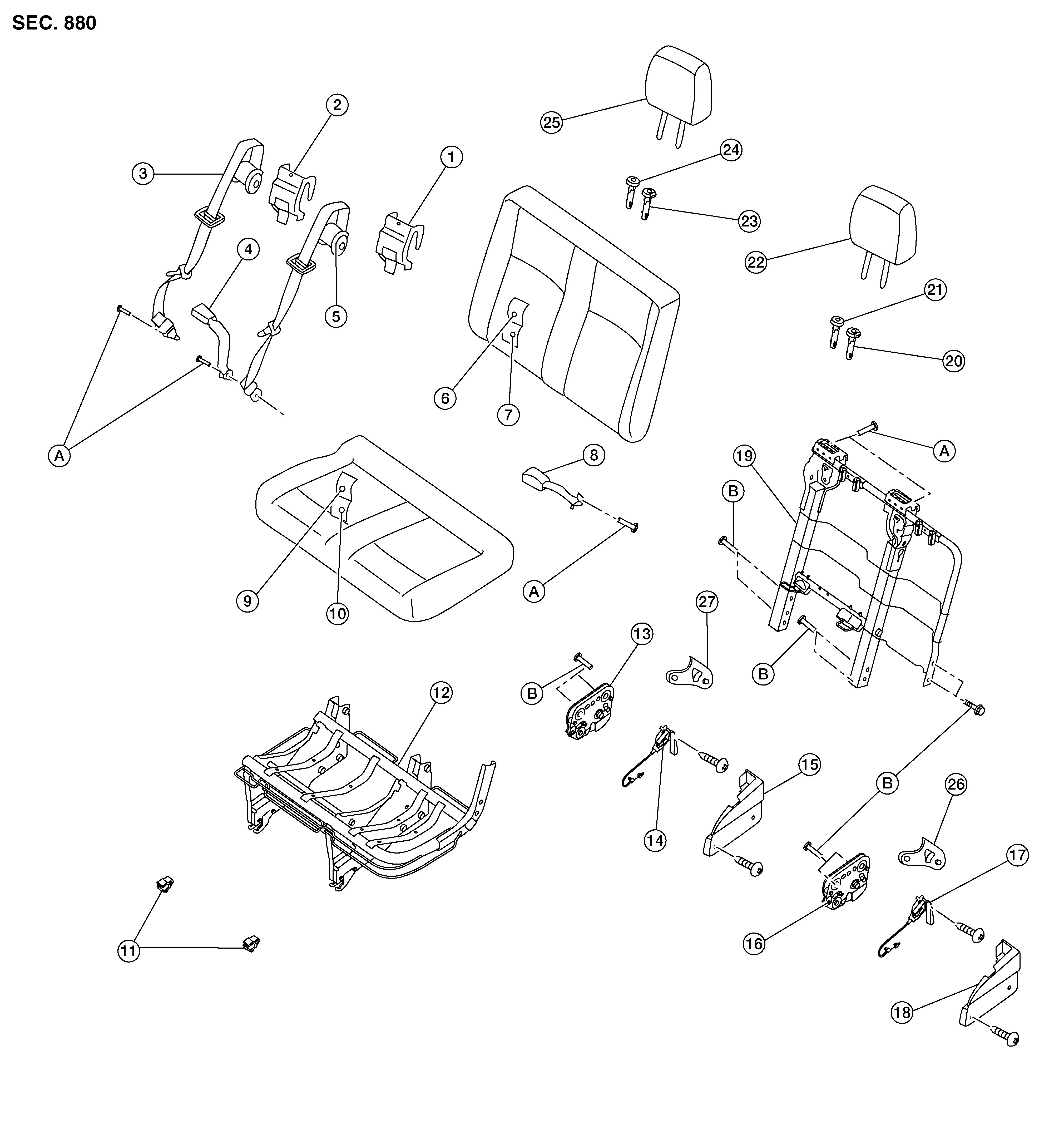

1. |
Seat belt retractor shield (LH) |
2. |
Seat belt retractor shield (RH) |
3. |
Seat belt retractor (RH) |
|
4. |
Seat belt buckle (RH) |
5. |
Seat belt retractor (LH) |
6. |
Seatback trim |
|
7. |
Seatback pad |
8. |
Seat belt buckle (LH) |
9. |
Seat cushion trim |
|
10. |
Seat cushion pad |
11. |
Rubber bumper |
12. |
Seat cushion frame |
|
13. |
Seat rear floor latch (RH) |
14. |
Seat rear floor latch release cable (RH) |
15. |
Seat rear floor latch (RH) |
|
16. |
Seat rear floor latch (LH) |
17. |
Seat rear floor latch cover (LH) |
18. |
Seat rear floor latch release cable (LH) |
|
19. |
Seatback frame |
20. |
Headrest holder LH locked |
21. |
Headrest holder LH free |
|
22. |
Headrest (LH) |
23. |
Headrest holder RH locked |
24. |
Headrest holder RH free |
|
25. |
Headrest (RH) |
26. |
Roller wheel (LH) |
27. |
Roller wheel (RH) |
|
A. |
Refer to Removal and Installation |
B. |
Bolt |
