Seat Cushion

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Disassembly

  1. Remove seat belt buckle anchor bolt. Refer to Removal and Installation .

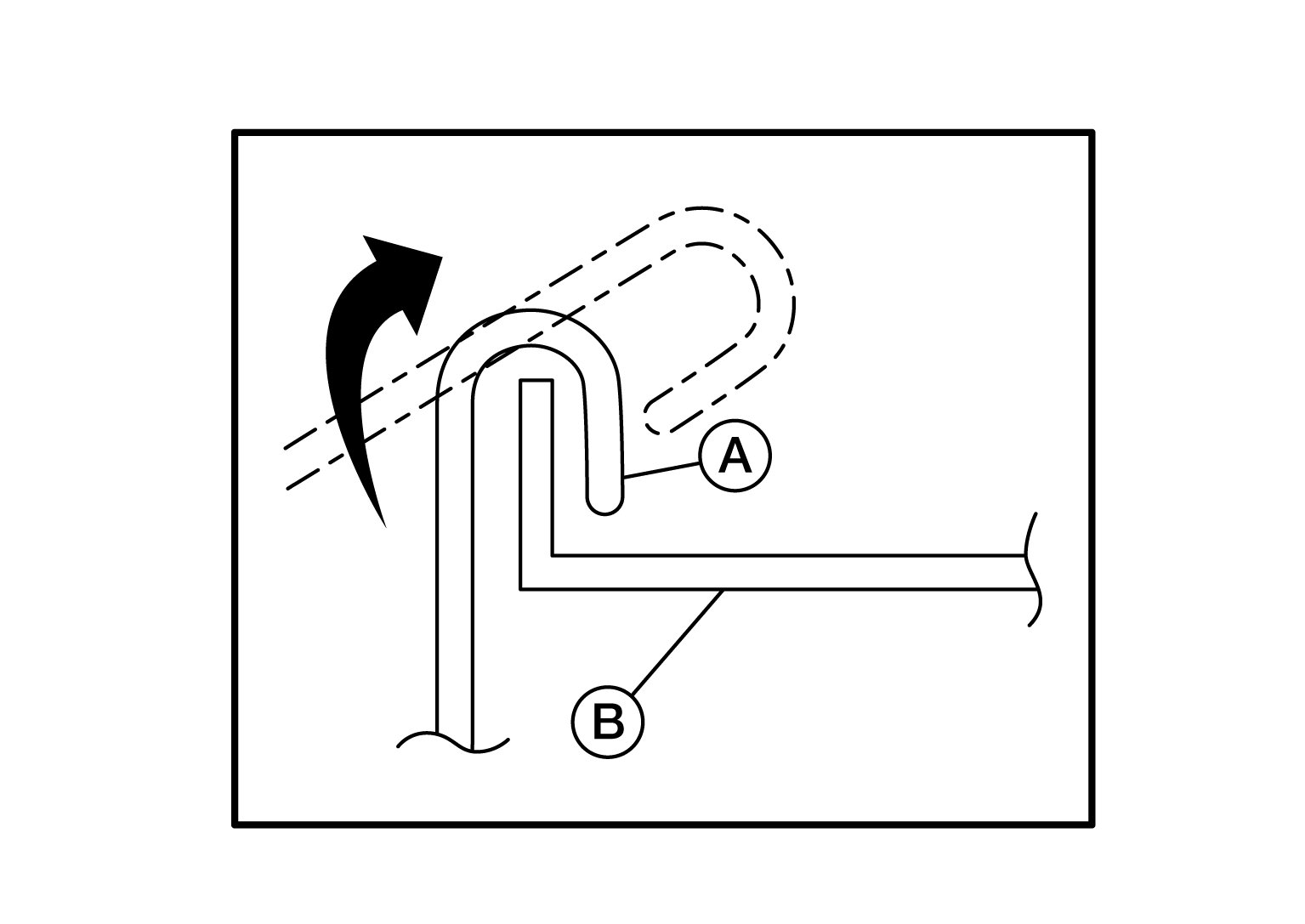

  2. Release the 11 J-clips (A) holding the seat trim to the seat frame (B).
    GNSDB113147Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the seat cushion trim and pad as an assembly from the seat frame.
  4. Remove the hog rings and separate the seat cushion trim and seat cushion pad.

Assembly

Assembly is in the reverse order of disassembly.

CAUTION:
  • Make sure hog rings are correctly fastened around both the seat trim and pad wires.
  • Replace any deformed or damaged hog rings.
  • Make sure any old hog ring pieces are removed from seat.
NOTE:
  • Install new hog rings on the seat trim in their original positions.

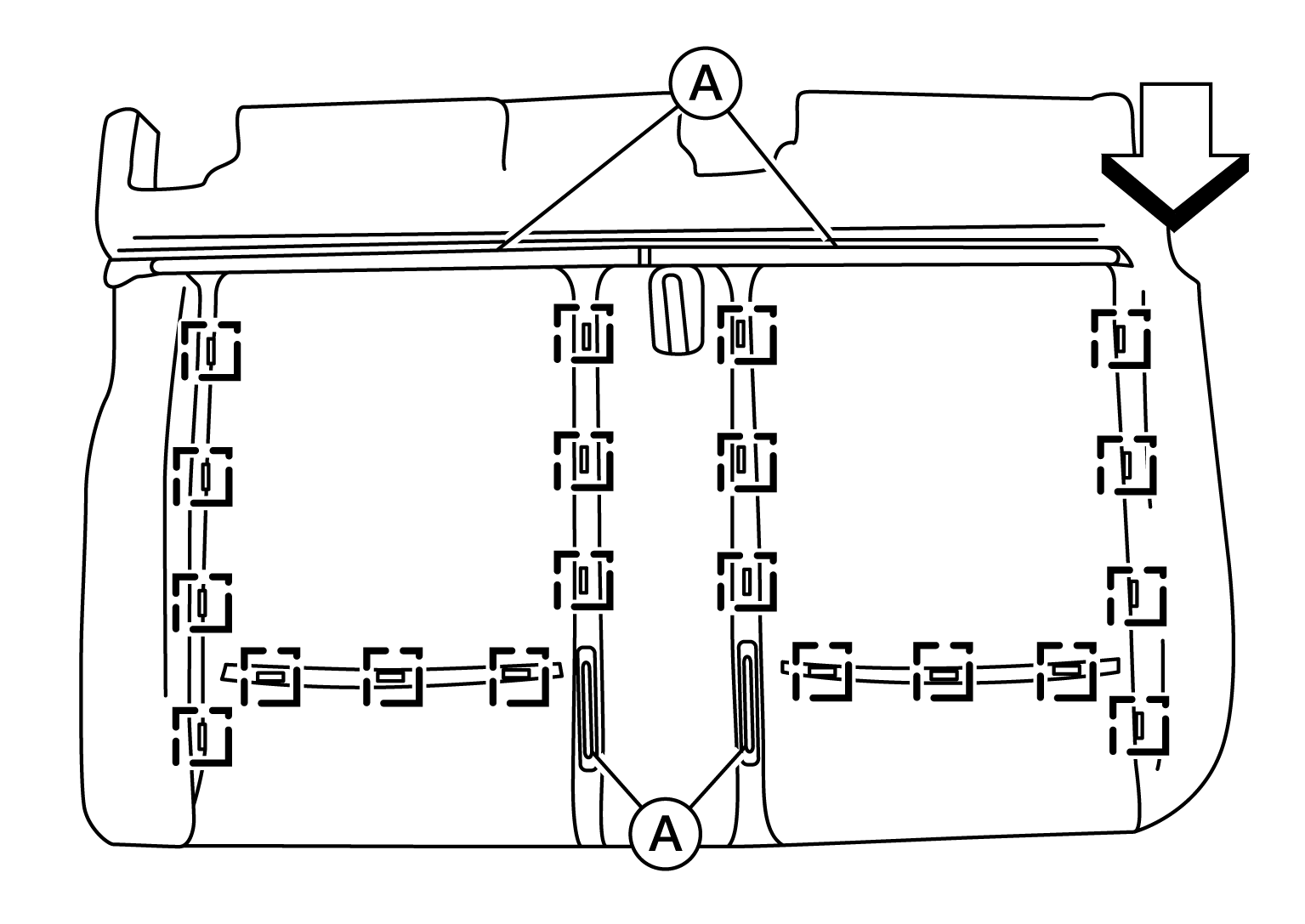

    GNSDB113652Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

    SYMBOL : Hog rings

  • Use only one hog ring in each designated location.
  • Be sure hook fastener (A) is pressed into place after seatback trim is assembled.
