Seat Frame

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Disassembly

  1. Remove the seat belt retractors (LH/RH) from the seatback frame. Refer to Removal and Installation .

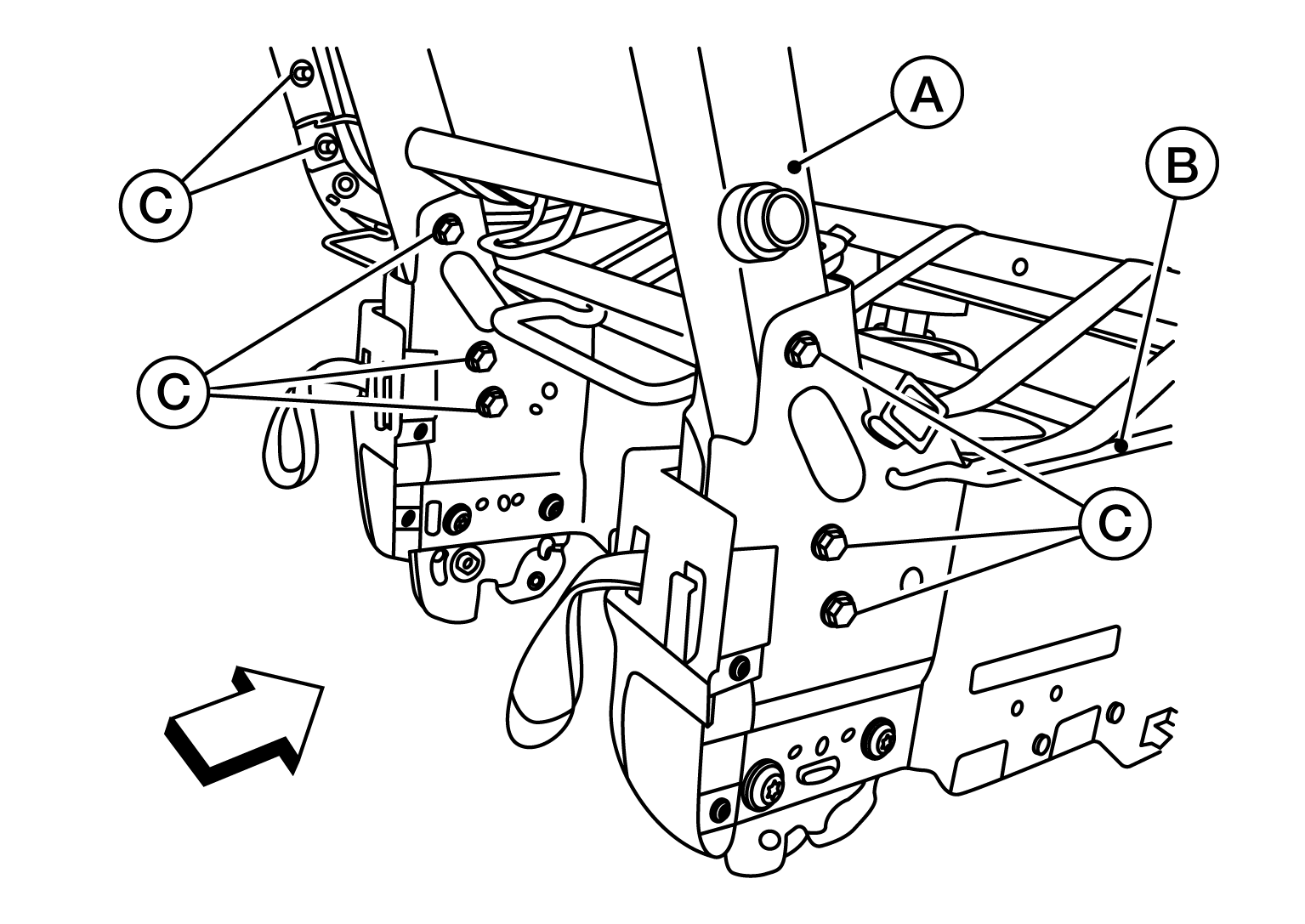

  2. Remove the seatback bolts (C) and separate the seatback frame (A) from the seat cushion frame (B).
    GNSALJIA0750Z-750Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  3. Remove the seat rear floor latch cover screws and the seat rear floor latch cover.

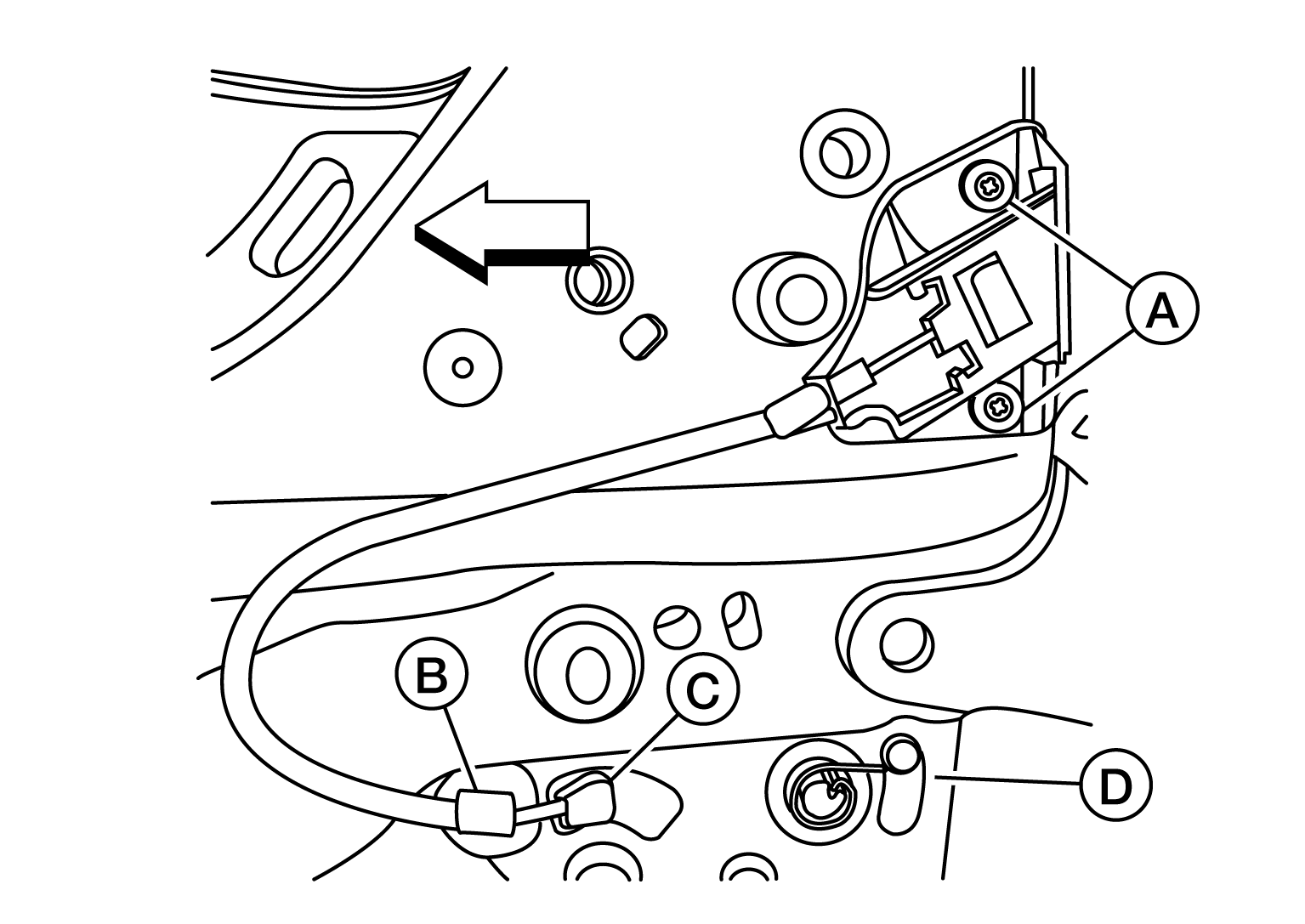

  4. Release the clip (B) and remove the seat rear floor latch release cable LH screws (A) and remove the seat rear floor latch release cable LH end (C) from the latch (D).
    GNSDB123292Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Front

  5. Release the clip and remove the seat rear floor latch release cable RH screws and the seat rear floor latch release cable RH end from the latch.
  6. Remove the cup holder screws and each of the cup holders (LH/RH).
  7. Remove the seat rear floor latch (LH) bolts and the seat rear floor latch (LH) from the seat cushion frame.
  8. Remove the seat rear floor latch (RH) bolts and the seat rear floor latch (RH) from the seat cushion frame.

Assembly

Assembly is in the reverse order of disassembly.
