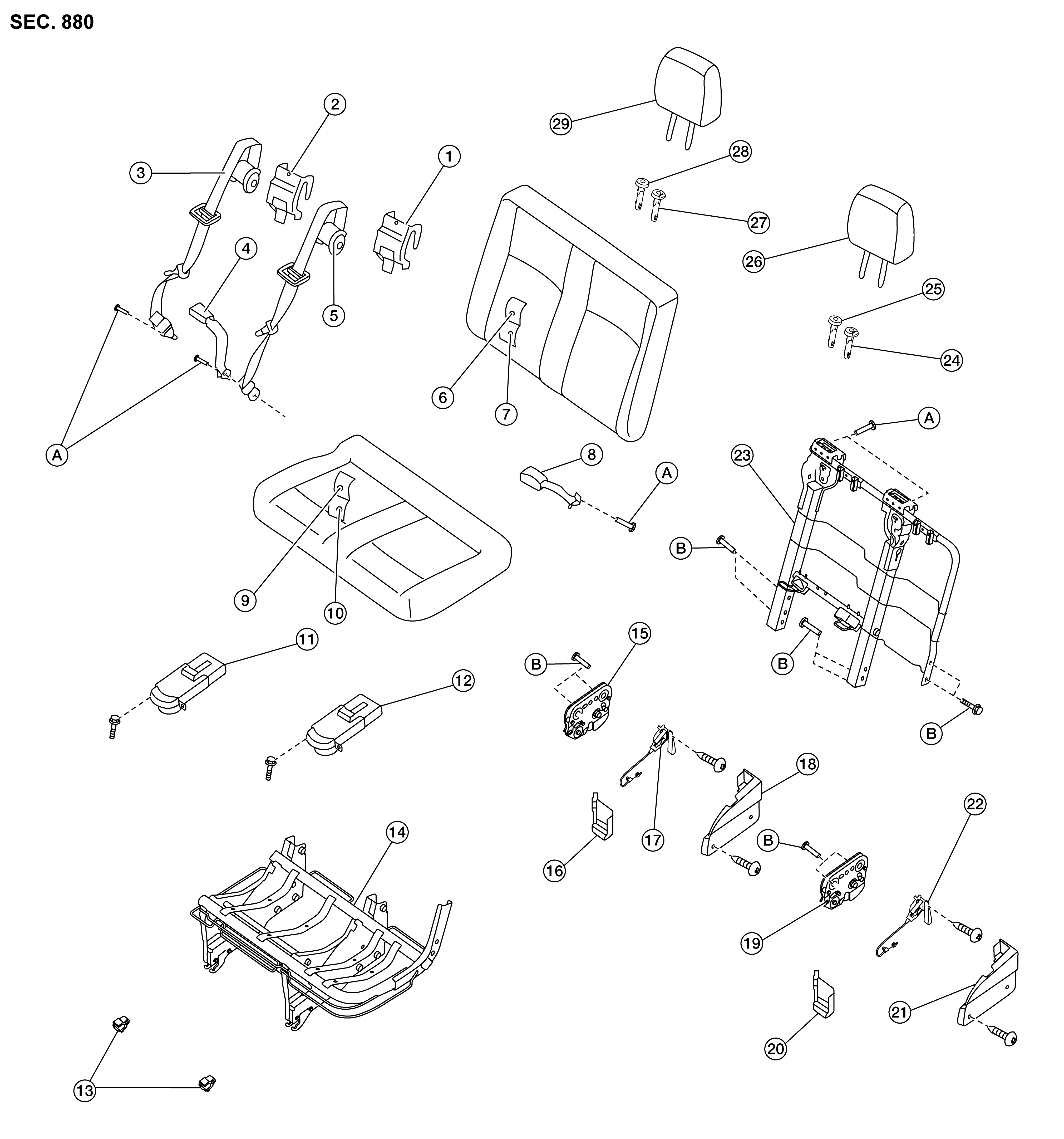

LH Bench Seat

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt retractor shield (LH)	2.	Seat belt retractor shield (RH)	3.	Seat belt retractor (RH)
4.	Seat belt buckle (RH)	5.	Seat belt retractor (LH)	6.	Seatback trim
7.	Seatback pad	8.	Seat belt buckle (LH)	9.	Seat cushion trim
10.	Seat cushion pad	11.	Cup holder (RH)	12.	Cup holder (LH)
13.	Rubber bumper	14.	Seat cushion frame	15.	Seat rear floor latch (RH)
16.	Seat leg cover (RH)	17.	Seat rear floor latch release cable (RH)	18.	Seat rear floor latch cover (RH)
19.	Seat rear floor latch (LH)	20.	Seat leg cover (LH)	21.	Seat rear floor latch cover (LH)
22.	Seat rear floor latch release cable (LH)	23.	Seatback frame	24.	Headrest holder LH locked
25.	Headrest holder LH free	26.	Headrest (LH)	27.	Headrest holder RH locked
28.	Headrest holder RH free	29.	Headrest (RH)	A.	Refer to Removal and Installation
