Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seats. Refer to Removal and Installation  (SECOND ROW SEATS), Removal and Installation  (THIRD ROW SEATS) and Removal and Installation  (FOURTH ROW SEATS).
  2. Remove the rear floor carpet. Refer to Removal and Installation - Passenger Van .
  3. Remove the rear seat rail bolts and the rear seat rails.

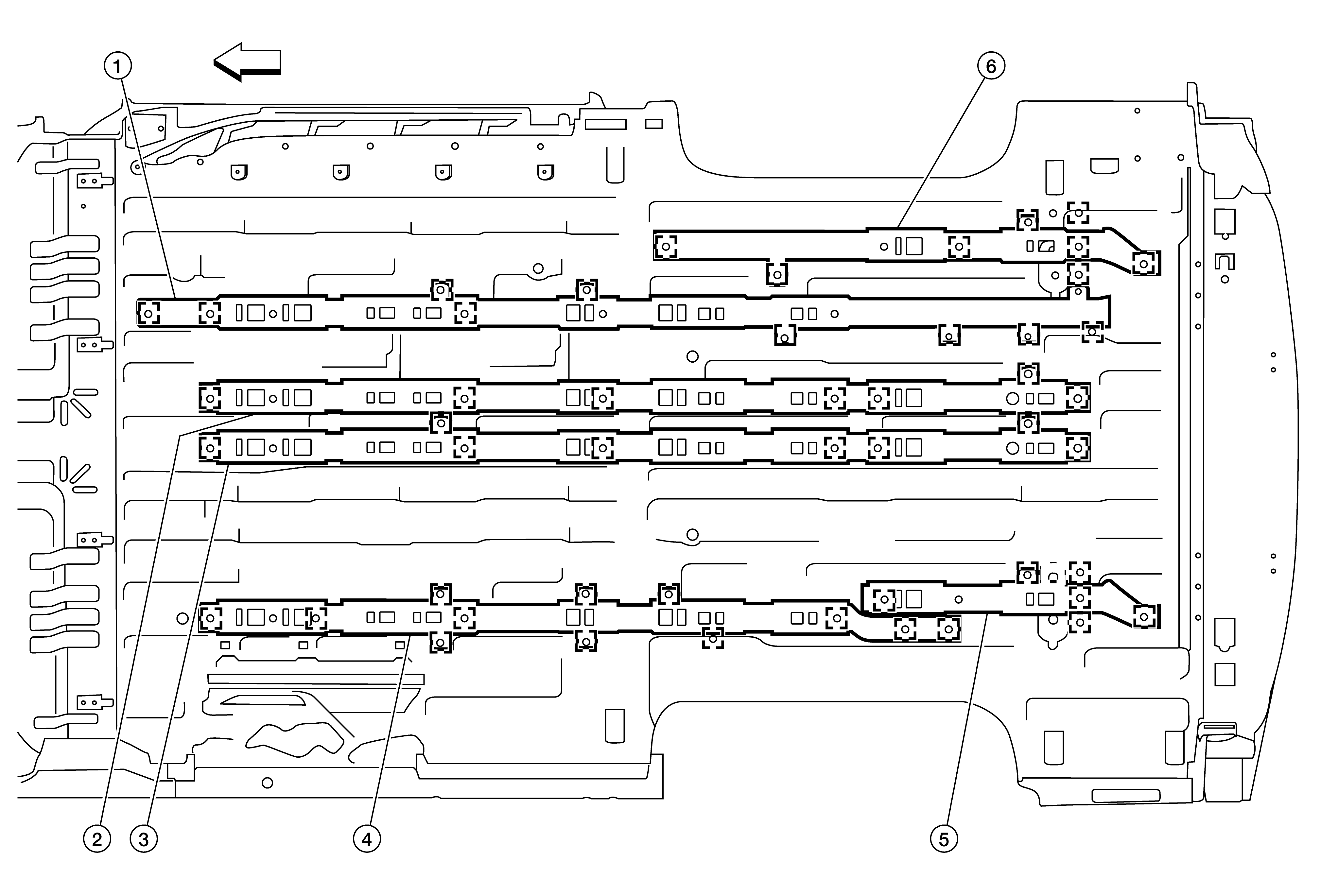

    GNSDB115969Courtesy of NISSAN NORTH AMERICA, INC.

    1.

    Rear seat rail No. 1

    2.

    Rear seat rail No. 2

    3.

    Rear seat rail No. 3

    4.

    Rear seat rail No. 4

    5.

    Rear seat rail No. 5

    6.

    Rear seat rail No. 6

    SYMBOL

    Bolts

    SYMBOL

    Front
