Removal and Installation: Installation
WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
NOTE:

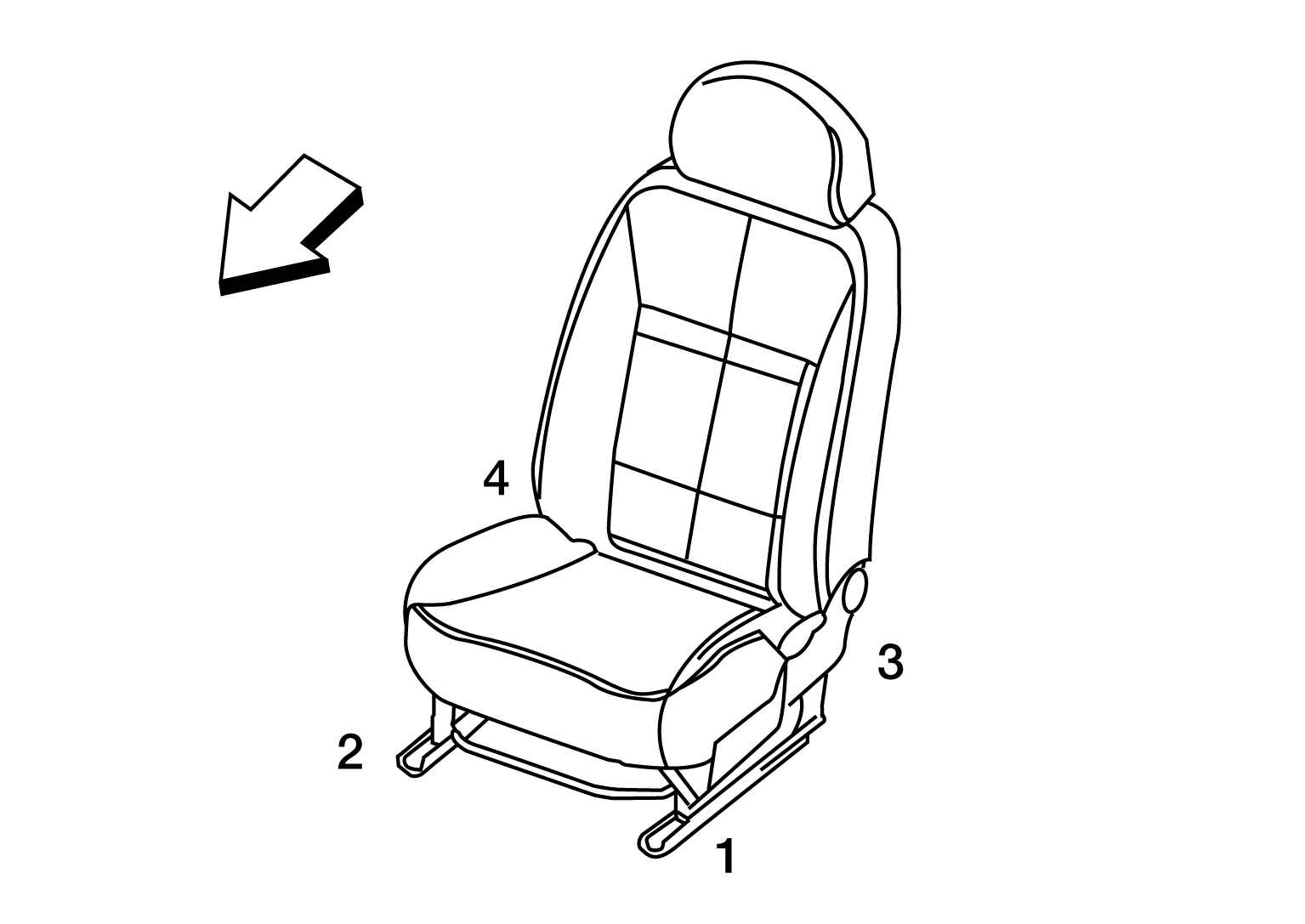

- When installing the LH front seat, tighten the bolts in the order shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
: Front
|
LH front seat bolt torque
|
: 45 N.m (4.6 kg-m, 33 lb-ft)
|

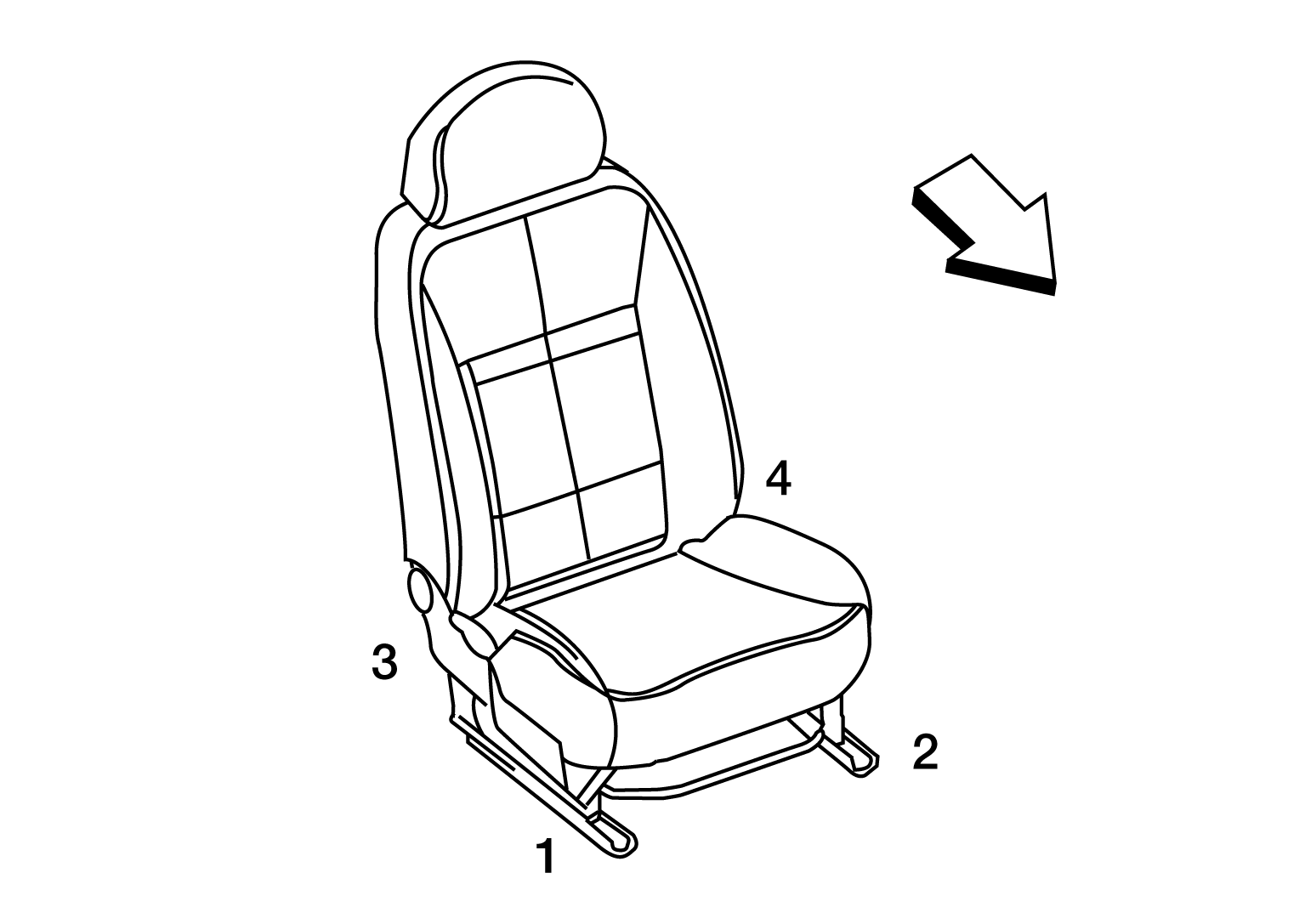

- When installing the RH front seat, tighten the bolts in the order shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
: Front
|
RH front seat bolt torque
|
: 45 N.m (4.6 kg-m, 33 lb-ft)
|
